3C-46 - FUEL SYSTEMS 90-824052R3 JUNE 2002

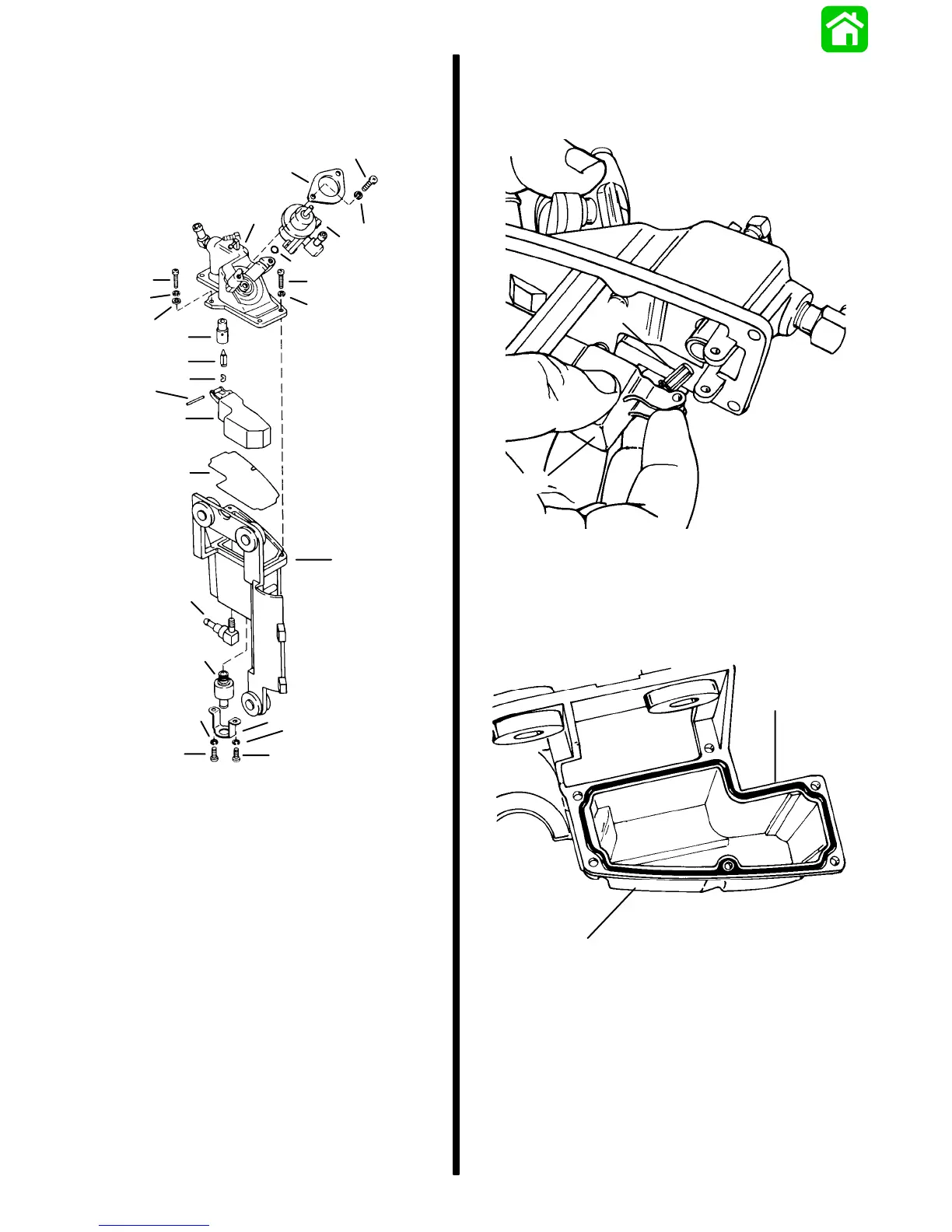

Vapor Separator Component
Reassembly
1. Assemble components as shown.
a
b
c
d
e
u
f
g
f
g
h
i
j
k
l
m
n
o
p
q
s
r
s
t
t
a - Screw
b - Lock Washer
c - Plate and Grommet
d - Pressure Regulator
e - Vapor Separator Cover
f - Screw
g - Lock Washer
h - Flat Washer
i - Seat
j - Needle
k - Retainer
l - Pin
m - Float
n - Seal
o - Bracket
p - Check Valve
q - Fuel Check Valve
r - Bracket
s - Lock Washer
t - Screw
u - O-Ring
Vapor Separator Float Installation
1. If removed, install needle on float and install float
assembly.
51795
a
b
a - Float
b - Needle
2. Install new O-ring in housing.
b
a
51791
a - O-Ring
b - Housing
To Next Page
