1B-6 - IMPORTANT INFORMATION 90-824052R3 JUNE 2002
Propeller Replacement
Removal
WARNING
Disconnect high tension leads from spark plugs
and remove spark plugs from engine before re-
moving propeller from gear housing to prevent
accidental starting of outboard.
1. Disconnect high tension leads from spark plugs
and remove spark plugs from engine.
2. Shift engine into neutral position.
3. Tilt engine to full up position and engage tilt lock
lever.
4. Bend tabs of propeller tab washer away from
thrust hub (rear), then remove propeller locknut,
tab washer, thrust hub (rear), propeller and thrust
hub (forward) from propeller shaft.
51866
a
b
51871
c
d
d
e
f

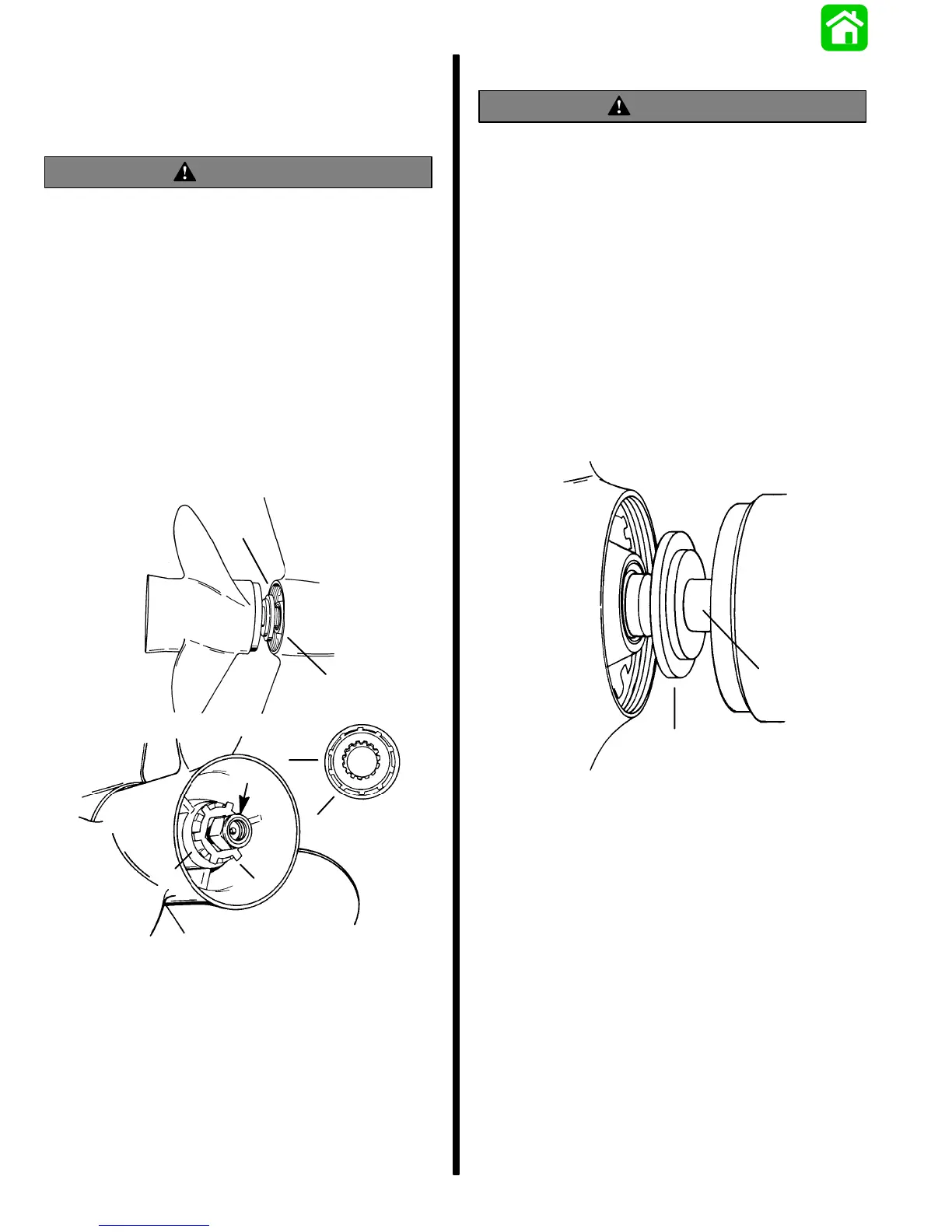

a - Thrust Hub (Forward)
b - Propeller Shaft
c - Continuity Washer (If Equipped)
d - Rear Thrust Hub
e - Tab Washer
f - Propeller Nut
Installation
WARNING
When installing or removing propeller, verify re-
mote control is in NEUTRAL position and that key
switch is “OFF.” Place a block of wood between
the anti-ventilation plate and propeller to prevent
accidental engine starting and to protect hands
from propeller blades while removing propeller
nut.
1. To aid in future removal of the propeller, coat the
propeller shaft splines with one of the following
Quicksilver lubricants:
– Anti-Corrosion Grease
– 2-4-C w/Teflon
– Special Lubricant 101
2. Place forward thrust hub onto propeller shaft.
3. Align splines and slide propeller onto shaft.
22750
a
b
a - Forward Thrust Hub
b - Propeller Shaft
To Next Page
