90-824052R3 JUNE 2002 MID-SECTION - 5B-1

Power Trim Specifications

NOTE: Maximum acceptable amount of leak down in

24 hours is 1 in. (25.4 mm)

Test Reading

Trim “UP” 1300 PSI (91kg/cm

)

Maximum Pressure

Trim “DOWN” 500 PSI (35kg/cm

)

Minimum Pressure

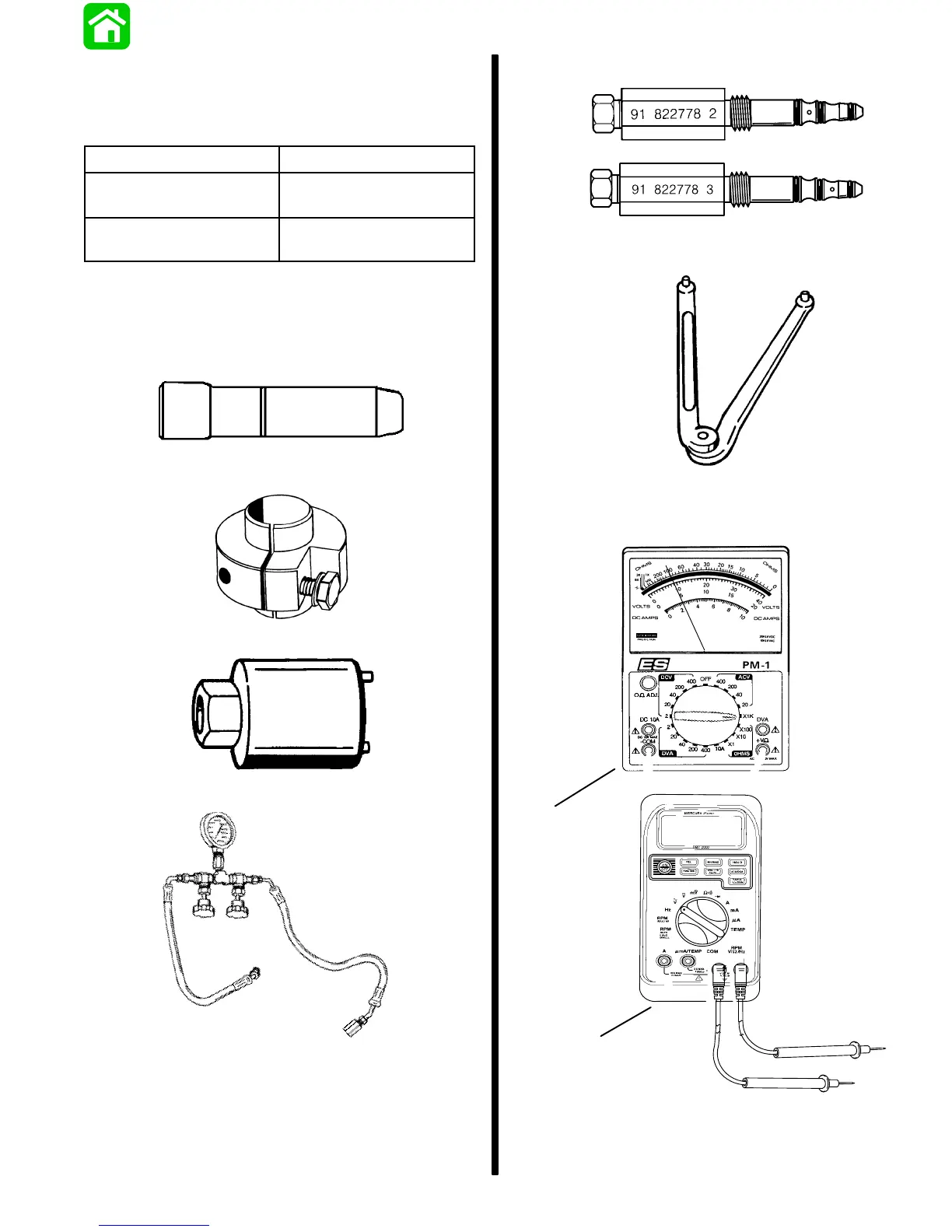

Special Tools

1. Alignment Tool 91-11230

17238

2. Trim Rod Removal Tool 91-44486A1

51337

3. Trim Rod Guide Removal Tool 91-44487A1

51337

4. Power Trim Test Gauge Kit 91-52915A6

73835

5. Adaptor Fitting 91-82278A2 and 91-82278A3

54458

6. Spanner Wrench 91-74951

51337

7. Multi-Meter DVA Tester 91-99750A1 or

DMT 2000 Digital Tachometer Multi-meter

91-854009A1

a - Multi-Meter DVA Tester 91-99750A1

b - DMT 2000 Digital Tachometer Multi-meter 91-854009A1
