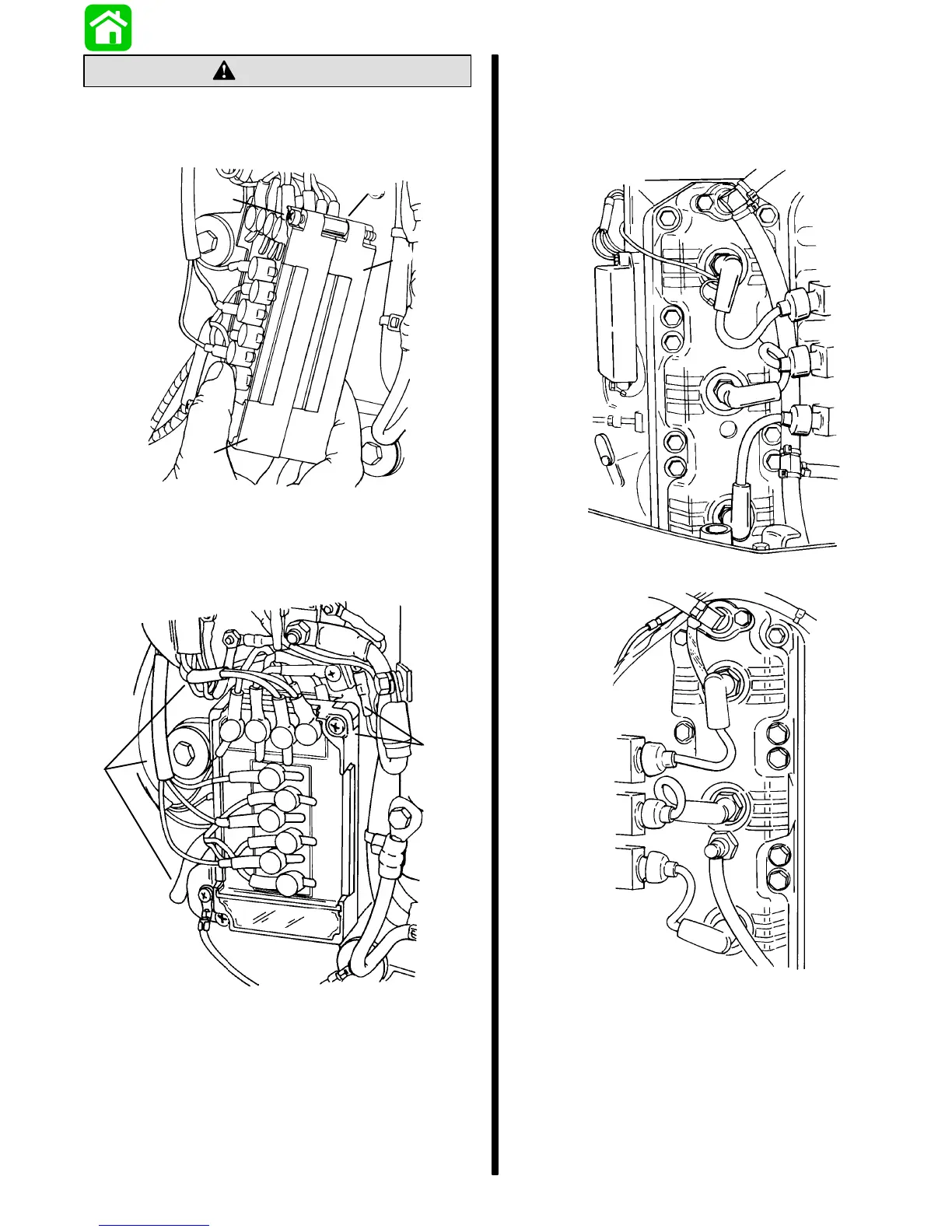

90-824052R3 JUNE 2002 ELECTRICAL - 2A-27

CAUTION

Switch boxes must be grounded to engine before

cranking engine, or switch boxes will be

damaged.

51844

a - Switch Box Mounting Screws (2)

b - Round Metal Spacer (2)

c - Outer Switch Box

d - Inner Switch Box

11652

a - Wires with Yellow Sleeves Are Connected to Outer Switch

Box

b - Switch Boxes MUST BE Grounded to Engine

SPARK PLUG WIRE ROUTING (PRODUCTION

OUTBOARDS)

To avoid the possibility of cross-firing occurring

between spark plug high tension leads, it is

recommended that wiring be routed as shown:

51840

Plug Wire Routing - Port Side

51841

Plug Wire Routing - Starboard Side
