90-824052R3 JUNE 2002 ELECTRICAL - 2D-1

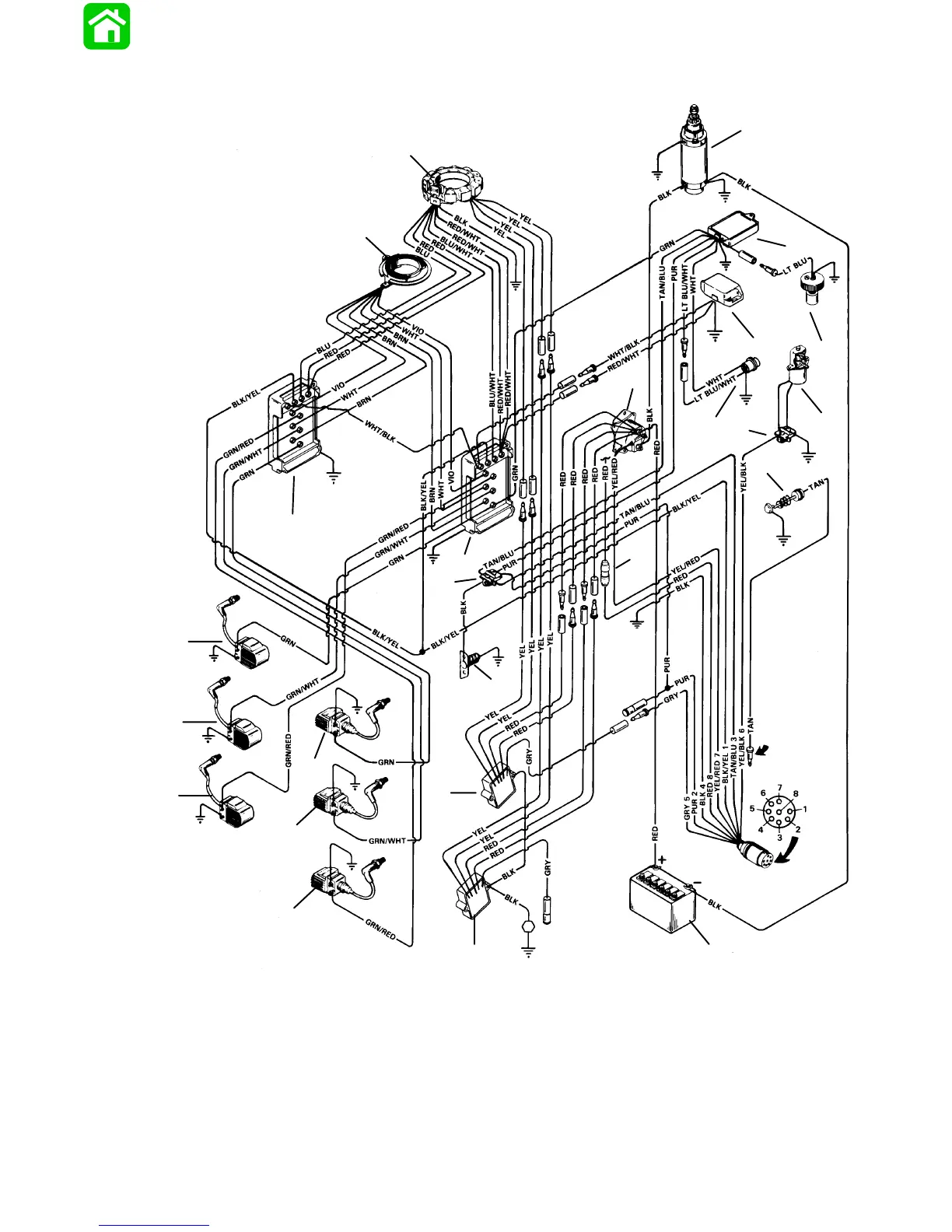

Wiring Diagram 135/150

BLK = BLACK

BLU = BLUE

BRN = BROWN

GRY = GRAY

GRN = GREEN

PUR = PURPLE

RED = RED

TAN = TAN

VIO = VIOLET

WHT = WHITE

YEL = YELLOW

1 - 40 Ampere Stator

2 - Starter

3 - Lubalert

4 - Oil Tank Cap

5 - Idle Stabilizer

6 - Rotational Sensor

7 - Enrichment Valve

8 - Temperature Gauge Sender

9 - Control Box Instrument Connector

10- Engine Harness

11- 12V Battery

12- Starter Solenoid

13- Outer Switch Box

14- Terminal Block

15- Water Temperature Switch

16- Voltage Regulator

17- Coil # 1

18- Coil # 3

19- Coil # 5

20- Coil # 6

21- Coil # 4

22- Coil # 2

23- Inner Switch Box

24- Trigger

25- 20 Ampere Fuse
