Required Side Mount
Remote Control or Ignition
Key Switch Assembly
Boats Equipped with Side Mount
Remote Control

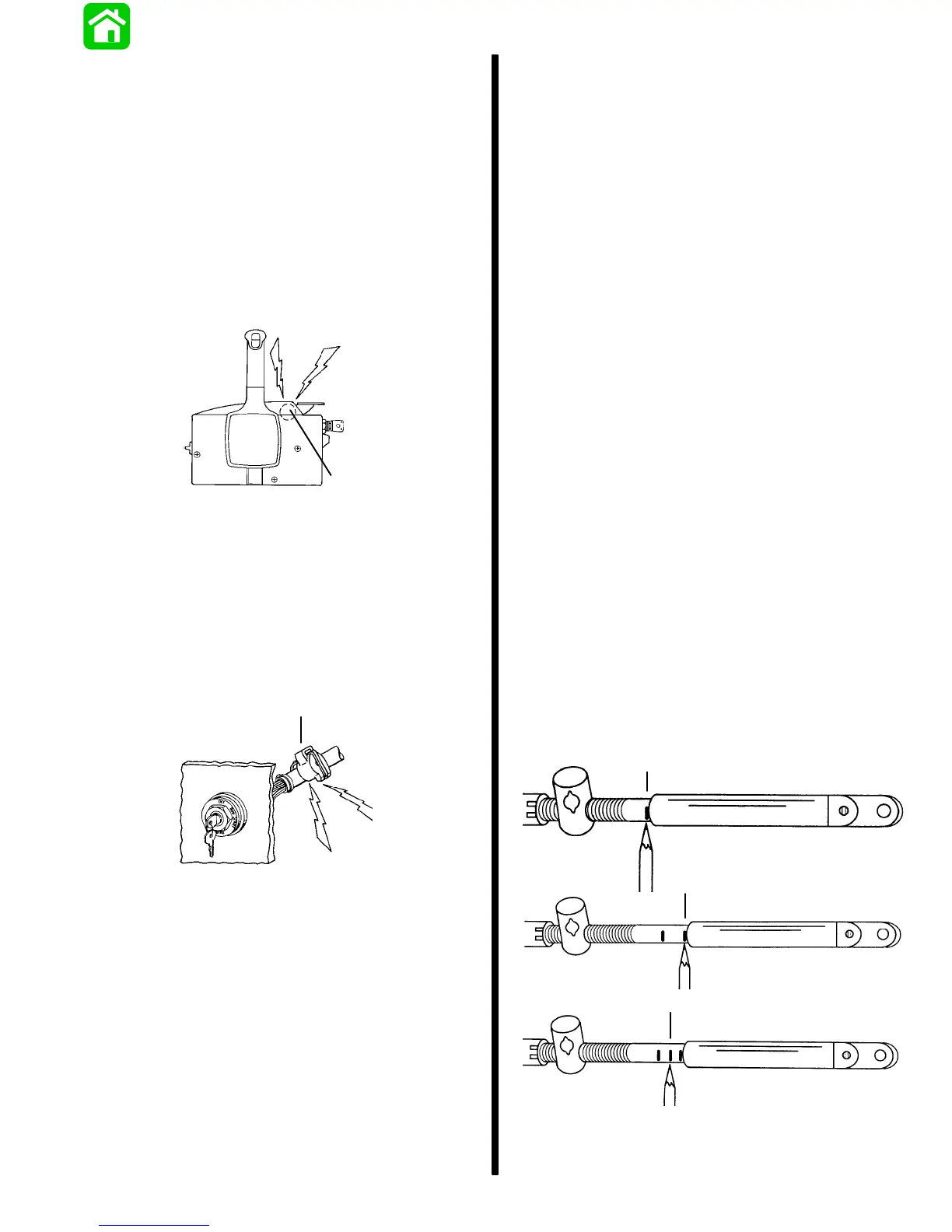

A Quicksilver Commander 2000 series Side Mount
Remote Control equipped with a warning horn must
be used with this outboard. This warning horn is nec-
essary for the engine warning system.
a
a -Warning Horn
Boats Equipped with Panel or
Console Mount Remote Control
A Quicksilver Ignition Key/Choke Assembly
equipped with a warning horn must be used with this
engine. This warning horn is necessary for the
engine warning system.
a
a - Warning Horn
Shift and Throttle Cable
Installation to the Outboard
Shift Cable Installation
1. Install the shift cable to the remote control. Refer
to installation instructions included with the
remote control.
2. Before installing the shift cable to the engine, lo-
cate the center point of the slack or lost motion
that exists in the remote control and shift cable as
follows.
NOTE: On counter rotation outboards, the location of
marks “a” and “b” below on the shift cable will be
reversed.
a. Move the remote control handle into forward
and advance the handle to the full speed
position. Slowly return the handle back to the
neutral detent position. Place a mark on the
shift cable against the cable end guide at
location (a).
b. Move the remote control handle into reverse
and advance the handle to the full speed
position. Slowly return the handle back to the
neutral detent position. Place a mark on the
shift cable against the cable end guide at
location (b).
c. Make a center mark (c) on the shift cable,
midway between marks (“a” and “b”). Align
the cable end guide against this center mark
(c) when installing cable to the engine.
a
b
c
