2C-4 - ELECTRICAL 90-824052R3 JUNE 2002

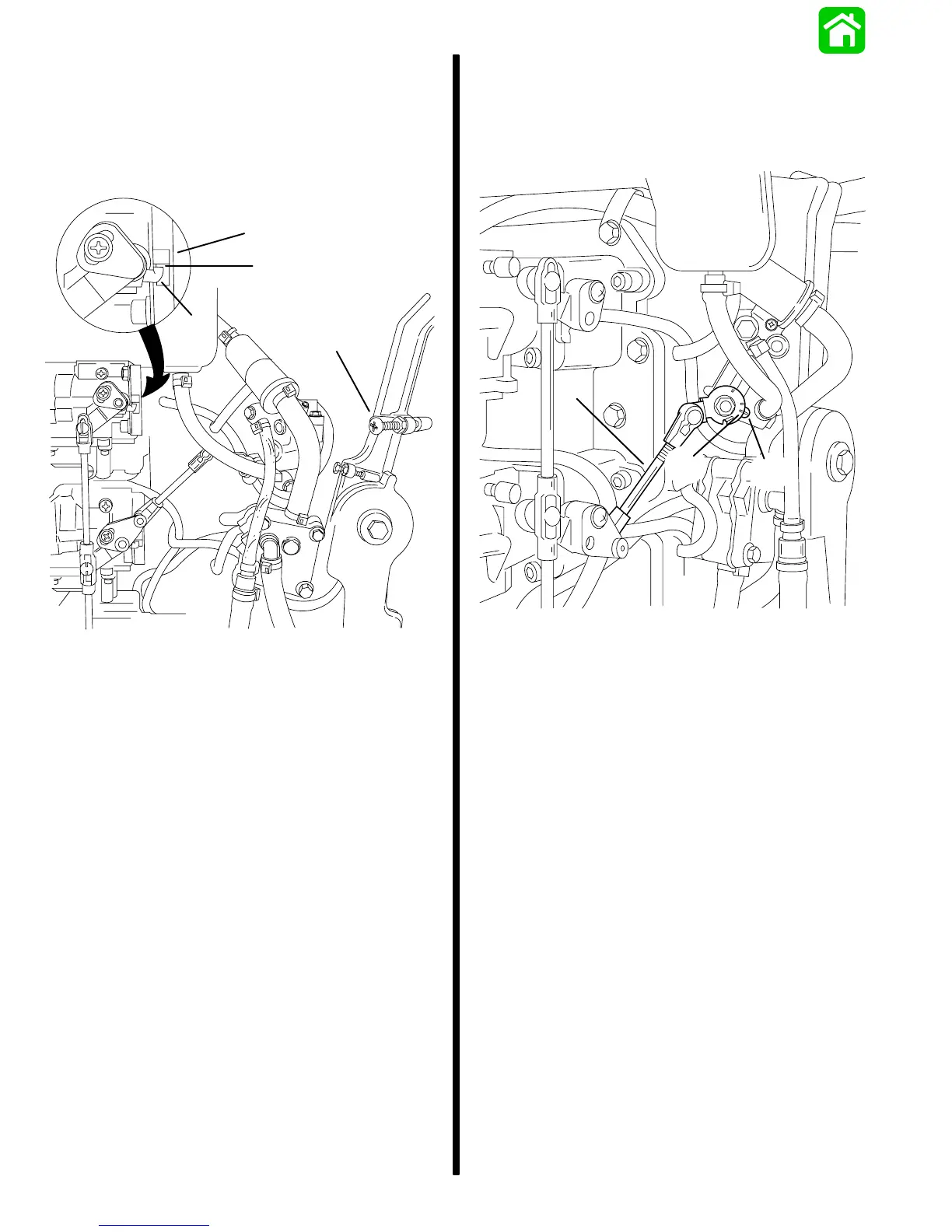

4. Move throttle lever to wide-open-throttle (W.O.T.)
position and adjust full throttle stop screw (a) to
allow full throttle shutter opening at W.O.T. Verify
that throttle shutters do not act as a throttle stop.
Allow .010 in. - .015 in. (.25mm - .38mm) clear-
ance between throttle shaft arm(b) and stop (c) at
W.O.T. Retighten jam nut on adjustment screw.
.010 – .015
(0.25mm – 0.38mm)
a
b
c
54389
CARBURETOR/OIL PUMP SYNCHRONIZATION
1. When carburetor linkage is at idle position,
alignment mark (a) on oil injection arm should be
in-line with mark on casting (b) as shown. If
necessary, adjust link rod (c).
a
b
c
