90-824052R3 JUNE 2002 FUEL SYSTEMS - 3C-43

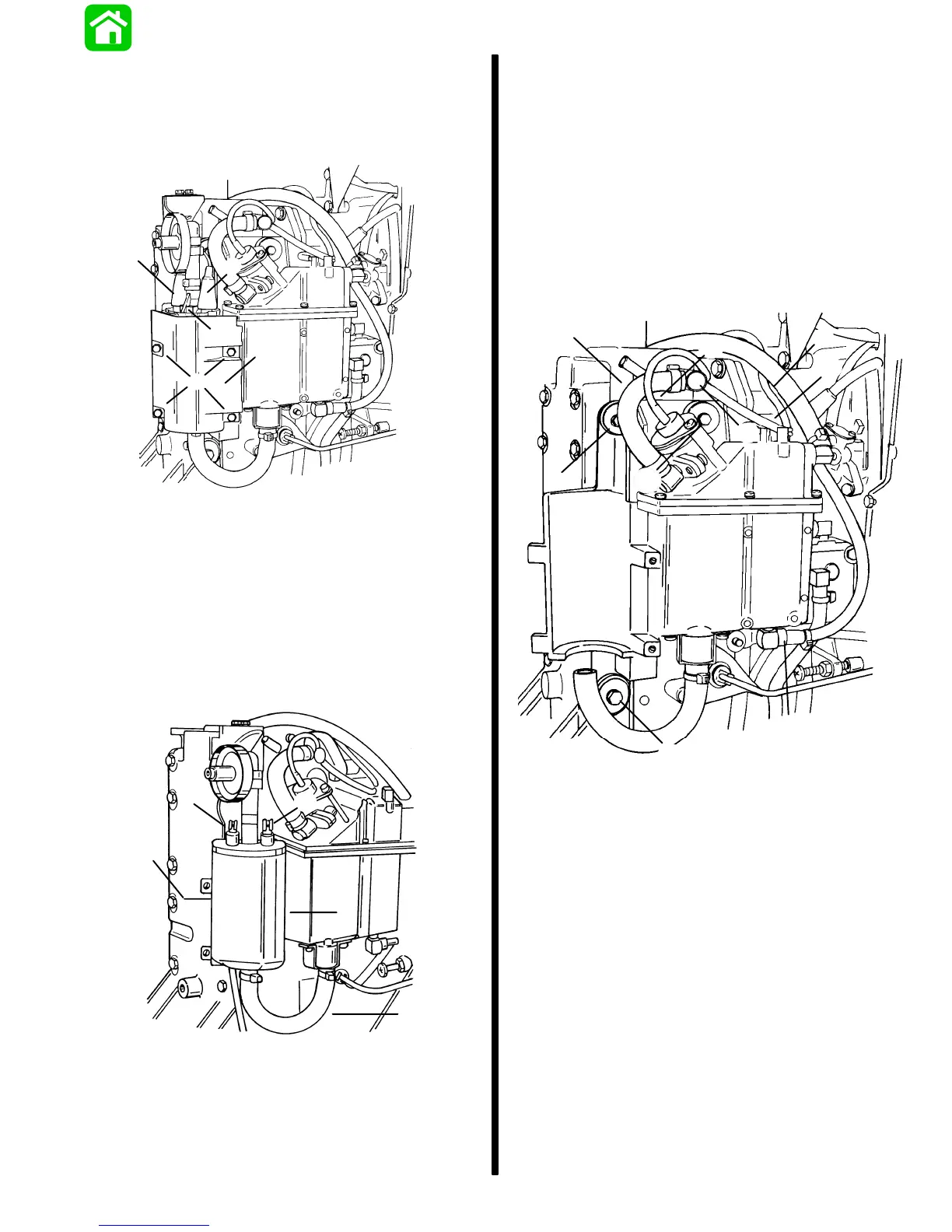

Electric Fuel Pump Removal
1. Remove 4 screws from cover plate.
2. Remove rubber boots from electric fuel pump
cap.
51786
c
b
d
a
c
a - Screws (4)
b - Cover Plate
c - Rubber Boots
d - Cap
3. Remove mounting screws.
4. Disconnect positive lead and negative lead.
5. Remove fuel pump inlet hose.
6. Remove rubber blanket and electric fuel pump.
a
c
d
e
b
a - Positive Lead
b - Negative Lead
c - Inlet Hose
d - Rubber Blanket
e - Electric Fuel Pump
Vapor Separator Removal
1. Disconnect fuel rail re-circulation hose at
manifold fitting.
2. Disconnect fuel pressure regulator vacuum
hose.
3. Disconnect bleed hose and vapor separator
vacuum hose.
4. Disconnect oil inlet hose.
5. Remove screw securing vapor separator to
manifold.
51786
f
a
g
d
e
c
b
g
g
a - Re-circulation Hose
b - Manifold Fitting
c - Regulator Vacuum Hose
d - Bleed Hose
e - Vapor Separator Vacuum Hose
f - Oil Inlet Hose
g - Screws
To Next Page
