3C-54 - FUEL SYSTEMS 90-824052R3 JUNE 2002

Induction Manifold

Assembly

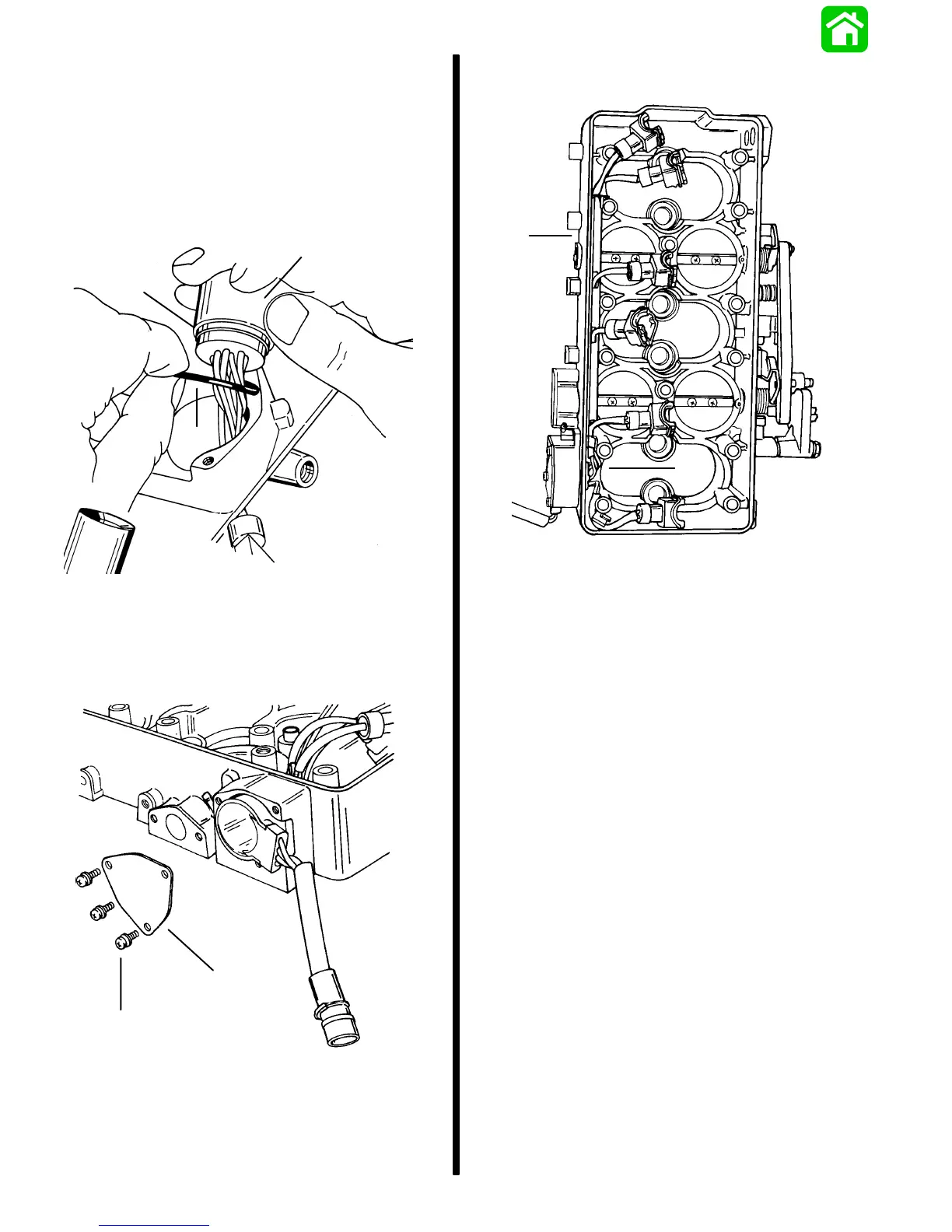

Injector Harness Installation

1. Carefully route injector harness into manifold.

2. Install O-ring into groove on injector harness

insert. Install harness insert into manifold port.

a - O-Ring

b - Groove

c - Insert

3. Install injector harness plate using screws.

Tighten securely.

51792

a - Plate

b - Screws

4. Install protective casing over positioned injector

wiring harness and insert into manifold.

51795

a - Casing

b - Harness
