Mariner Mercury 135 JET User Manual

4A-12 - POWERHEAD 90-824052R3 JUNE 2002
Torque Sequence

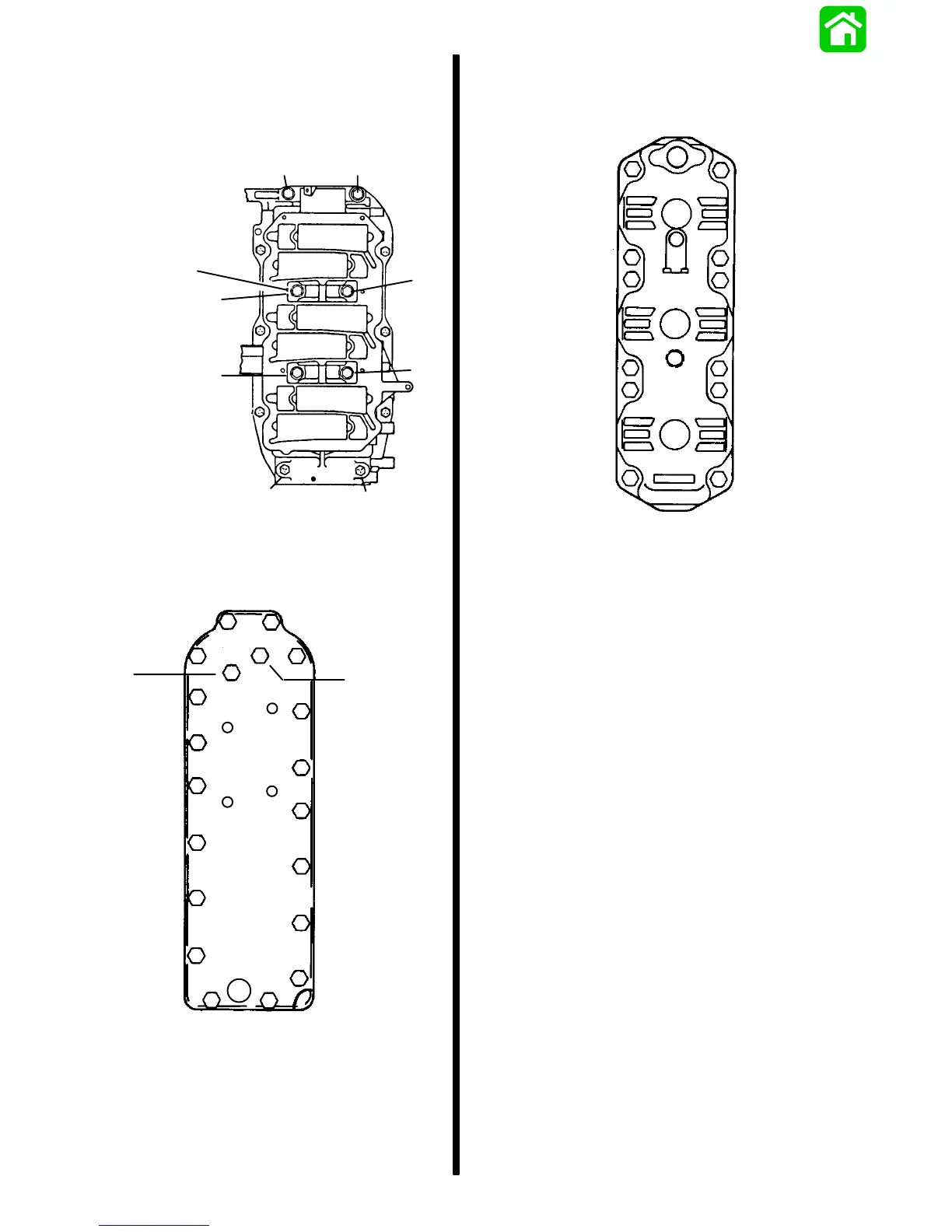

CRANKCASE COVER BOLTS (AND TORQUE
SEQUENCE)
Add light oil to threads
and bolt face:
8 Bolts (3/8 in. - 16 in.)
38 lb. ft. (51.5 N·m)
Bolts (5/16 in. - 18)
180 lb. in. (20.3 N·m)
1
2
3
4
5
6
78
EXHAUST DIVIDER PLATE BOLTS
200 lb. in. (22.6 N·m)
Apply Loctite 271 to threads
19
20
10
6
3
2
7
11
16
17
12
8
4
1
5
9
15
18
13
14
CYLINDER HEAD BOLTS
Add light oil to threads and bolt face:
30 lb. ft. (40.5 N·m) then turn an additional 90°.
10
6
2
3
7
11
12
8
4
1
5
9
