AUXILIARY FUEL PUMP
WARNING
Avoid serious injury or death from a gasoline fire
or explosion. If an auxiliary electrical fuel pump
is used to feed the mechanical pump on the
engine, fuel pressure to the engine must not
exceed 4 psi. If necessary, install a pressure
regulator between between the electric fuel
pump and the oil injection outlet check valve. Set
regulator at 4 psi maximum. The fuel pump can
be mounted vertically with the electrical
connections on top or sideways with the
connections on either end. DO NOT MOUNT
PUMP VERTICALLY WITH THE ELECTRICAL
CONNECTIONS ON THE BOTTOM.

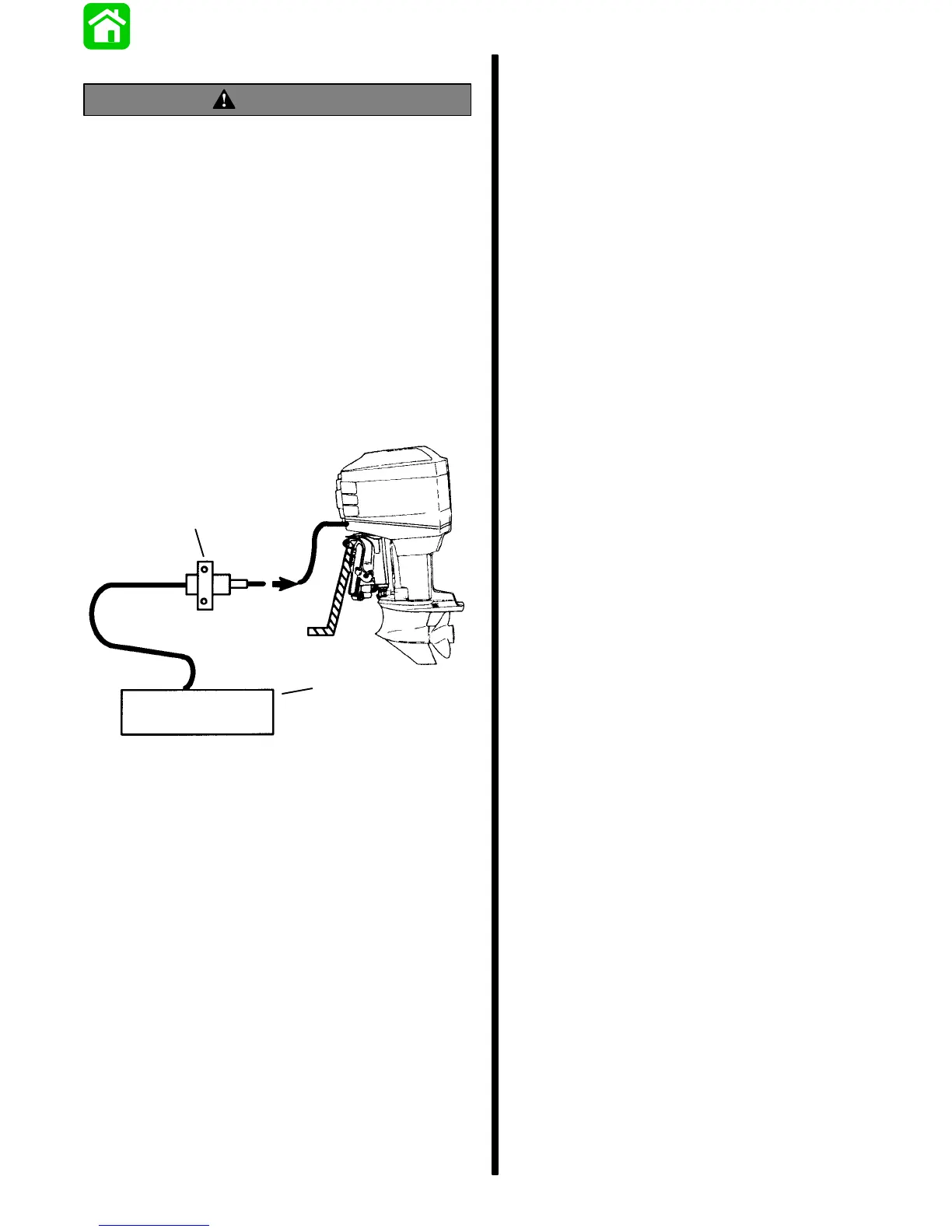

1. Install in-line auxiliary fuel pump in fuel system as
shown.
b
a
a - Fuel Tank
b - Auxiliary Electric Fuel Pump
2. Start engine and check for any fuel leaks.
PORTABLE FUEL TANK
Select a suitable location in boat within engine fuel
line length limitations and secure tank in place.
PERMANENT FUEL TANK
These should be installed in accordance with
industry and federal safety standards which include
recommendations applicable to grounding,
anti-siphon protection, ventilation, etc.
