90-824052R3 JUNE 2002 FUEL SYSTEMS - 3C-55

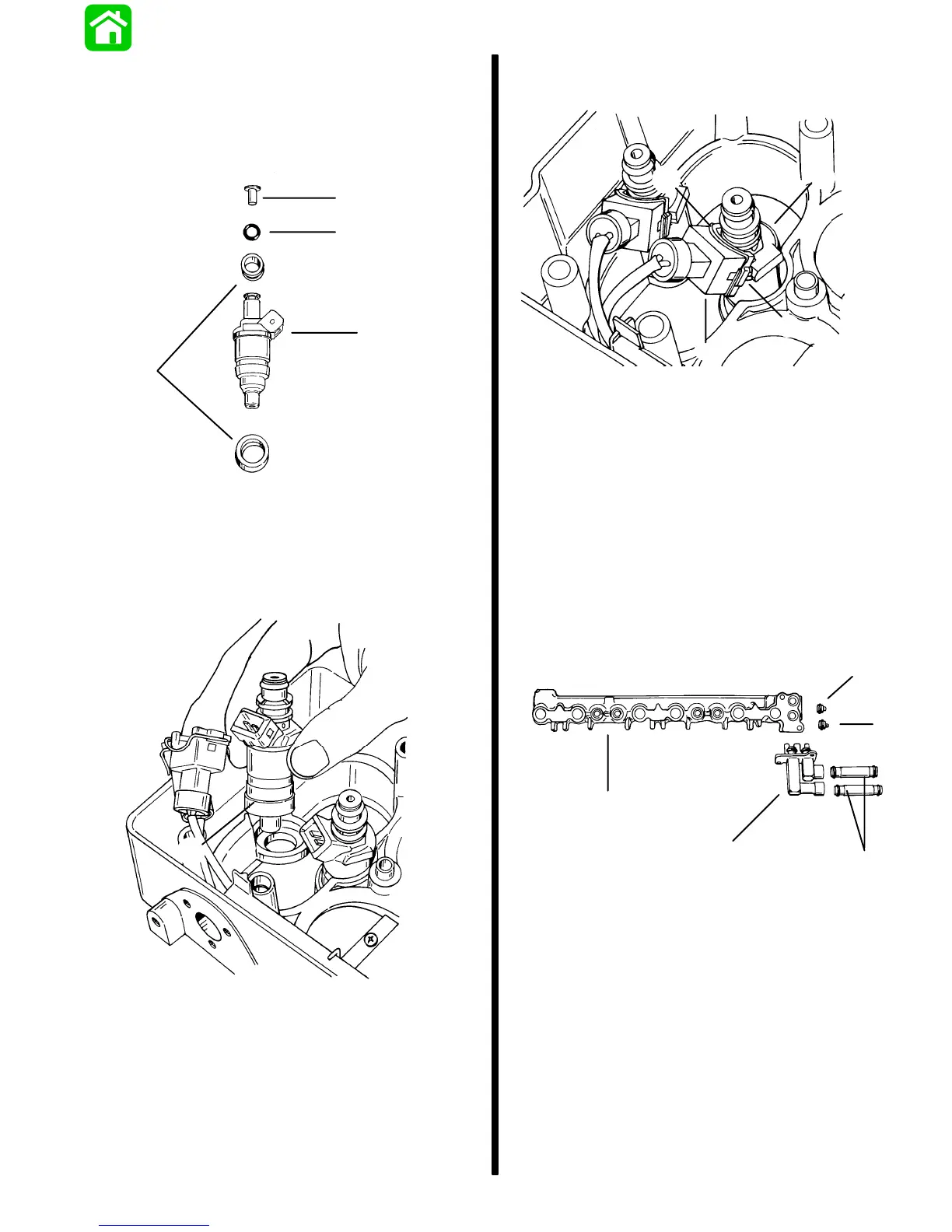

Fuel Injector Assembly and

Installation

1. Install inspected seals, O-ring and injector filter to

injector.

51789

a - Seals

b - O-Ring

c - Filter

d - Injector

2. Install injector into manifold.

51789

a - Injector

3. Install wire clamp into slot on injector connector.

4. Connect to injector.

51792

a - Clamp

b - Slot

c - Connector

d - Injector

Fuel Rail Assembly

1. Install inspected O-rings to plugs. tube support

and tubes.

2. Install tubes to tube support.

3. Install plugs to fuel rail.

4. Install tube support to fuel rail.

51795

a - Tube Support

b - Fuel Rail

c - Tubes

d - Plugs
