2D-22 - ELECTRICAL 90-824052R3 JUNE 2002

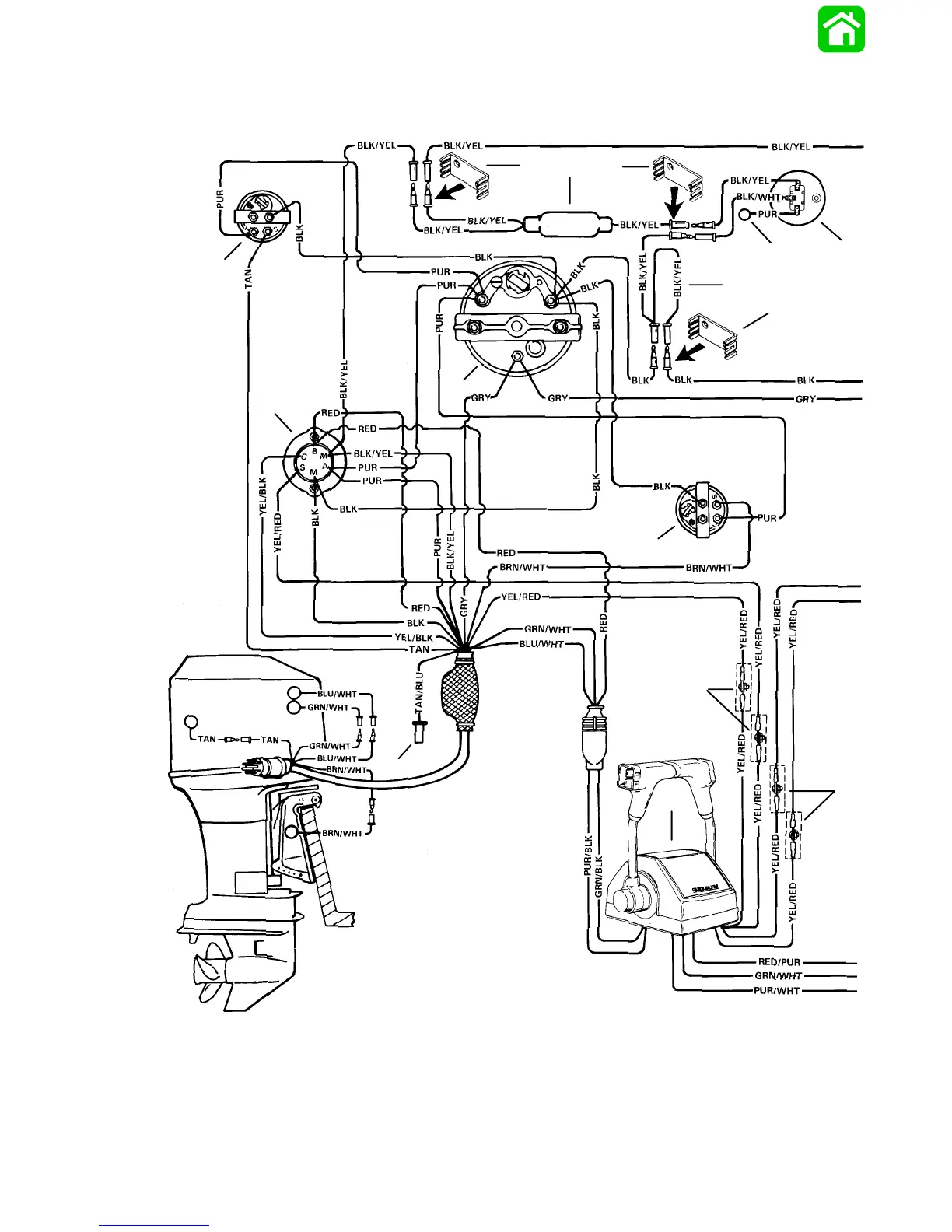

Instrument/Lanyard Stop Switch Wiring Diagram (Dual

Outboard)

BLK=BLACK

BLU=BLUE

BRN=BROWN

GRN=GREEN

GRY=GRAY

PUR=PURPLE

RED=RED

TAN=TAN

WHT=WHITE

YEL=YELLOW

BATT

GND

SENDER

PORT INSTALLATION

52205

a - Ignition/Choke Switch

b - Lanyard Stop Switch

c - Lead not used on Outboard Installations

d - Retainer

e - Tachometer

f - Trim Indicator Gauge

g - Temperature Gauge

h - Remote Control

i - Synchronizer Gauge

j - Synchronizer Module

Important 1 B15
