2D-30 - ELECTRICAL 90-824052R3 JUNE 2002

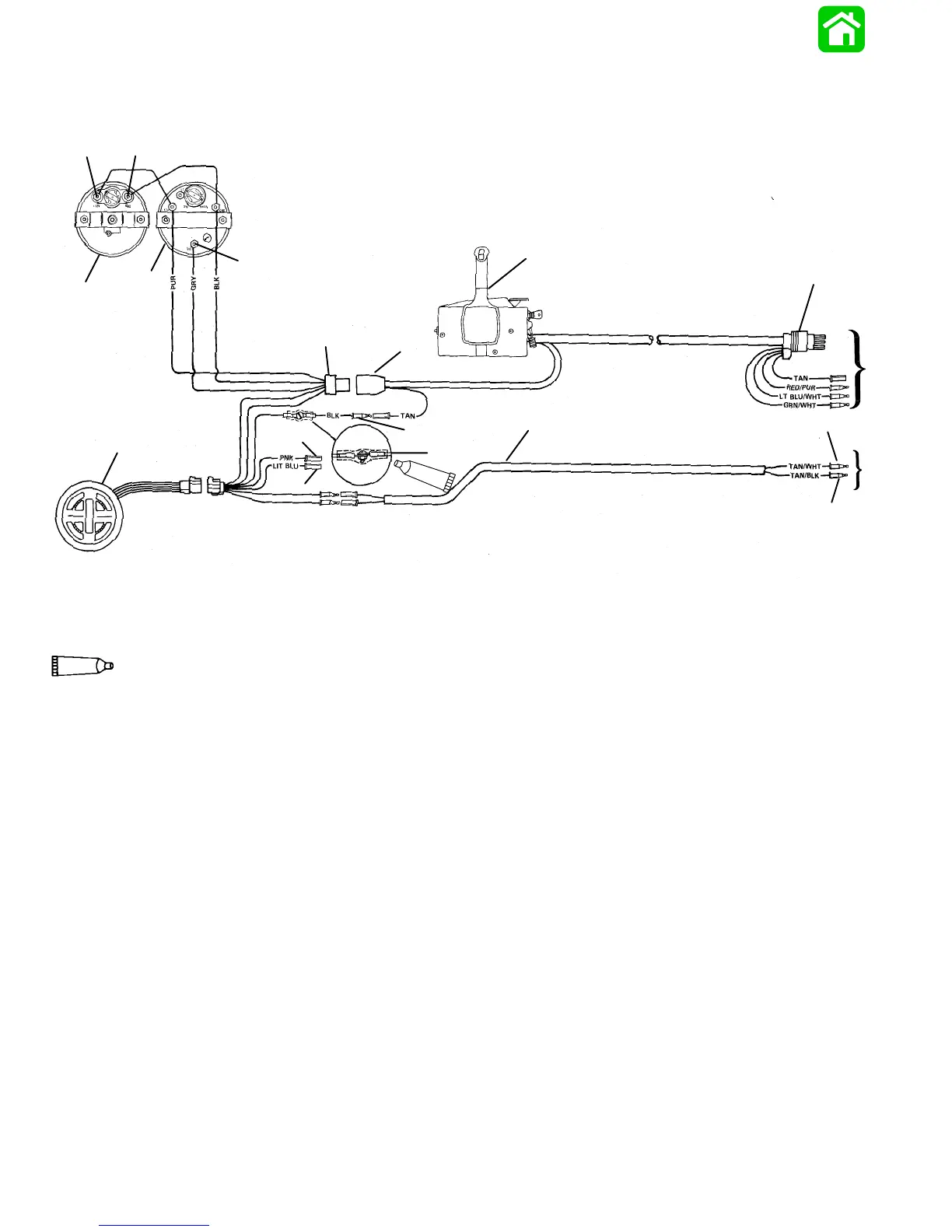

Side Mount Remote Control Wiring Installation
BLK = Black
BLU = Blue
BRN = Brown
GRY = Gray
GRN = Green
ORN = Orange
PNK = Pink
PUR = Purple
RED = Red
TAN = Tan
WHT = White
YEL = Yellow
LIT = Light
DRK = Dark
a
b
c
d
e
j
f
g
h
r
s
p
q
o
n
m
k
l
i
25
25
Liquid Neoprene (92-25711--2)
a - (+) 12 Volt Terminal
b - (–) Ground Terminal
c - Speedometer
d - Tachometer
e - Tachometer Signal Terminal
f - Tachometer Receptacle
g - Side Mount Remote Control
h - 8 Pin Harness Connector
i - Multi-Function Gauge
j - Multi-Function Adapter Harness
k - To Fuel Sender (Optional)
l - To Oil Sender (Optional)
m - Cable Lead (Jumper) (84-11149A3)
n - Connect Wires Together with Screw and
Hex Nut; Apply Quicksilver Liquid Neoprene to Connec-
tions and Slide Rubber Sleeve Over Each Connection
o - Two Wire Harness
p - Low Oil Sender Lead
q - Over Temperature Switch Lead
r - To Engine
s - To Engine
To Next Page
