90-824052R3 JUNE 2002 POWERHEAD - 4A-45

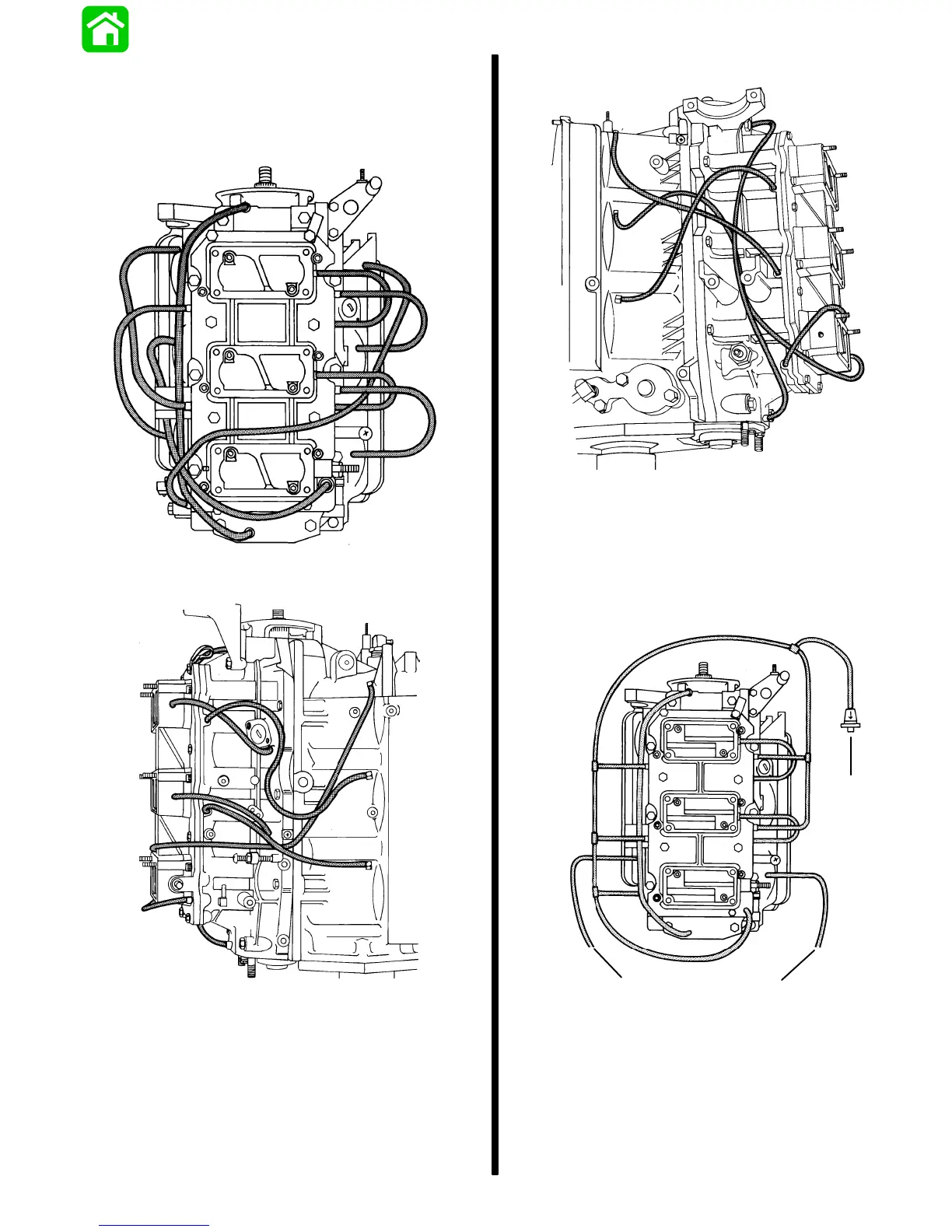

Bleed Line Routing

(Carbureted Models)

FRONT VIEW

50801

PORT SIDE VIEW

50802

STARBOARD SIDE VIEW

50801

Bleed Line Routing (Fuel

Injected Models)

FRONT VIEW

50935

a - To Vapor Separator Thru Bleed Shut-Off Valve (0G303045

and Below) – Direct to Vapor Separator (0G303046 and

Above)

b - To Bottom of EFI Manifold if Equipped

NOTE: Filter removed S/N 0G654636 and above.
