90-824052R3 JUNE 2002 ELECTRICAL - 2D-29

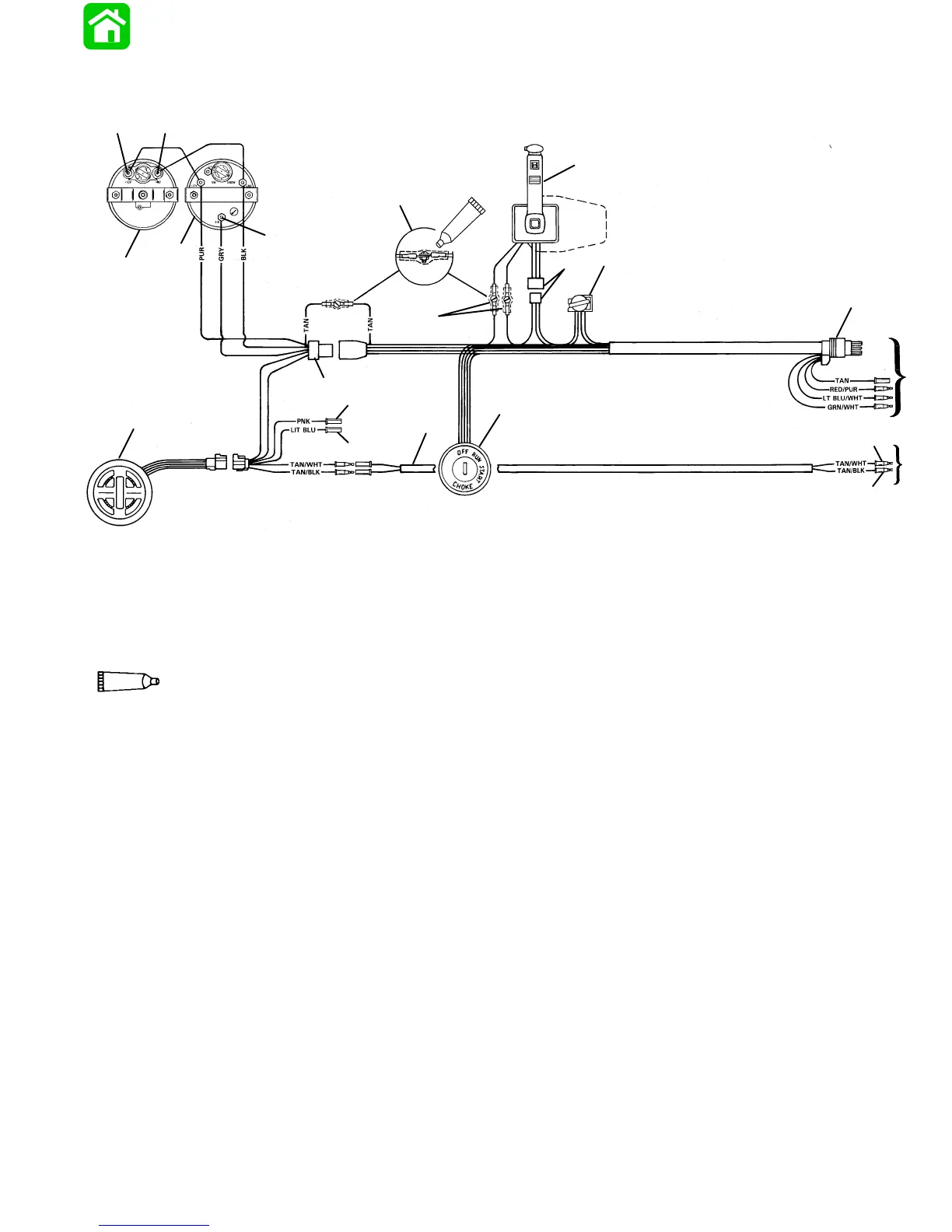

Panel Mount Remote Control Wiring Installation
BLK = Black
BLU = Blue
BRN = Brown
GRY = Gray
GRN = Green
ORN = Orange
PNK = Pink
PUR = Purple
RED = Red
TAN = Tan
WHT = White
YEL = Yellow
LIT = Light
DRK = Dark
ab
c
d
f
g
h
r
u
i
s
t
p
q
o
n
m
l
k
j
e
25
Liquid Neoprene (92-25711--2)
25
a - (+) 12 Volt Terminal
b - (–) Ground Terminal
c - Speedometer
d - Tachometer
e - Tachometer Signal Terminal
f - Connect Wires Together with
Screw and Hex Nut (3 Places);
Apply Quicksilver Liquid Neoprene to Connections and
Slide Rubber Sleeve Over Each Connection.
g - Power Trim Connector
h - Horn
i - 8 Pin Harness Connector
j - Multi-Function Gauge
k - Multi-Function Adapter Harness
l - To Fuel Sender (Optional)
m - To Oil Sender (Optional)
n - Two Wire Harness
o - Ignition/Choke Switch
p - Low Oil Sender Lead
q - Over Temperature Switch Lead
r - Panel Mount Remote Control
s - To Engine
t - To Engine
u - Neutral Safety Switch Lead
To Next Page
