90-824052R3 JUNE 2002 FUEL SYSTEMS - 3C-63

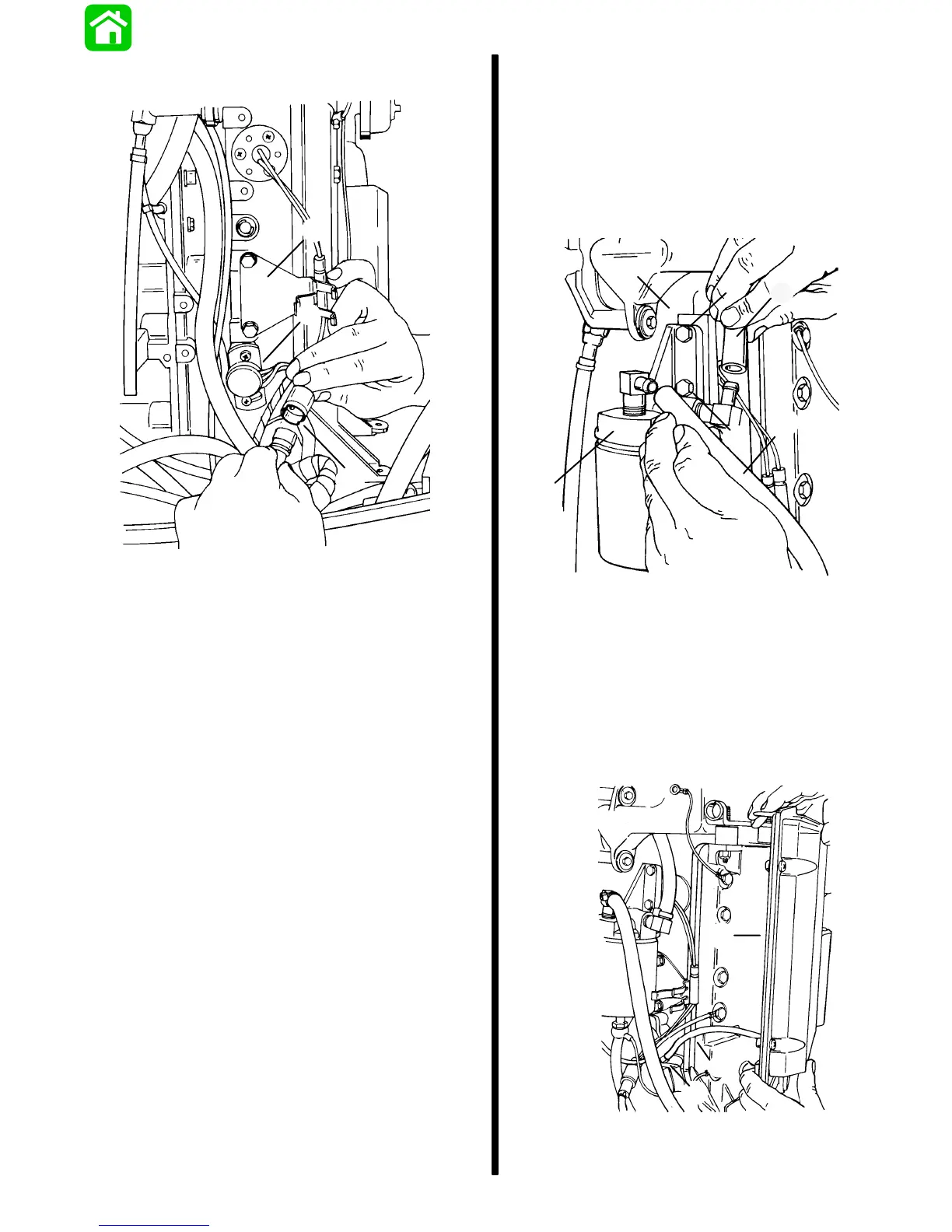

3. Install ECM harness bracket and connect throttle

position sensor at 3 pin connector.

51787

a - Bracket

b - Throttle Position Sensor

c - 3 Pin Connector

Water Separating Filter Assembly

Installation

1. Install spacer block to engine block.

2. Install filter base secure with screws. Tighten

screws securely.

3. Connect fuel inlet hose and fuel inlet hose to

fittings.

51793

a - Spacer Block

b - Filter Base

c - Screws

d - Fuel Outlet Hose

e - Fuel Inlet Hose

ECM Installation

1. Connect MAP sensor hose from ECM to manifold

fitting. Place ECM on manifold studs.

51793

a - MAP Sensor Hose

b - Fitting

c - ECM
