3C-52 - FUEL SYSTEMS 90-824052R3 JUNE 2002

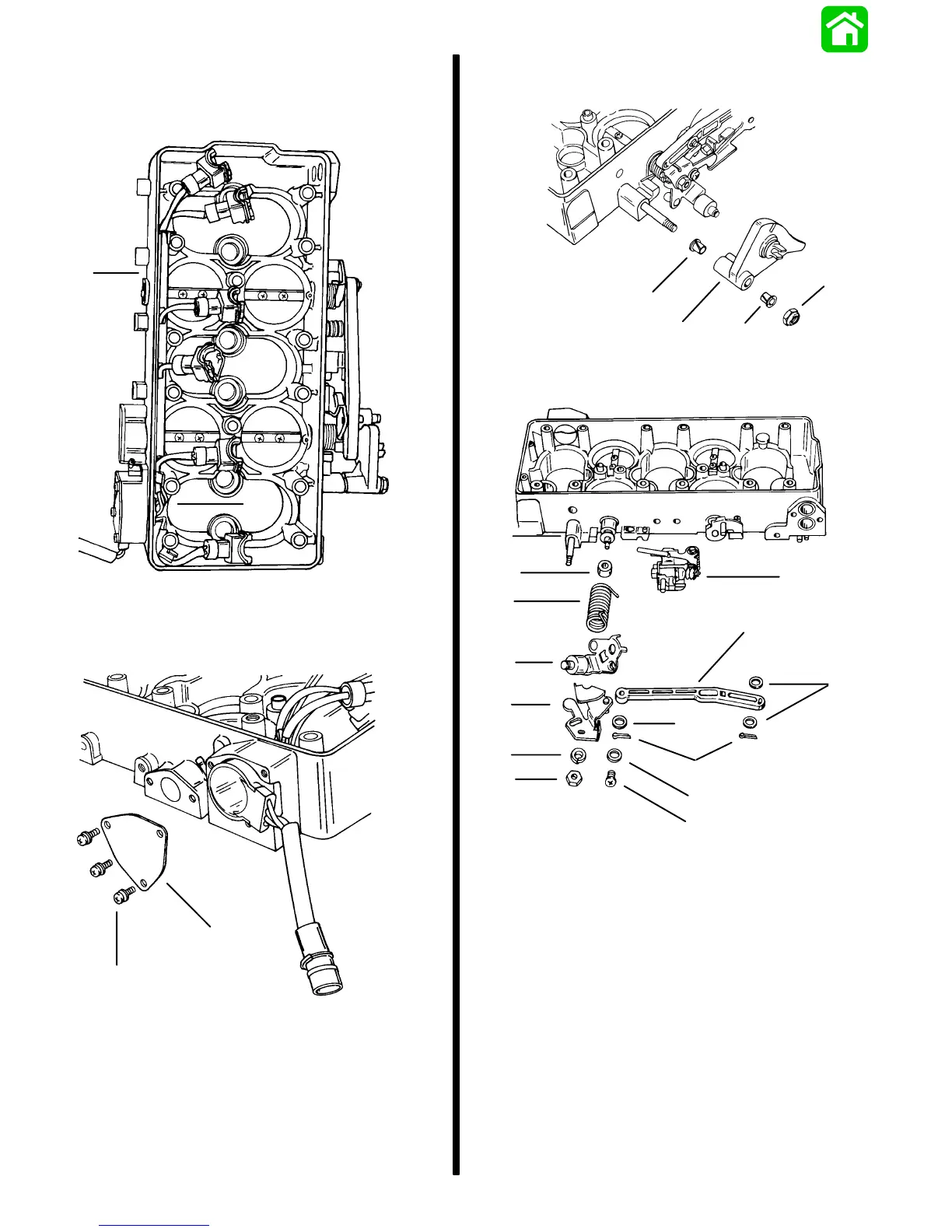

Injector Harness Removal

1. Remove protective casing from injector wiring

harness. Note position of wires for reassembly.

51795

a - Casing

b - Harness

2. Remove screws and injector harness plate.

51792

a - Screws

b - Plate

Throttle Linkage Removed

51786

a - Throttle Cam

b - Bushings

c - Nut; Tighten until snug against cam, then back off 1/4 turn

51789

a - Fiber Washer

b - Bushing

c - Spring

d - Roller Cam Bracket

e - Bracket (Shutter Link)

f - Lock Washer

g - Nut

h - Screw

i - Flat Washer

j - Cotter Key

k - Progressive Shutter Link

l - Bleed Shut Off
