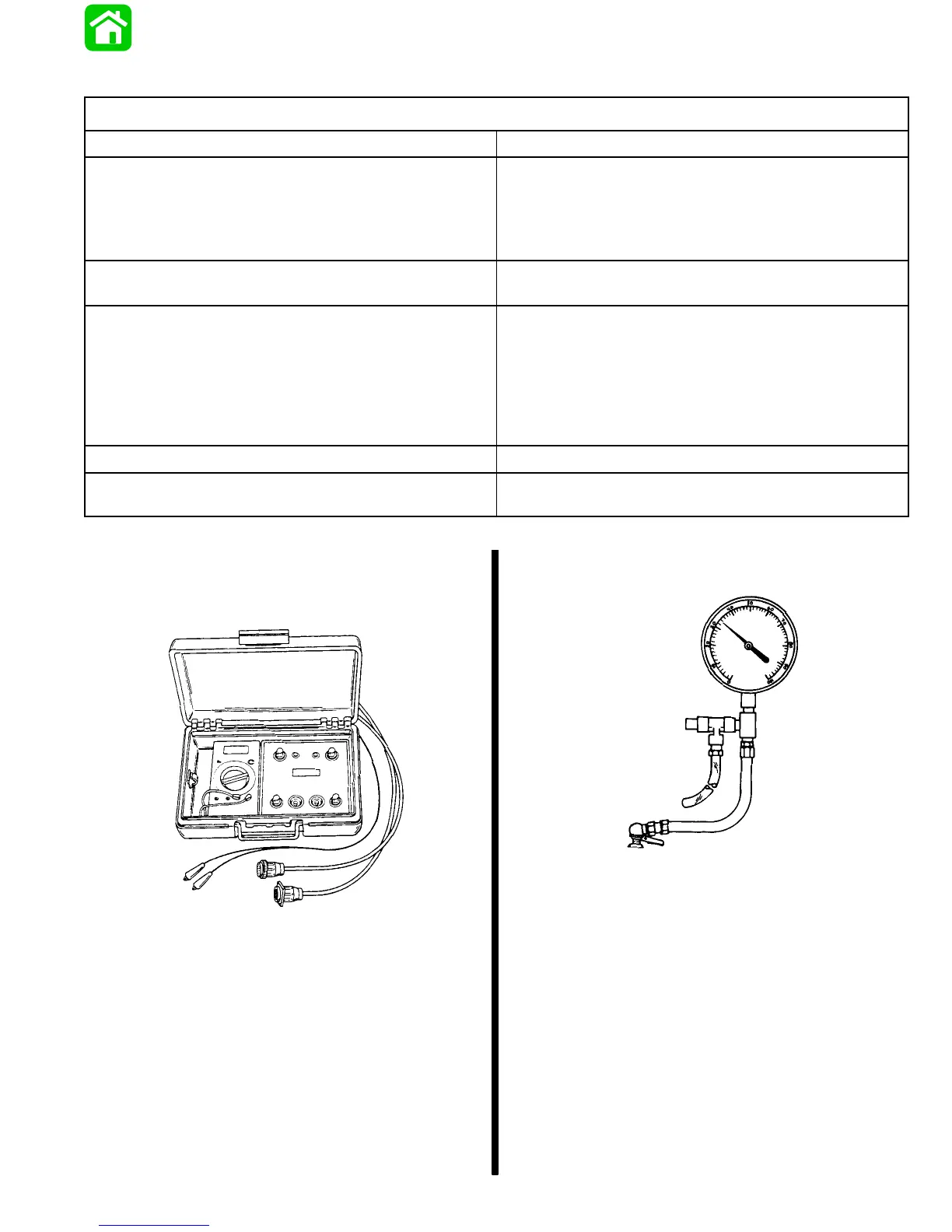

90-824052R3 JUNE 2002 FUEL SYSTEMS - 3C-1
Specifications
Electronic Fuel Injection
Idle RPM – All Models 650 ± 50
Wide Open Throttle RPM
– Model 150XRI/175XRI
– Model 200XRI
– Pro Max/Super Magnum 150/200/225
5000 – 5600
5000 – 5800
6200 – 6500
Float Adjustment (Vapor Separator)
– Float Level
Preset @ Factory
Fuel Injectors
–All Models (Quantity)
– Inner Switch Box Controls:
– #1 Primary Circuit
– #3 Primary Circuit
– #5 Primary Circuit
6
#3 and #4 Injectors
#5 and #6 Injectors
#1 and #2 Injectors
Line Pressure @ Injectors 36 psi – 39 psi (248kPa – 269kPa)
ECM Amperage Draw with Ignition Switch in the ON
or RUN Position
60 to 90 Milliamperes
Special Tools
Electronic Fuel Injection Tester 91-11001A2
Fuel Pressure Gauge 91-16850
51796
