90-824052R3 JUNE 2002 FUEL SYSTEMS - 3A-1

Specifications

Fuel Pump Pressure @ W.O.T.

Maximum – 10 psi (69 kPa)

Normal – 8-10 psi (55 - 69 kPa)

Minimum – 3 psi (21 kPa)

Fuel Pump Pressure @ Idle

Normal – 2-3 psi (14 - 21 kPa)

Minimum – 1 psi (7 kPa)

NOTE: Electric fuel pump pressure, if used in

conjunction with engine mechanical fuel pump, must

be limited to no more than 4 psi (27 kPa).

Special Tools

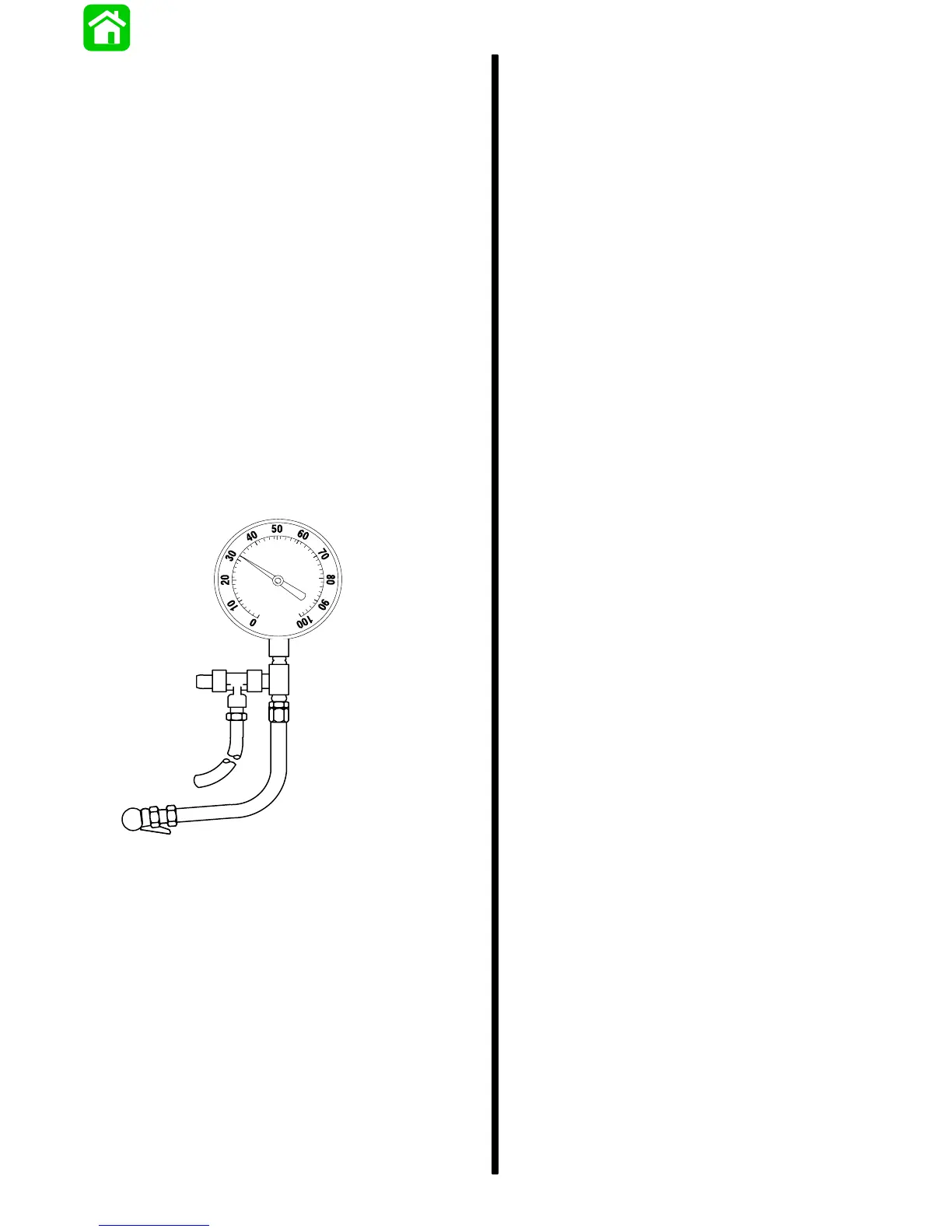

Fuel Pressure Gauge 91-16850
