4A-18 - POWERHEAD 90-824052R3 JUNE 2002

Powerhead Disassembly

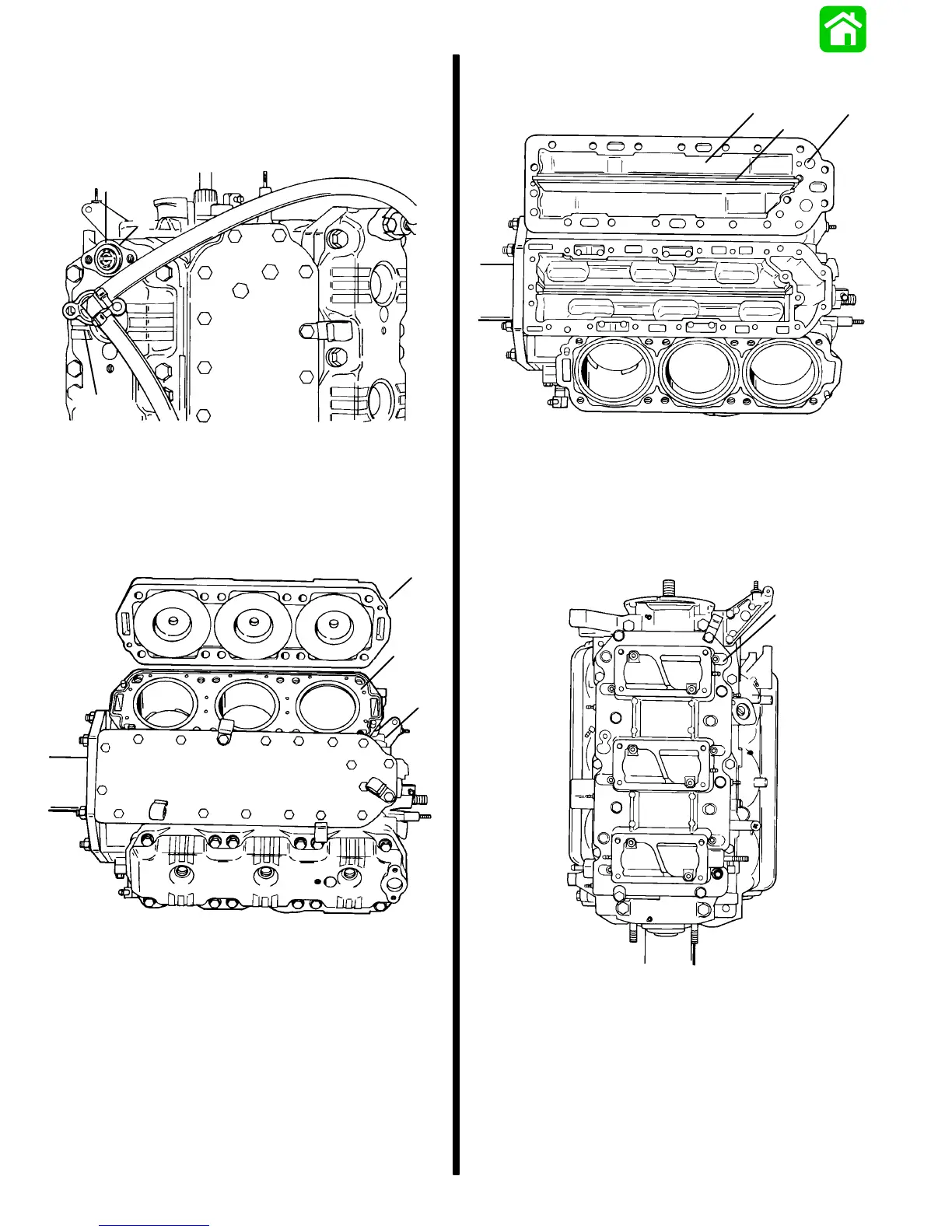

1. Place powerhead in repair stand or on a bench.

2. Remove thermostat covers, thermostats and

gaskets.

51852

a - Thermostat Cover

b - Thermostat

c - Gasket

3. Remove cylinder heads from engine block.

51847

a - Cylinder Head

b - Gasket

c - Engine Block

4. Remove exhaust manifold cover and seal.

51852

a - Exhaust Manifold Cover

b - Seal

c - Gasket

5. Remove reed block housing from cylinder block.

51845

a - Reed Block Housing

Important 1 B15
