90-824052R3 JUNE 2002 MID-SECTION - 5B-27

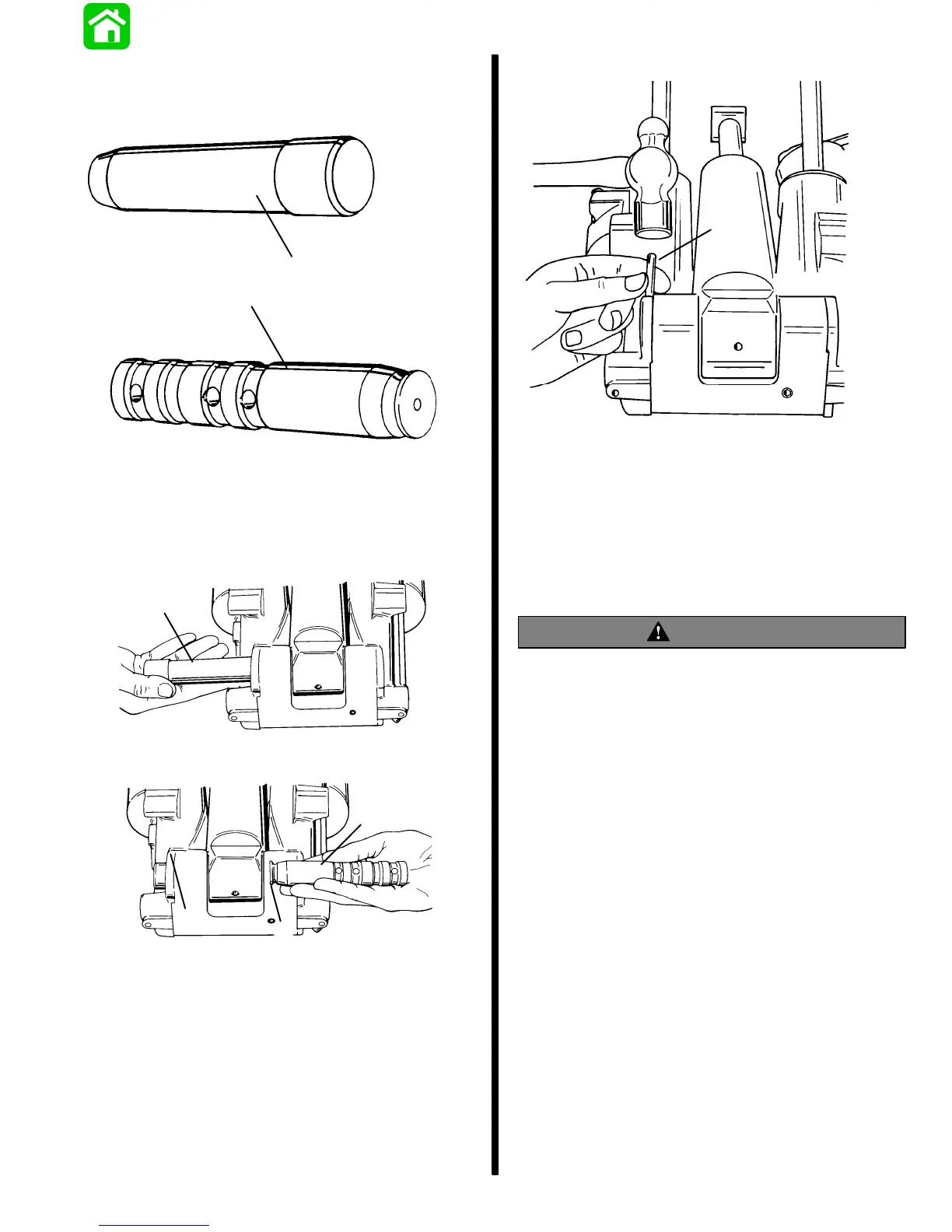

TILT RAM ASSEMBLY INSTALLATION

1. Lubricate alignment tool (91-11230) and shaft.

Use Quicksilver Power Trim and Steering Fluid.

51369

a - Alignment Tool (91-11230)

b - Shaft

2. Align tilt ram and housing using alignment tool.

3. Install shaft.

51352

51348

a - Alignment Tool (91-11230)

b - Shaft

c - Groove

d - Hole [Groove (c) will Align with this Hole]

4. Drive pin in until flush.

51356

a - Pin (Drive Against Knurled End)

Motor and Electrical

Tests/Repair

Trim Pump Motor Test

WARNING

Do not perform this test near flammable

materials, as a spark may occur while making

electrical connections.
