7-16 - ATTACHMENTS/CONTROL LINKAGE 90-824052R3 JUNE 2002
STEERING LINK ROD INSTALLATION
WARNING
Steering link rods MUST BE secured between
outboard steering arm and steering cable end,
using special washer head bolt (10-14000) and
two nylon insert locknuts (11-34863), as shown.
Both special washer head bolt and nylon insert
locknuts MUST BE tightened as specified.
50061
c
e
d
28166
c
e
a
f
dd
f
a
e
e
a
a
b
f
b
c
b

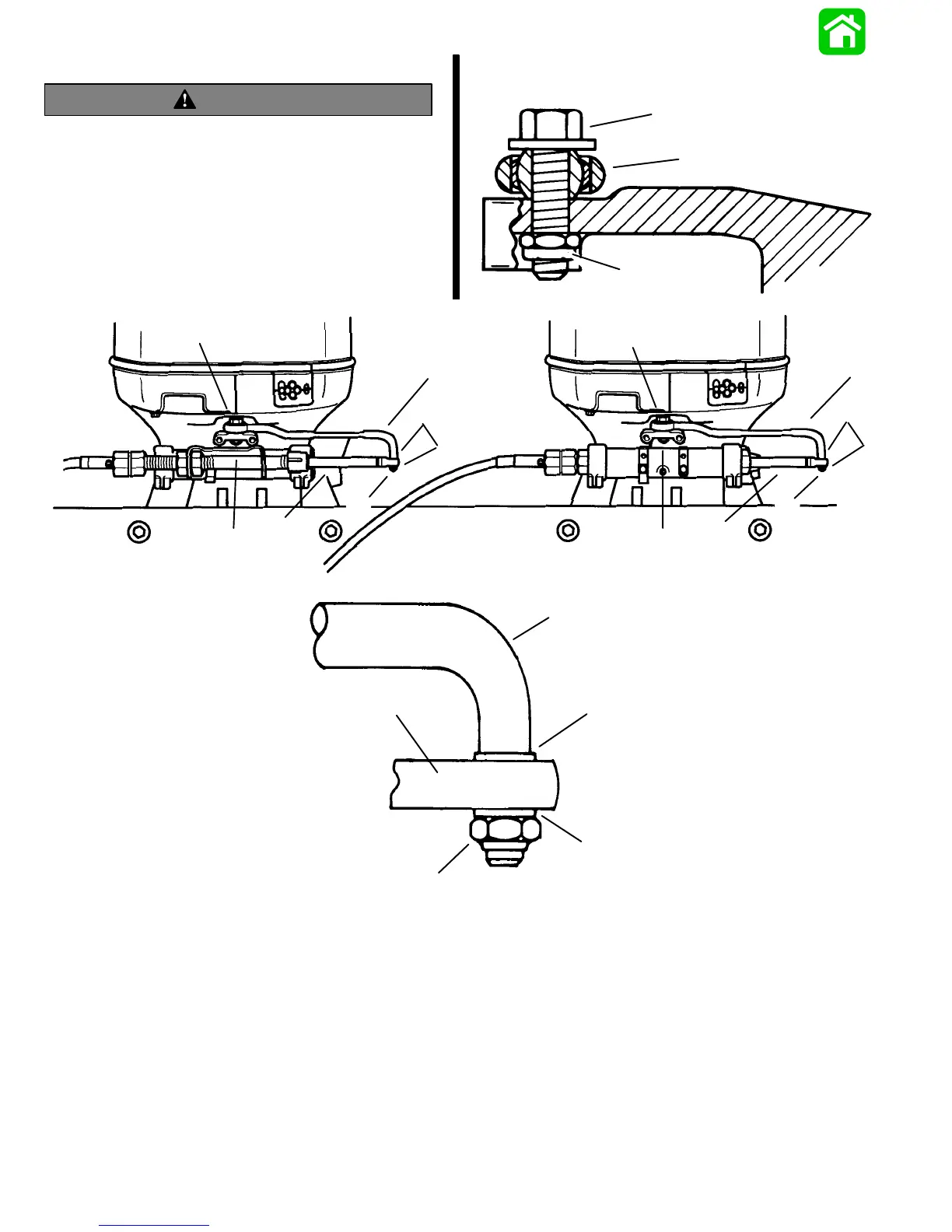

a - Flat Washer (2 Each Link Rod)
b - Nylon Insert Locknut - Torque Until it Seats [DO NOT
Exceed 120 lb. in. (13.5 N·m) of Torque], Then Back Off
1/4 Turn
c - Special Washer Head Bolt (10-14000) - Torque to 20 lb. ft.
. (27.0 N·m)
d - Nylon Insert Locknut - Torque to 20 lb. ft. (27.0 N·m)
e - Steering Link Rod
f - Steering Cable End
Lubricate holes in ends of steering cables, with
Quicksilver 2-4-C w/Teflon Marine Lubricant.
Assemble steering link rods to steering cable ends of
each outboard, using flat washers and nylon insert
locknuts. Tighten locknuts until they seat [DO NOT
exceed 120 Ib. in. (13.5 N·m) of torque], then back
nut off 1/4 turn.
Lubricate ball joints in steering link rods with SAE
30W Motor Oil. Secure link rods to outboard steering
arms, using special washer head bolts (10-14000)
provided and nylon insert locknuts as shown. Torque
special bolts to 20 Ib. ft. (27.0 N·m) then torque
locknuts to 20 Ib. ft. (27.0 N·m).
