4A-24 - POWERHEAD 90-824052R3 JUNE 2002

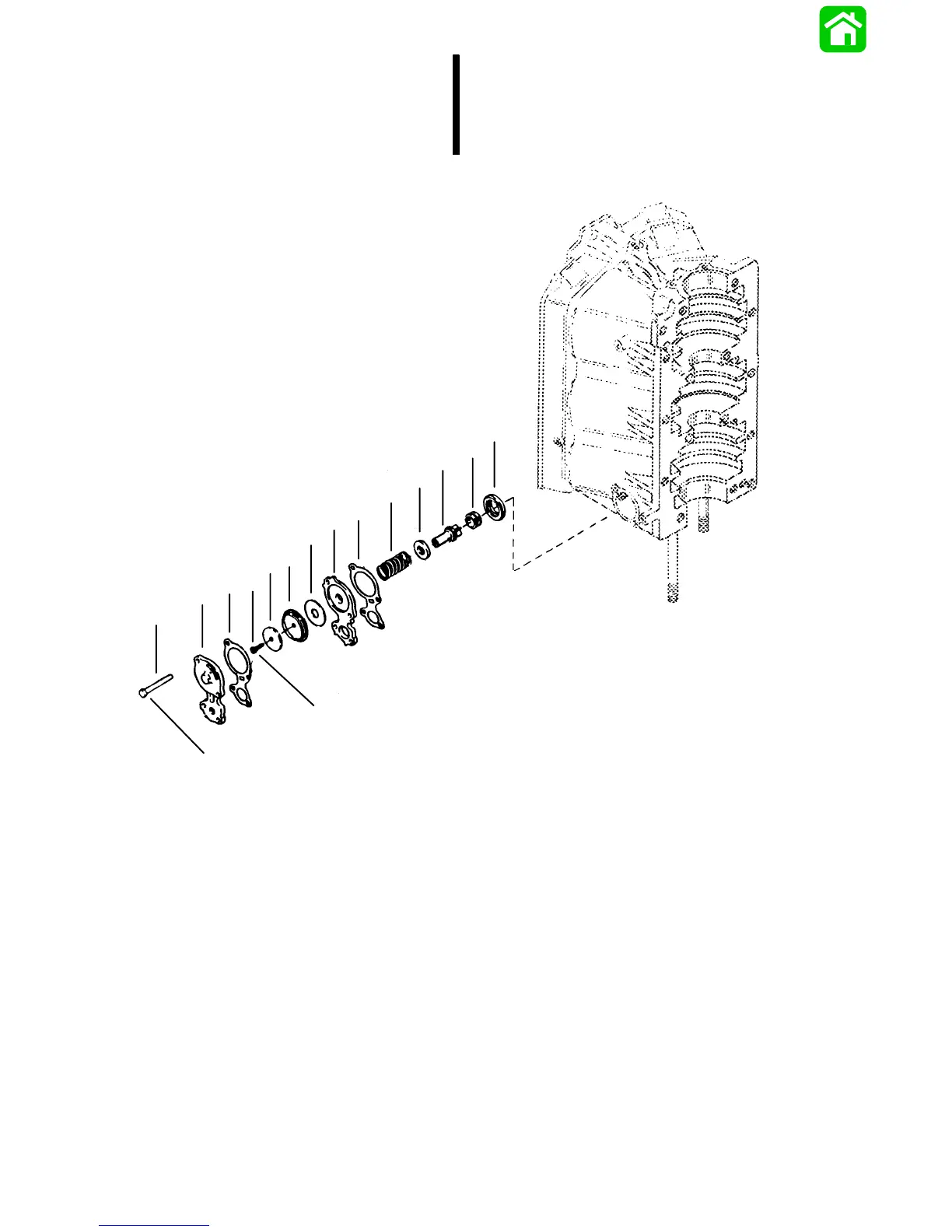

Water Pressure Relief Valve

Components

If necessary, remove water pressure relief valve

components as shown.

50803

Torque Specifications

a-150 lb. in. (17.0 N·m)

b-25 lb. in. (3.0 N·m)

1 - Cover

2 - Bolt

3 - Gasket

4 - Relief Valve Plate

5 - Diaphragm

6 - Water Deflector

7 - Washer

8 - Screw

9 - Spring

10- Poppet Valve

11- Carrier

12- Grommet

13- Washer
