6E-46 - LOWER UNIT
90-824052R3 JUNE 2002
IMPORTANT: If shifting operation is not as
described, preceding, the gear housing must be
removed and the cause corrected.
14. Install washers and nuts onto studs (located on
bottom center of anti-cavitation plate). Torque to
listing in “Torque Specifications,” preceding.
15. Install special flat washer and nut on stud at
leading edge of driveshaft housing. Torque to
listing in “Torque Specifications,” preceding.
16. Torque bolt (started in Step 10) to listing in
“Torque Specifications,” preceding.
17. Install trim tab, adjust to position in which it had
previously been installed, and tighten securely.
18. Install plastic cap into trim tab bolt opening at rear
edge of driveshaft housing.
Propeller Installation
WARNING
When installing or removing propeller, because
of the engine’s ease in starting, VERIFY that the
remote control is in NEUTRAL position and that
the key switch is “OFF.” Place a block of wood
between the anti-cavitation plate and propeller to
prevent accidental starting and to protect hands
from propeller blades while removing or
installing nut.
1. To aid in future removal of the propeller, liberally
coat the propeller shaft splines with one of the
following Quicksilver products:
-- Anti-Corrosion Grease (92-78376A6)
-- Special Lubricant 101 (92-13872A1)
-- 2-4-C Marine Lubricant (92-90018A12)
-- Perfect Seal (92-34227--1)

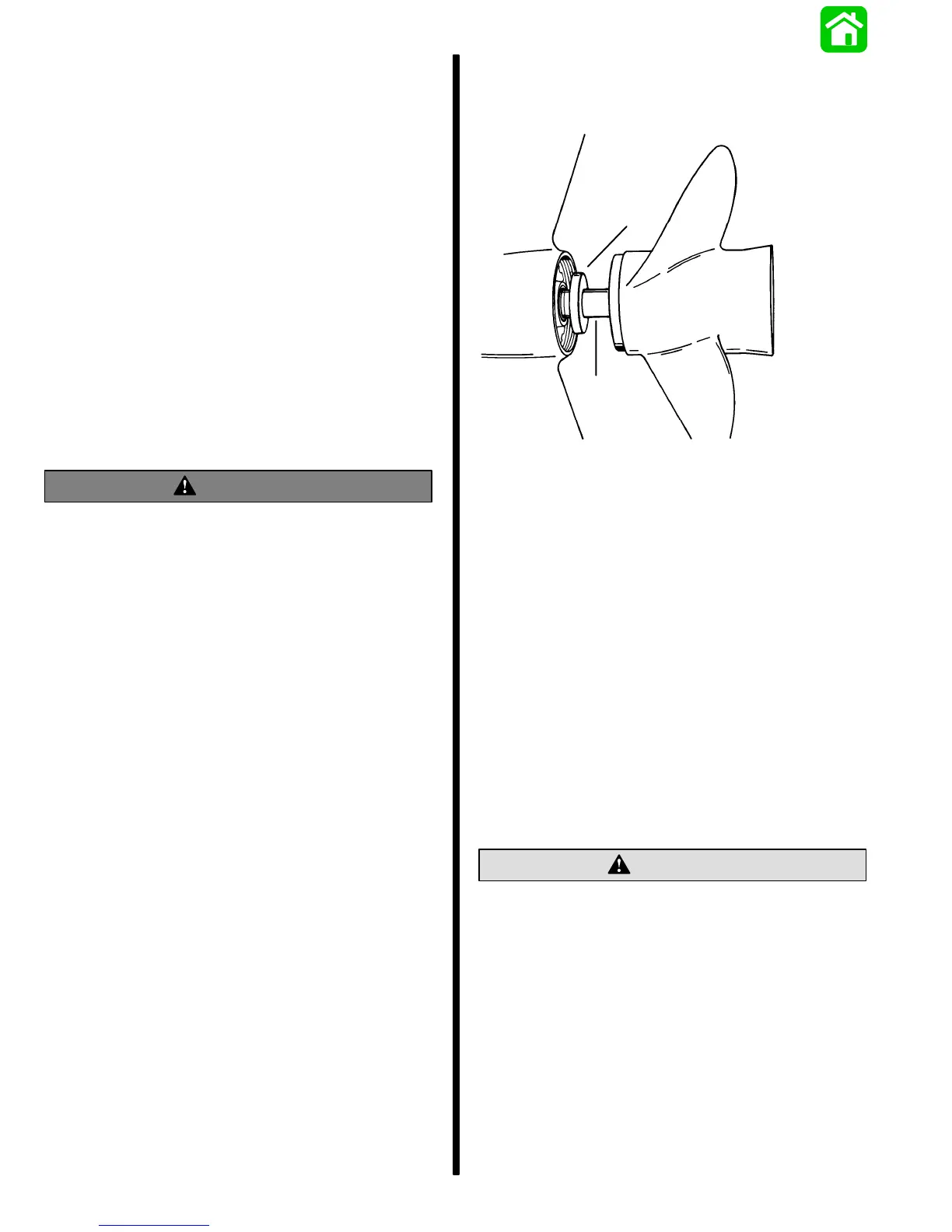

2. Place forward thrust hub over propeller shaft with
shoulder side toward propeller.
3. Place propeller on propeller shaft and slide it up
against thrust hub.
a
b
51912
a - Forward Thrust Hub
b - Propeller Shaft
4. Place continuity washer (if equipped) onto
shoulder of rear thrust hub.
5. Place rear thrust hub, tab washer and propeller
nut on propeller shaft.
6. Thread propeller nut onto propeller shaft until nut
is recessed into tab washer.
7. After propeller nut is recessed into tab washer,
tighten nut securely [minimum of 55 Ib. ft. (74.5
N·m) torque].
8. Bend 3 of the tabs of tab washer down in grooves
of rear thrust hub to secure propeller nut. (If tab
washer tabs do not align with slots, continue to
tighten propeller nut to obtain alignment. DO
NOT loosen nut to align tabs.)
CAUTION
DO NOT misinterpret propeller shaft movement
with propeller movement. If propeller and
propeller shaft together move forward-and-aft,
this is normal; however, propeller should not
move forward-and-aft on propeller shaft.
