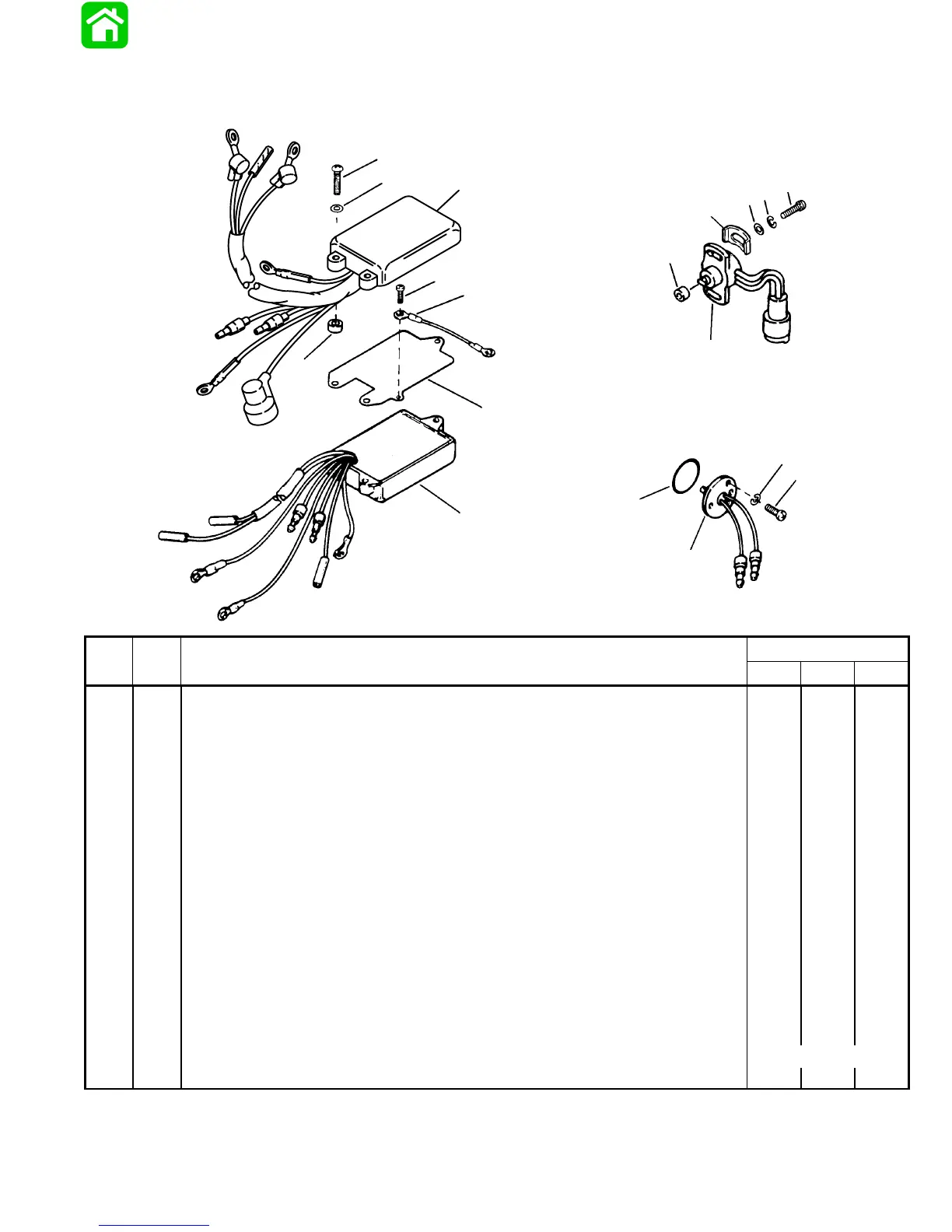

90-824052R3 JUNE 2002 FUEL SYSTEMS - 3D-3

Detonation Controller/Air Temperature Sensor/Throttle

Position Sensor

REF

TORQUE

REF

NO.

QTY. DESCRIPTION lb. in. lb. ft. N·m

1 1 DETONATION CONTROLLER ASSEMBLY

2 3

SCREW 30 3.5

3 3 WASHER

4 1 PLATE

5 1 CABLE ASSEMBLY 200

6 1 SCREW

7 3 BUSHING

8 1 OIL INJECTION WARNING MODULE

9 1 INDICATOR–throttle position

10 2 SCREW 20 2.0

11 2 LOCKWASHER

12 2 WASHER

13 1 SLEEVE

14 2 PLATE

15 1 AIR TEMPERATURE SENSOR ASSEMBLY

16 1 O-RING

17 3 SCREW Drive Tight

18 3 LOCKWASHER
