90-824052R3 JUNE 2002 ATTACHMENTS/CONTROL LINKAGE - 7-21

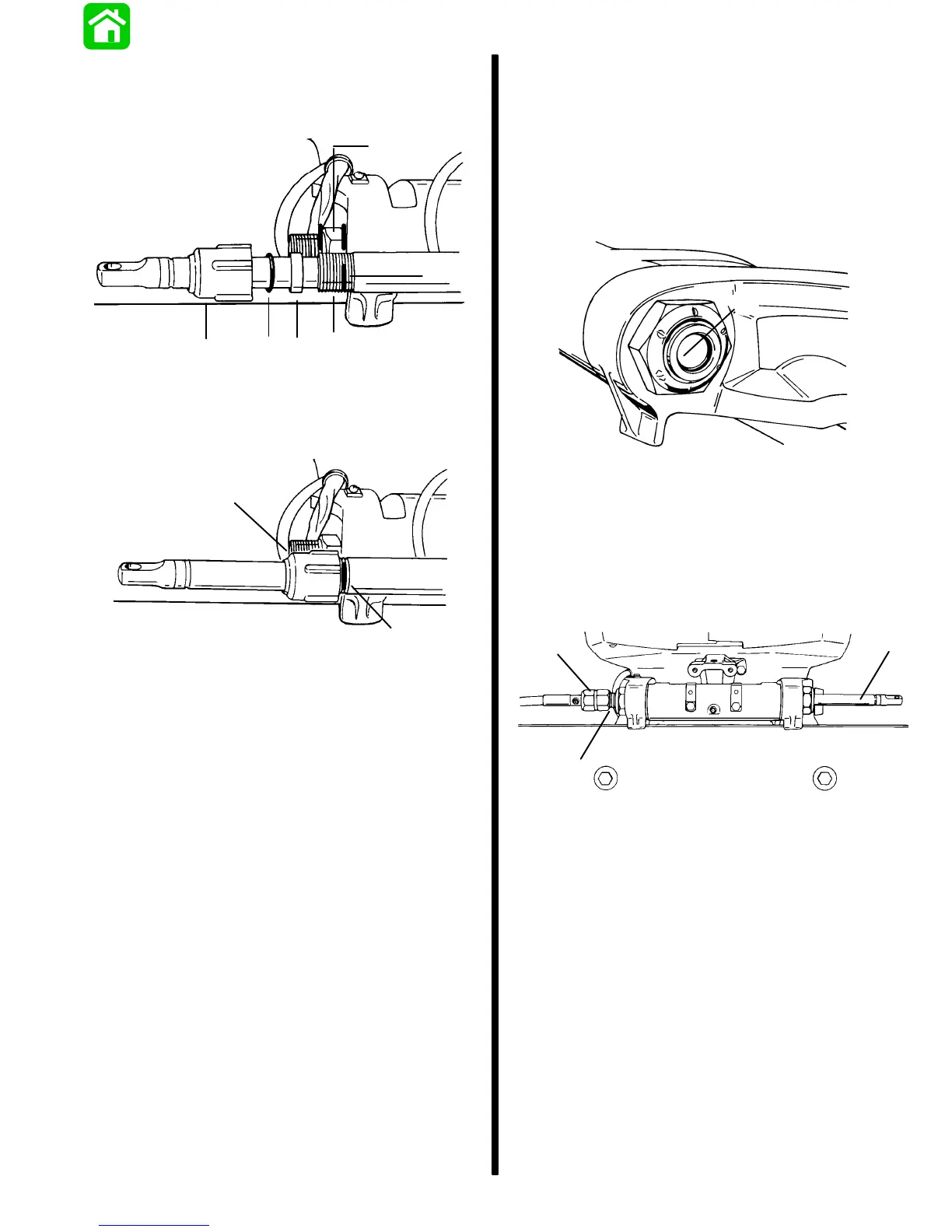

Place a mark (a) on steering cable mounting tube (b)
5/8 in (16mm) from end of mounting tube. Slide
plastic spacer (c), O-ring (d) and cap (e) over steering
cable.
5/8″(16mm)
e
d
c
b
a
51890
Thread cap (e) onto steering cable mounting tube, up
to mark (a).
51888
e
a
STEERING CABLE INSTALLATION -
PORT OUTBOARD
IMPORTANT: Lubricate inside of port outboard’s
tilt tube and rubber O-ring seal located inside tilt
tube with 2-4-C w/Teflon, before installing
steering cable.
Lubricate inside of port outboard’s tilt tube and rubber
O-ring seal (a) with 2-4-C w/Teflon.
51890
a
Insert steering cable end (b) (steering cable routed
down starboard side of boat) thru tilt tube (c) of port
outboard and thread steering cable attaching nut (d)
onto tilt tube hand tight.
NOTE: Torque steering cable attaching nut only after
final steering adjustments have been made.
51887
b
c
d
