5A-12 - MID-SECTION 90-824052R3 JUNE 2002

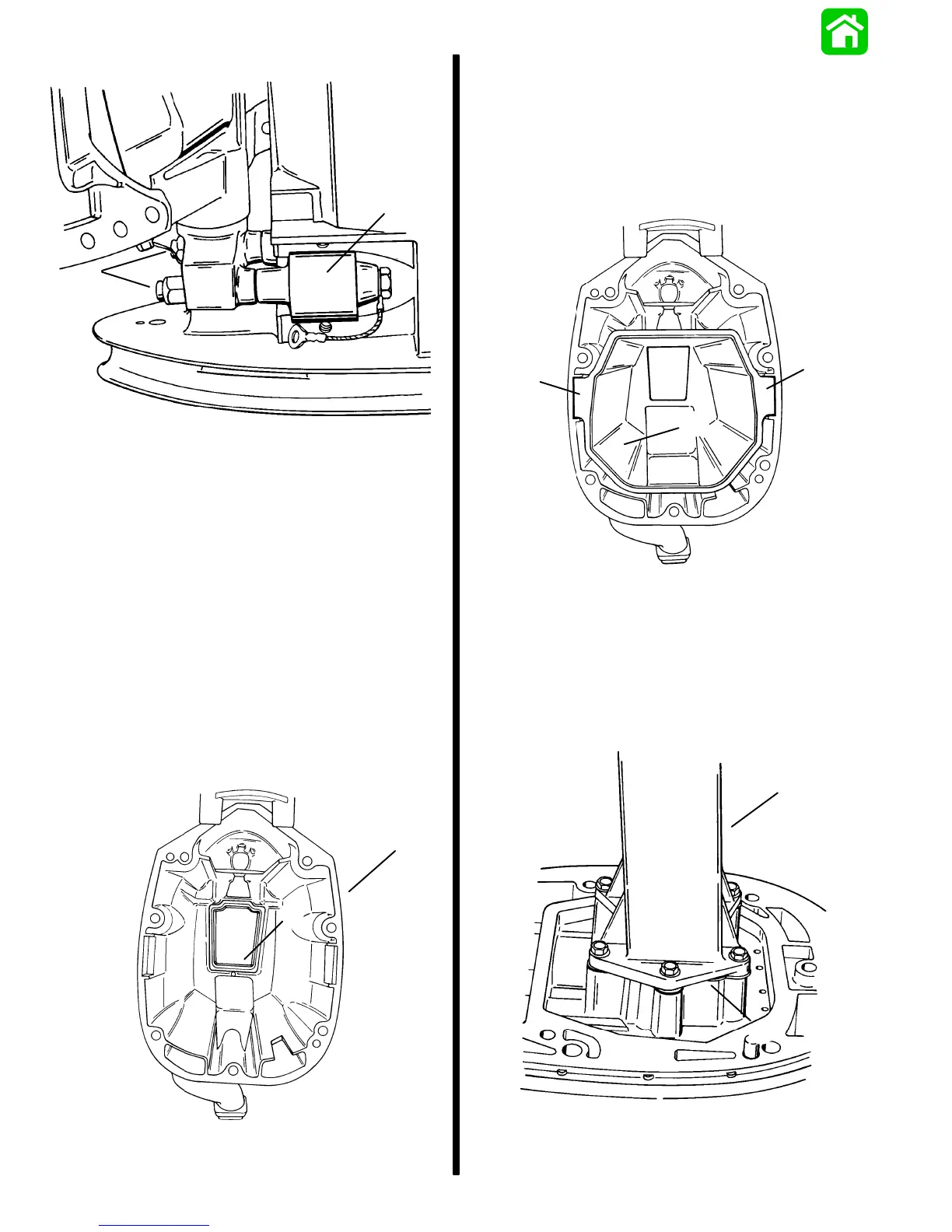

12. Remove lower mount nuts.
b
a
51855
a - Lower Mount Nuts
b - Lower Mount
13. Remove driveshaft housing from swivel bracket
by pulling alternately from top to bottom on
housing.
14. Remove upper and lower mounts by lifting them
out of driveshaft housing.
Reassembly and Installation
1. Apply a thin coat of 2-4-C w/Teflon Marine Lubri-
cant onto inside portion of exhaust tube seal.
2. Install exhaust tube seal into driveshaft housing
with tapered side of seal facing up.
b
a
51856
a - Exhaust Tube Seal
b - Driveshaft Housing
3. Push exhaust tube boots onto tabs on each side
of exhaust tube.
4. Position exhaust tube in drive shaft housing and
push down on tube until boots rest in grooves on
inside of housing.
5. Position driveshaft housing to plate gasket on top
of housing.
51856
b
b
a
a - Exhaust Tube
b - Exhaust Tube Boots
6. Install an exhaust diffuser gasket and exhaust dif-
fuser onto plate, then secure both to plate with 6
bolts. Clean bolts with Loctite 7649 Primer and
then apply Loctite 271 to bolt threads. Torque
bolts to 60 Ib. in. (7.0 N·m).
51857
b
a
a - Exhaust Diffuser Gasket
b - Exhaust Diffuser
To Next Page
