2D-28 - ELECTRICAL 90-824052R3 JUNE 2002
Multi-Function Guage
Dip Switch Setting/Testing
NOTE: The multi-function gauge “Dip Switch” must
be set on the back of gauge prior to operation. Turn
the ignition switch to the “OFF” position before setting
dip switch. The guage will reset to selected settings
when the ignition is turned “On”.
IMPORTANT: Test the gauge and related wiring
BEFORE making final “Dip Switch” settings and
BEFORE securing the gauge to dashboard of
boat.

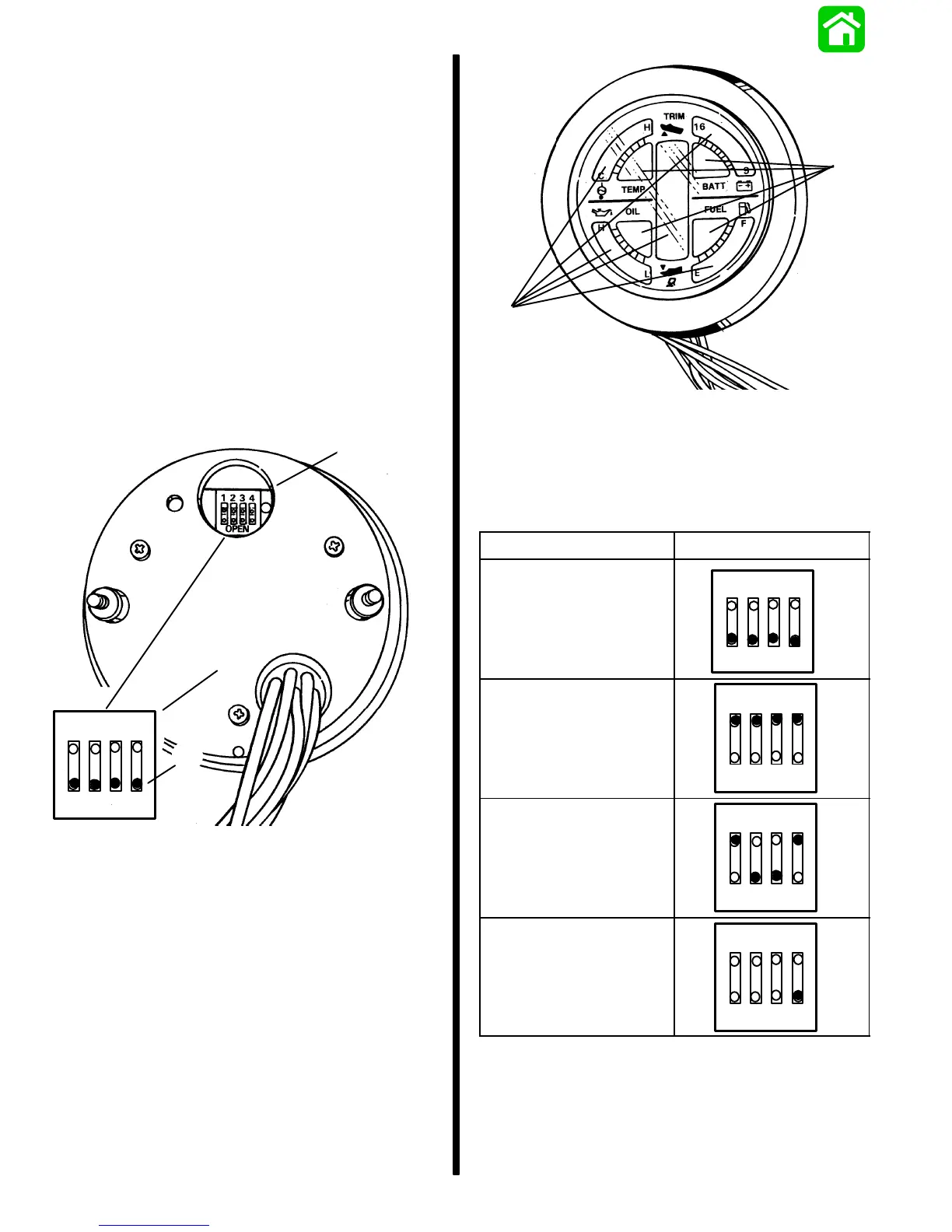

1. With the ignition switch in the “Off” position, set
the muti-function gauge “Dip Switch” in (test)
position as shown. (Black dot indicates switch
position.)
Open
1234
a
a
b
52095
a - “Dip Switch” (shown in test position)
b - Black Dot - Switch in “Open” Position
2. Turn ignition switch to the “Run” position. The
multi-function gauge now is in the display test
mode. The gauge Temp, Batt, Oil, and Fuel red
warning lights should be alternately flashing “On”
and “Off”; the Black L.C.D. bar graphs should be
cycling. (This indicates that all gauge functions
are operational.)
3. Turn ignition switch to the “Off” position. Reset
the gauge “Dip Switch” to the correct operating
position for the outboard application.
b
a
a - Gauge Lights (Red)
b - Gauge L.C.D. Bar Graph (Black)
Outboard Multi-Function Gauge
Setting
Model Dip Switch Setting
Test Display (All)
Open
1234
275 hp (3.4 Litre) Out-
boards
(single engine)
Open
1234
135-250 hp Outboards
(single engine)
Open
1234
“Note” On Dual
Engine/Single Fuel
Tank Applications:
Position Dip Switch 4
“Open” *
Open
1234
* Dip Switch (4) in “Open Position” For Dual Engine Single
Fuel Tank Applications. Switches 1,2,3 Must Be In Specified
Model Position.
