90-824052R3 JUNE 2002 MID-SECTION - 5B-35

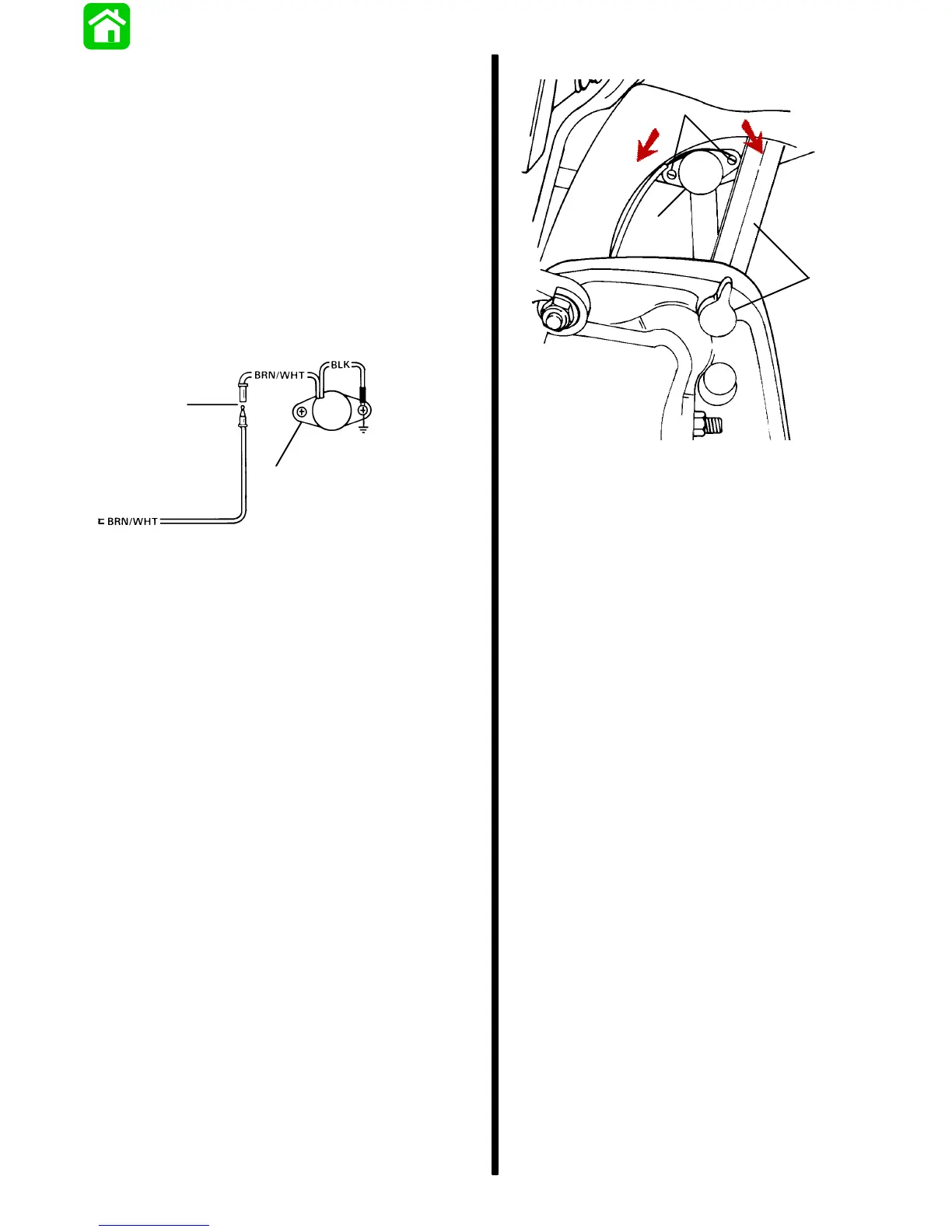

Trim Sender Test
1. Check trim sender BLACK lead for proper
ground.
2. Trim outboard to full “DOWN” position.
3. Place ignition switch to “ON” position.
4. Disconnect BRN/WHT trim sender wire from trim
sender harness.
5. Connect Ohmmeter (Rx1 scale) leads between
outboard ground and Point 1 (trim sender end).
6. Depress “UP” button. Ohmmeter needle should
move as the outboard is trimmed up. If needle
does not move, trim sender is defective.
22908
1
a
a - Trim sender
Trim Indicator Gauge Needle
Adjustment
1. Turn ignition key to “RUN” position.
2. Tilt outboard to full “IN” position. Needle of trim
indicator gauge should be in full “IN” position.
3. If not, tilt outboard to full “OUT” position to gain
access to trim sender and engage tilt lock lever.
4. Loosen trim sender screws and reposition trim
sender.
5. Tighten trim sender screws.
c
b
a
d
e
22744
a - Trim Sender
b - Screws, Loosen to Rotate Sender
c - Turn Sender Counterclockwise to raise needle reading
d - Turn Sender Clockwise
to Lower Needle Reading
e - Tilt lock lever
