90-824052R3 JUNE 2002 FUEL SYSTEMS - 3D-57

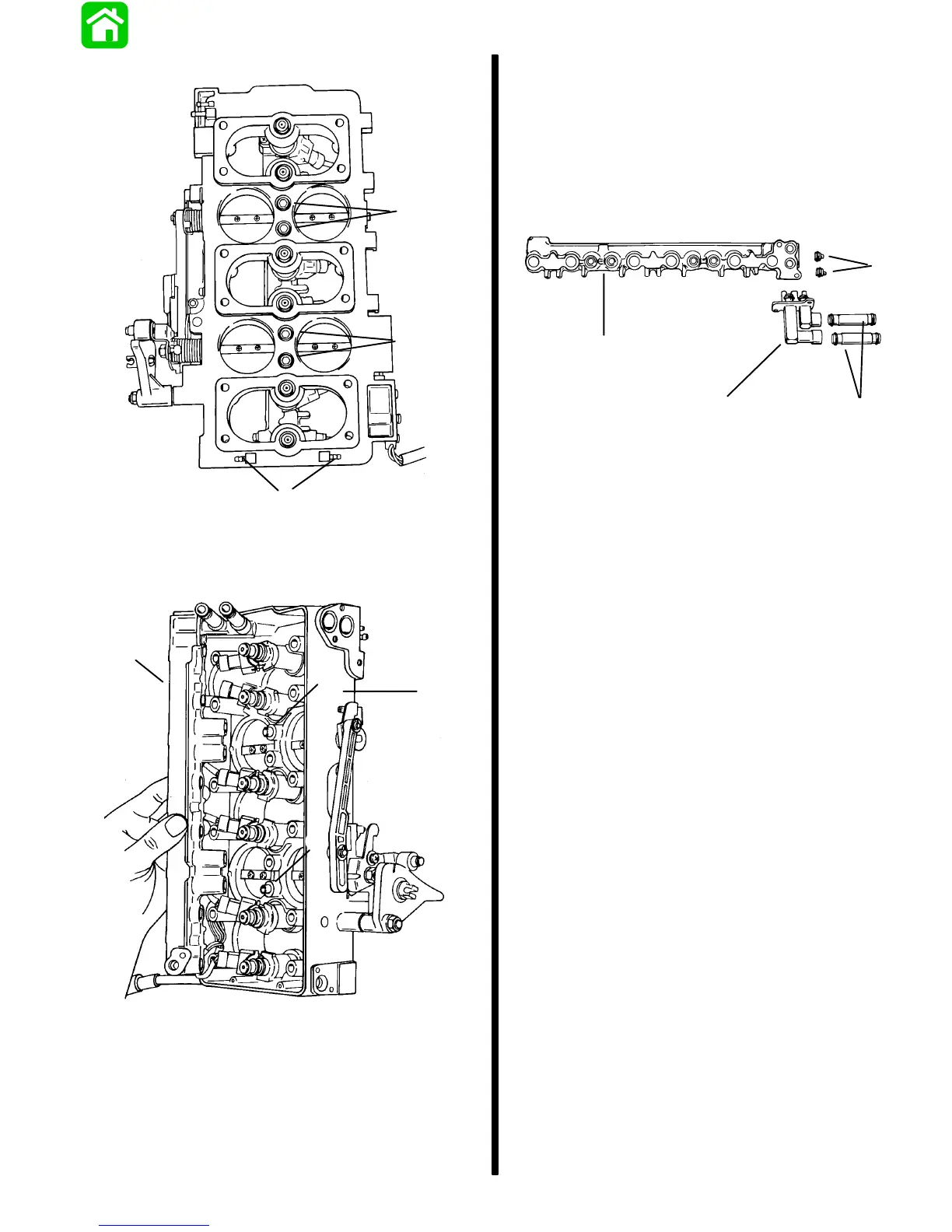

5. Remove 4 screws securing fuel rail to manifold.

51784

a - Screws (4)

b - Early Models Only

6. Lift fuel rail from manifold. Note fuel rail guides.

51788

a - Fuel Rail

b - Manifold

c - Guides

Fuel Rail Disassembly

1. Remove tube support from fuel rail.

2. Remove plugs from fuel rail.

3. Remove tubes from tube support.

4. Remove O-rings from plugs, tube support and

tubes.

51795

a - Tube Support

b - Fuel Rail

c - Tubes

d - Plugs
