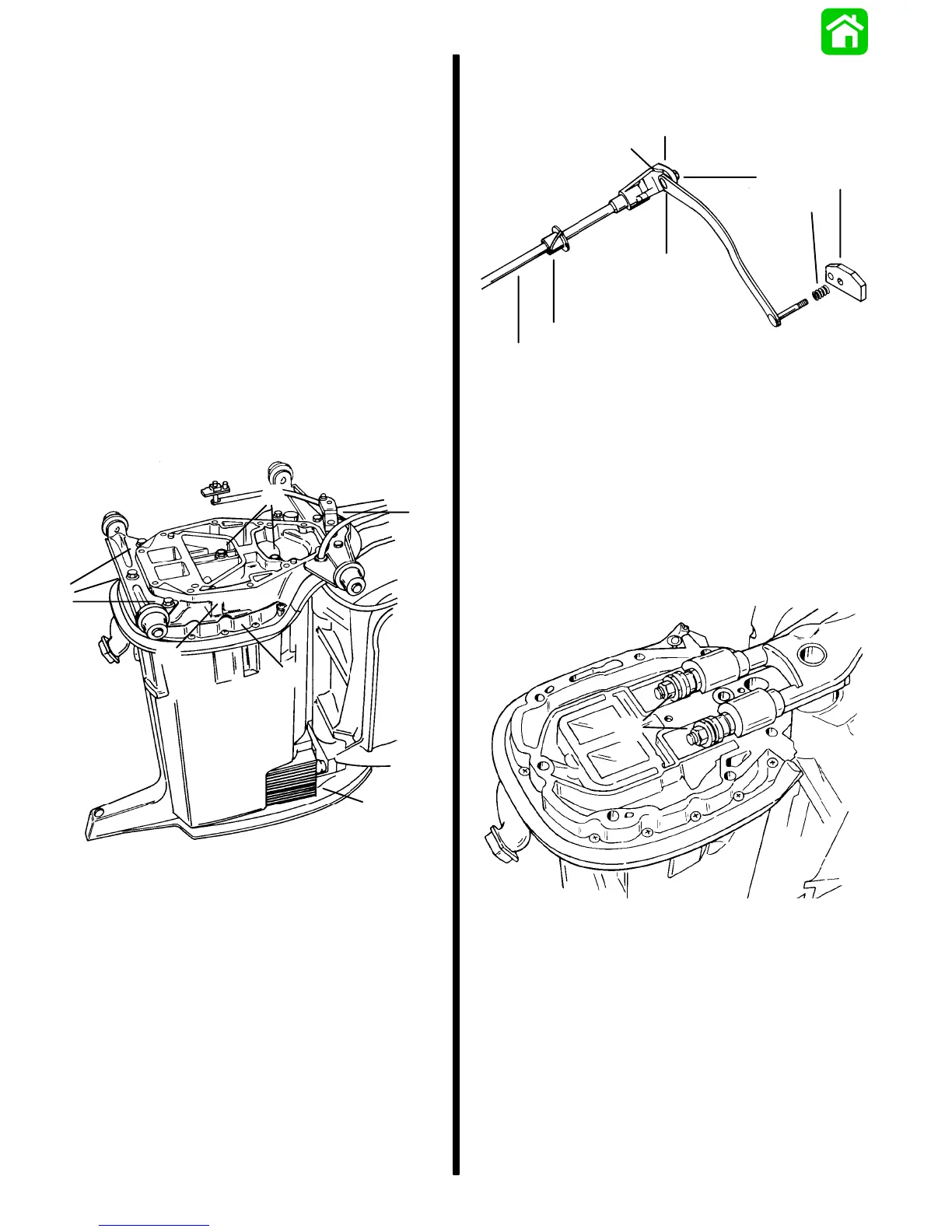

5A-10 - MID-SECTION 90-824052R3 JUNE 2002
Drive Shaft Housing and
Dyna-Float Suspension
Refer to “Powerhead Removal” Section to
Remove Powerhead. Refer to “Lower Unit
Removal” in This Section to Remove Lower Unit.
Removal and Disassembly
1. Remove shift shaft from driveshaft housing by
pulling straight up on shaft.
2. Remove 5 bolts which secure exhaust extension
plate to drive shaft housing. After bolts are
removed, lift exhaust extension plate off drive
shaft housing.
3. Remove screws, which secure lower mount
covers to drive shaft housing, then remove
covers.
a
e
f
b
d
c
51858
a - Shift Shaft Linkage
b - Exhaust Extension Plate
c - Exhaust Plate to Drive Shaft Housing Bolts
d - Driveshaft Housing Plate
e - Lower Mount Cover (One Each Side)
f - Mounting Bracket Bolts
SHIFT LINKAGE ASSEMBLY
a
b
c
d
d
f
g
e
51858
a - Shift Shaft Assembly
b - Bushing
c - Lock Nut
d - Washer (2)
e - Bushing (Hidden)
f - Spring
g - Guide Block
4. Remove upper mount nuts and flat washers.
a
51857
a - Upper Mount Nuts
To Next Page
