3D-46 - FUEL SYSTEMS 90-824052R3 JUNE 2002

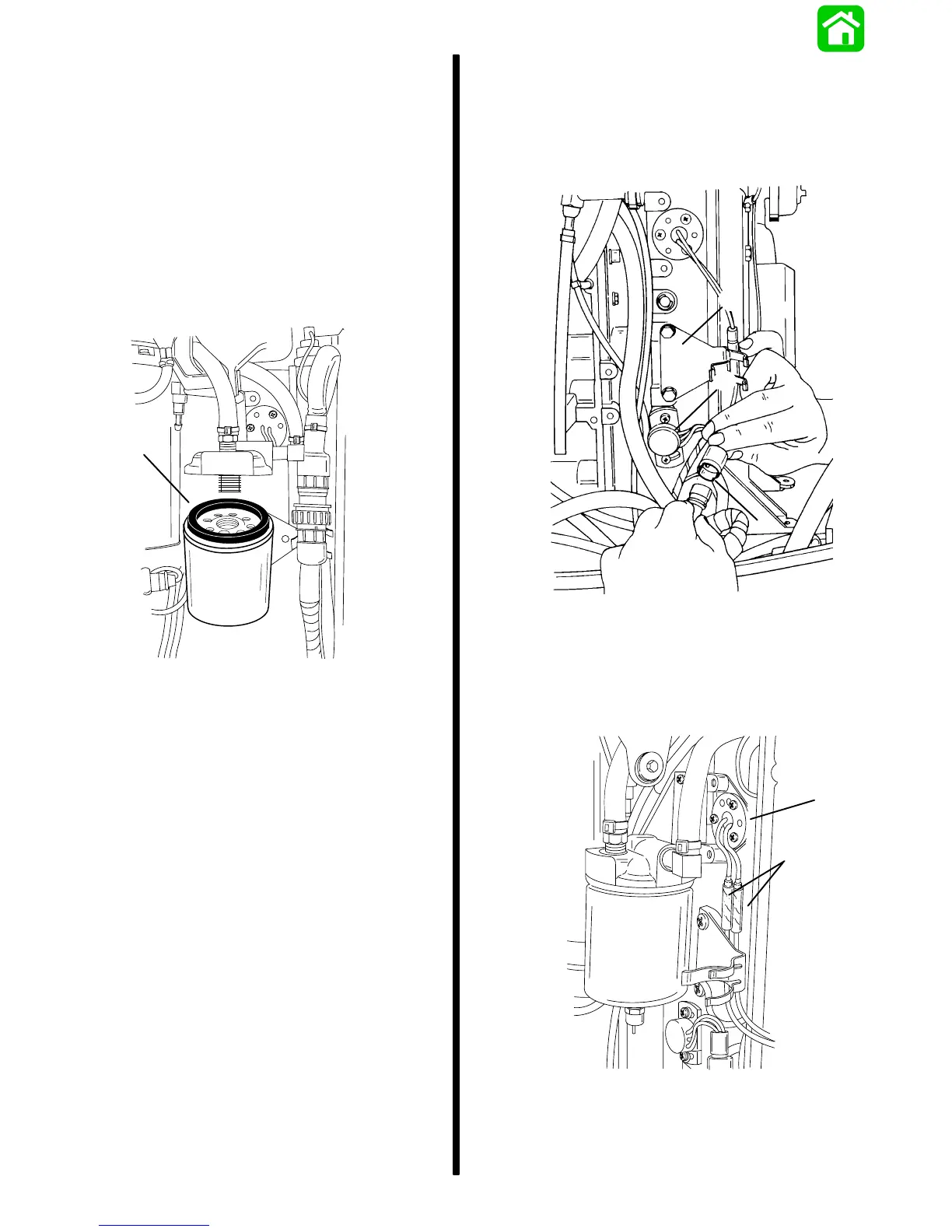

Water Separating Filter Assembly
Installation
IMPORTANT: Apply a light coat of outboard oil to
the rectangular sealing ring on the water
separator before installation.
1. After applying oil to sealing ring of water
separator, install separator onto bracket.
2. HAND TIGHTEN SEPARATOR. DO NOT use
strap wrench or other tool to tighten separator.
3. Reconnect water sensor lead to bottom of
separator.
55185
a
a - Sealing Ring
Throttle Position Sensor and
Temperature Sensor Fuel Injector
Harness Disconnections
1. Disconnect throttle position sensor at 3 pin
connector and remove ECM harness bracket.
b
a
51787
c
a - Throttle Position Sensor
b - 3 Pin Connector
c - Bracket
2. Disconnect air temperature sensor at
connectors.
b
a
55195
a - Air Temperature Sensor
b - Connectors
To Next Page
