90-824052R3 JUNE 2002 FUEL SYSTEMS - 3D-65

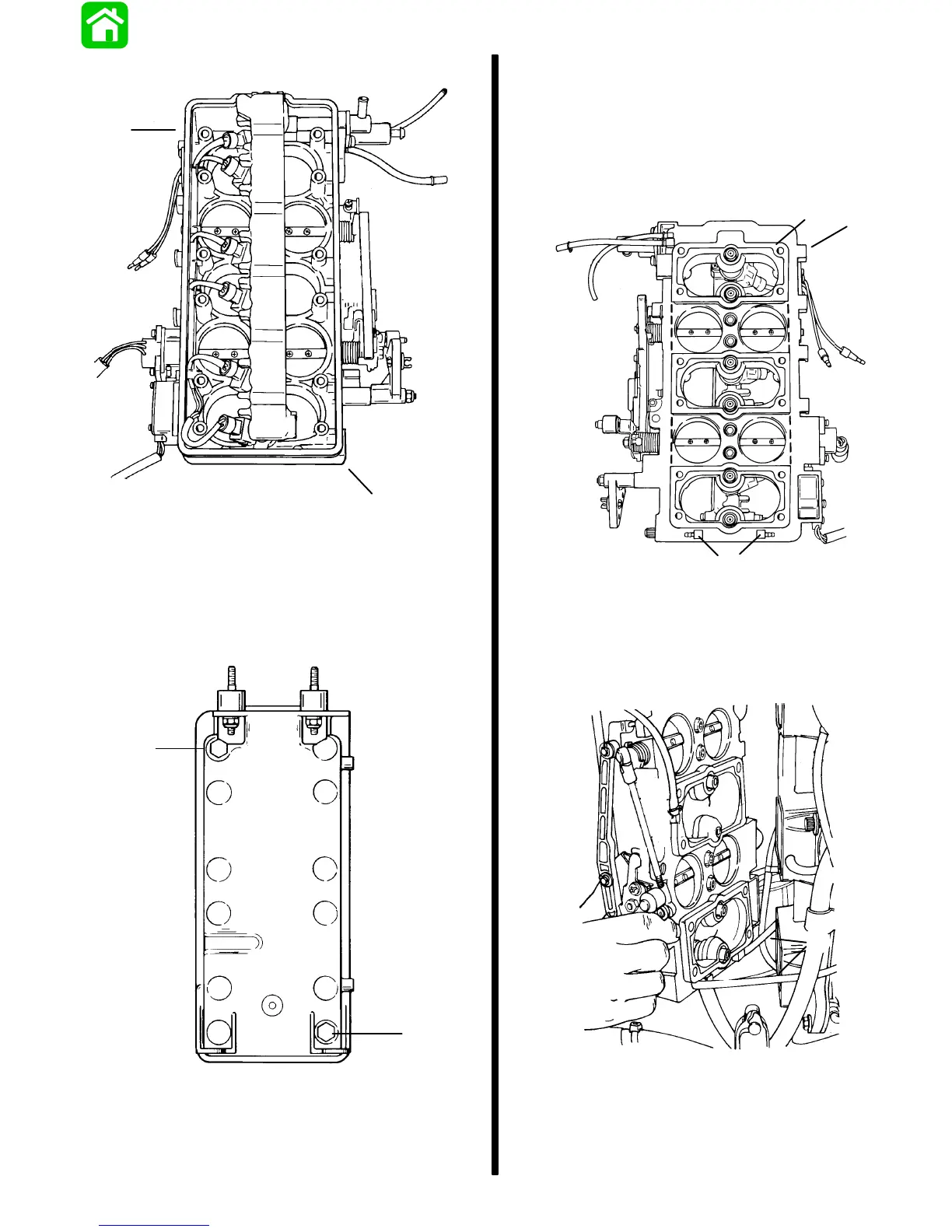

3. Carefully install manifold cover seal to manifold.
a
b
51785
a - Cover Seal
b - Manifold
4. Install manifold cover to manifold and secure with
M8 x 1.25 x 38mm long bolts through holes.
NOTE: This will aid in induction manifold installation.
a
a
a - Holes
EFI Induction Manifold
Installation
1. Install new gasket on induction manifold as
shown. Removing dotted line sections after
manifold installation.
b
a
51784
c
a - Gasket
b - Induction Manifold
c - Early Models Only
2. With induction manifold held in place, connect
bleed line hoses to manifold fittings.
51795
a
a - Bleed Hoses
To Next Page
