90-824052R3 JUNE 2002 ELECTRICAL - 2D-5

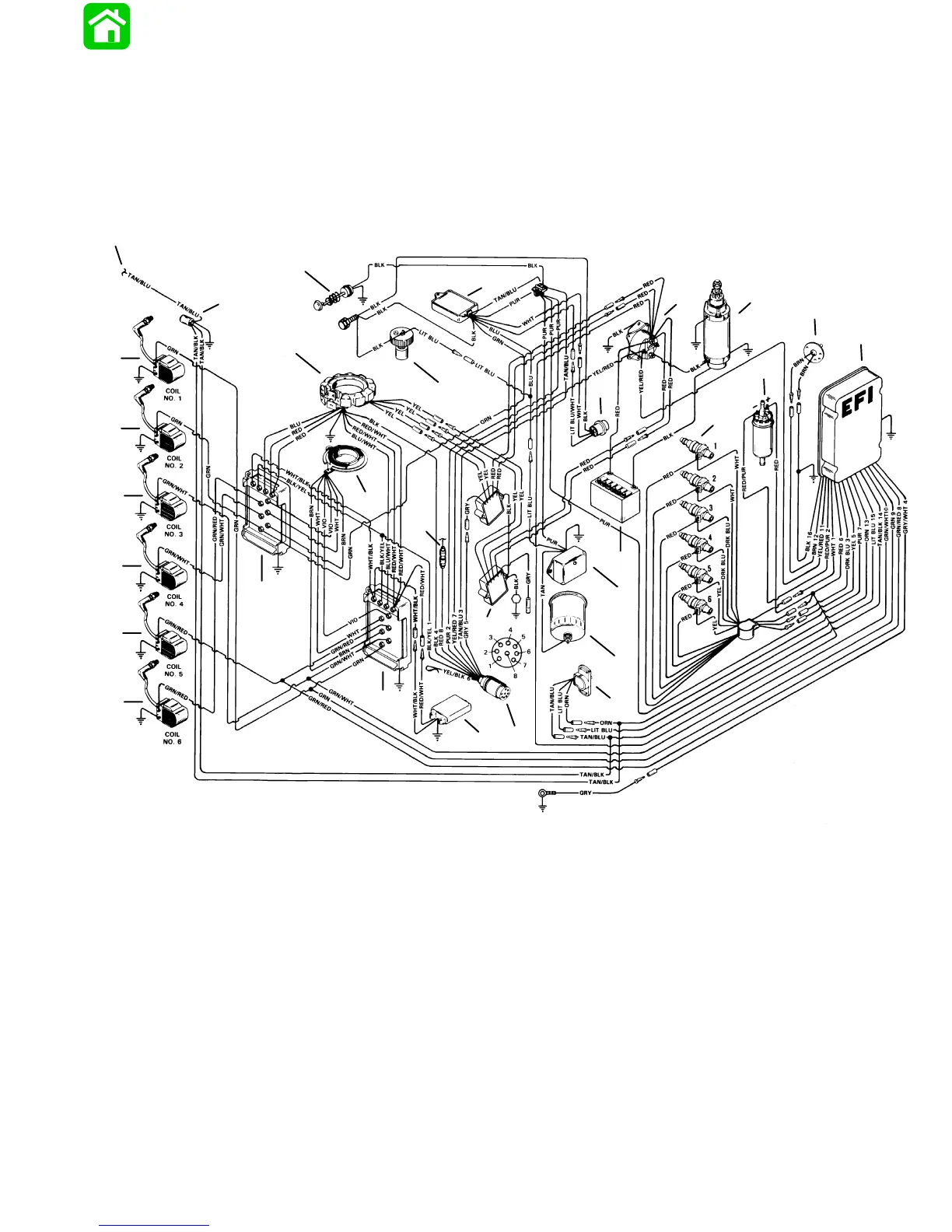

Wiring Diagram 150/175 EFI
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
PUR = PURPLE
54352
RED = RED
TAN = TAN
VIO = VIOLET
WHT = WHITE
YEL = YELLOW
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1 - Water Temperature Switch
2 - Warning Module
3 - Starter Solenoid
4 - Starter Motor
5 - Air Temperature Sensor
6 - Electronic Control Unit
7 - Fuel Pump
8 - Injectors
9 - 12 Volt Battery
10- Rotational Sensor
11- Water Sensing Warning Module
12- Water Separating Filter
13- Throttle Position Sensor
14- Idle Stabilizer
15- Engine Harness Connector
16- Voltage Regulator (2)
17- 20 Ampere Fuse (To Trim Solenoid)
18- Outer Switch Box
19- Inner Switch Box
20- Trigger
21- Stator
22- Oil Tank Cap
23- To Temperature Gauge
24- Temperature Sensor
25- Coil # 1
26- Coil # 2
27- Coil # 3
28- Coil # 4
29- Coil # 5
30- Coil # 6
To Next Page
