3D-56 - FUEL SYSTEMS 90-824052R3 JUNE 2002

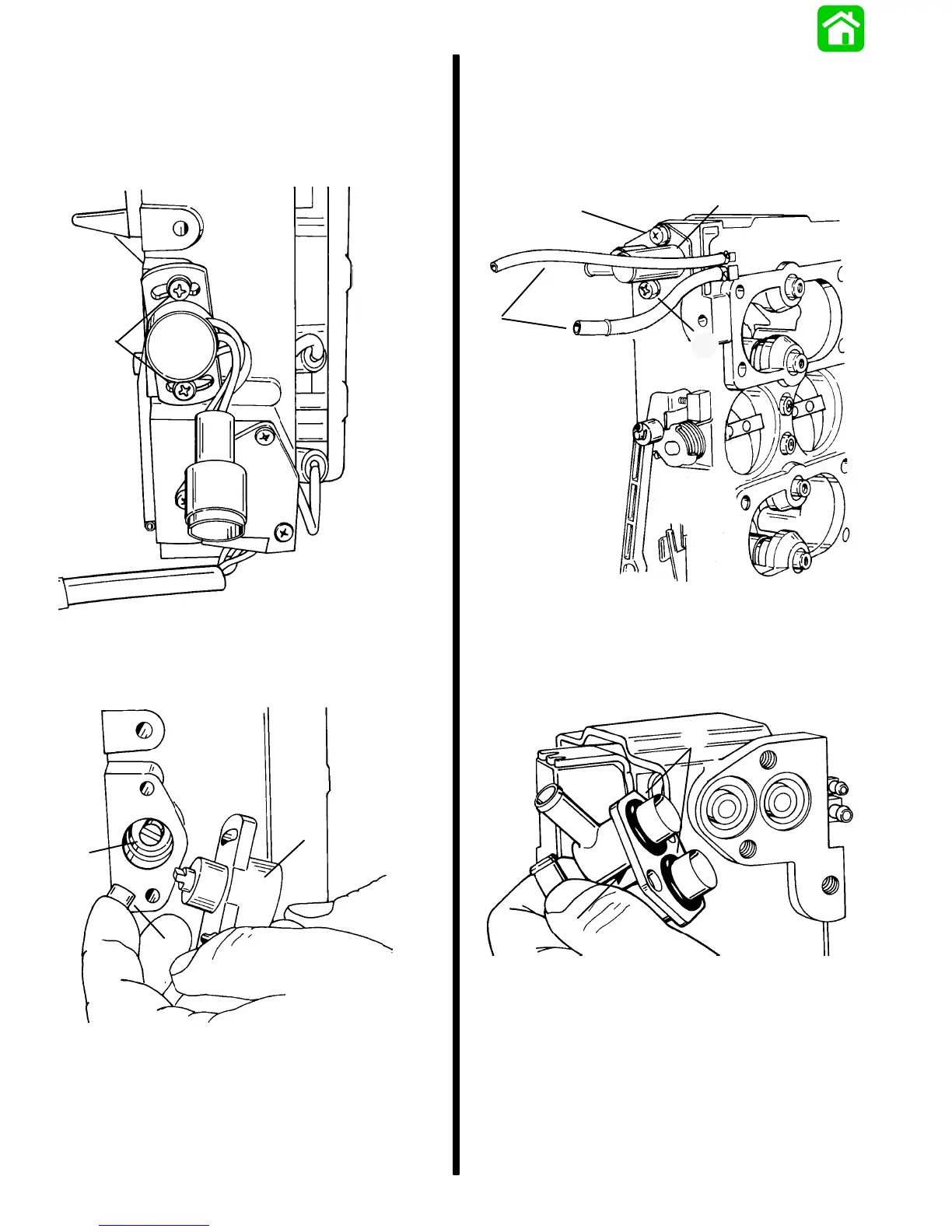

Throttle Position Sensor Removal

IMPORTANT: Sensor position will need to be set

after induction manifold assembly has been

installed.

1. Remove throttle position sensor screws.

51790

a - Screws

2. Remove sensor and sleeve from throttle shaft.

51788

a - Sensor

b - Sleeve

c - Throttle Shaft

Fuel Rail Removal

1. Remove manifold vacuum hoses.

2. Remove engine bleed hose.

3. Remove screws securing manifold fitting to

manifold.

51789

a - Vacuum Hoses

b - Screws

c - Manifold Fitting

4. Remove manifold fitting and O-rings.

51791

a - Manifold Fitting

b - O-Rings
