5B-34 - MID-SECTION 90-824052R3 JUNE 2002

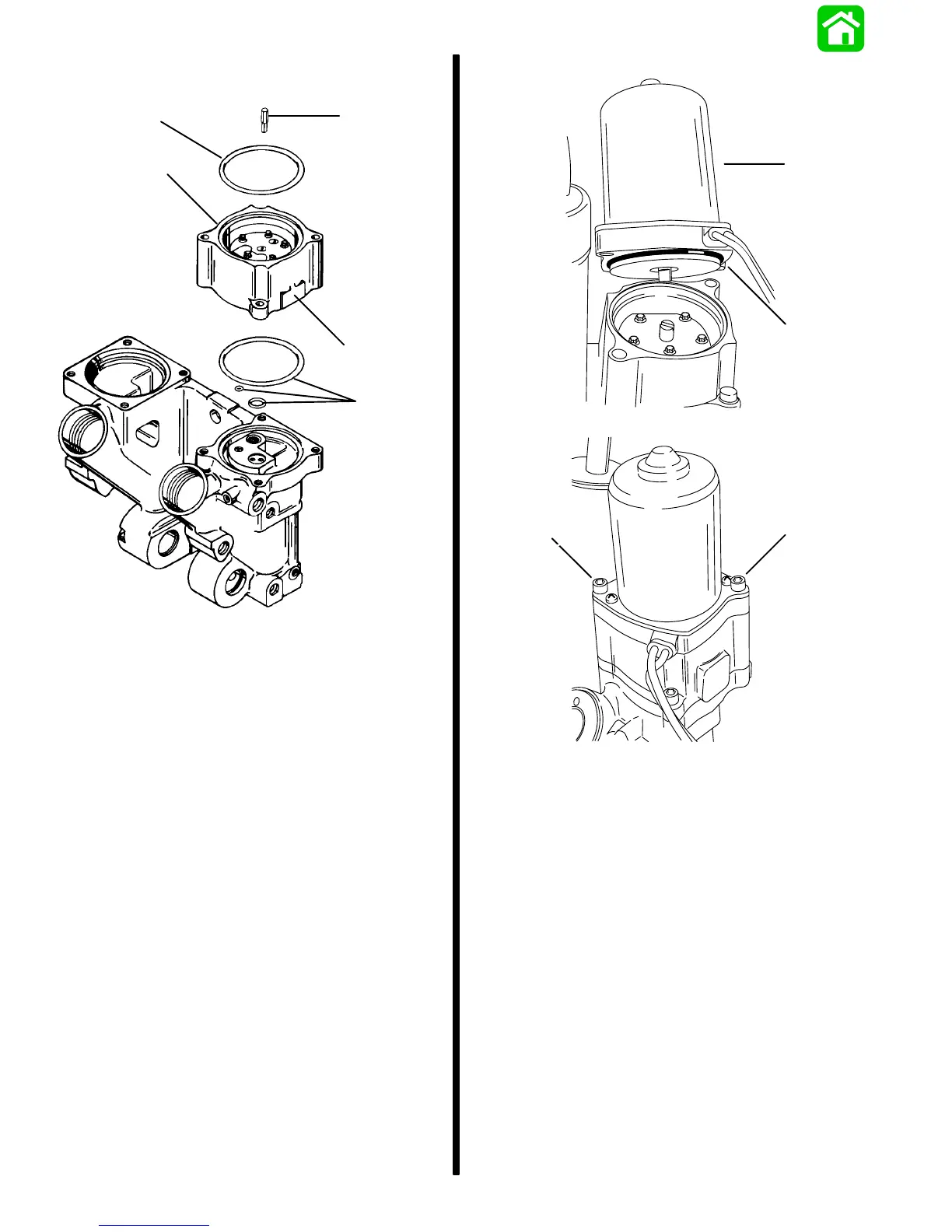

IMPORTANT: Install pump with location flat
facing towards starboard transom bracket.
51433
d
c
a
c
b
a - Pump (Flat Towards Starboard Transom Bracket)
b - Flat - Faces Starboard Transom Bracket)
c - O-rings (4)
d - Drive Shaft (Install in Center Hole in Pump)
2. Fill pump with Quicksilver Power Trim and
Steering Fluid prior to installing motor.
3. Install motor, secure with two (2) screws. Route
wiring; refer to Wiring Diagrams in this service
manual.
NOTE: Verify motor and drive shaft are aligned.
53782
a
b
53777
c
c
a - Motor
b - O-ring
c - Screw (2) Tighten securely.
4. Complete reassembly of Power Trim System as
outlined in “Installation” on page 5B-16.
Priming Power Trim System
Fill system with Quicksilver Power Trim and Steering
Fluid or Automatic Transmission Fluid (ATF) Type F,
FA, Dexron II or Dexron III. Refer to “Check, Fill and
Purge” on page 5B-7.
IMPORTANT: Run Trim System in short “jogs”
until pump motor primes and trim system moves.
If trim motor is run without priming pump, drive
shaft failure could result.
