90-824052R3 JUNE 2002 FUEL SYSTEMS - 3C-61

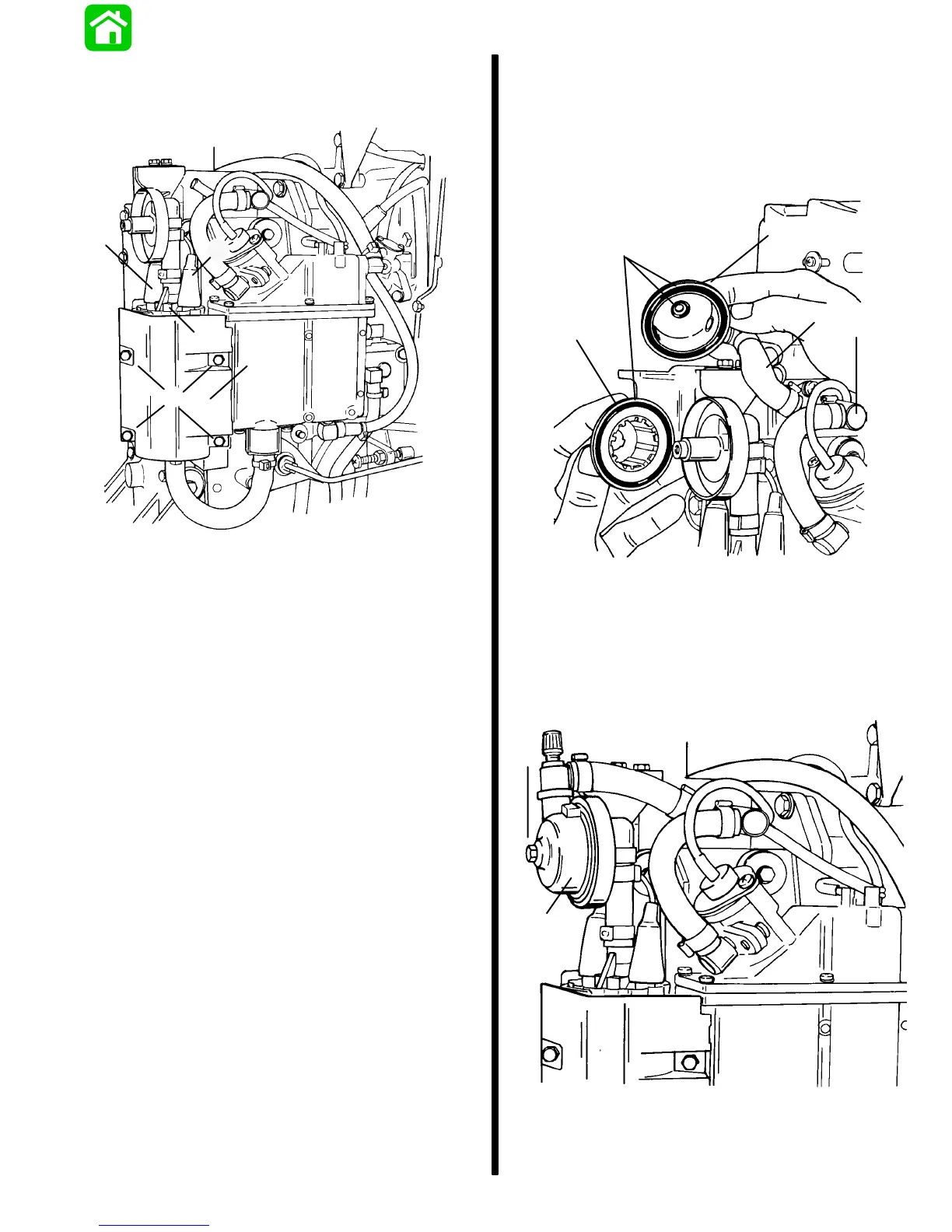

5. Install rubber boots on electric fuel pump cap.

6. Install cover plate using four (4) screws. Tighten

securely.

51786

a - Rubber Boots

b - Pump Cap

c - Cover Plate

d - Screws (4)

Final Filter Assembly Installation

1. Install fuel rail inlet hose and cap to manifold

fitting.

2. Install O-ring to filter and cap as shown.

3. Install final filter.

51786

a - Fuel Rail Inlet Hose

b - Cap

c - Manifold Fitting

d - O-Ring

e - Filter

4. Install screw to final filter assembly. Tighten

screw securely.

51785

a - Screw

b - Final Filter
