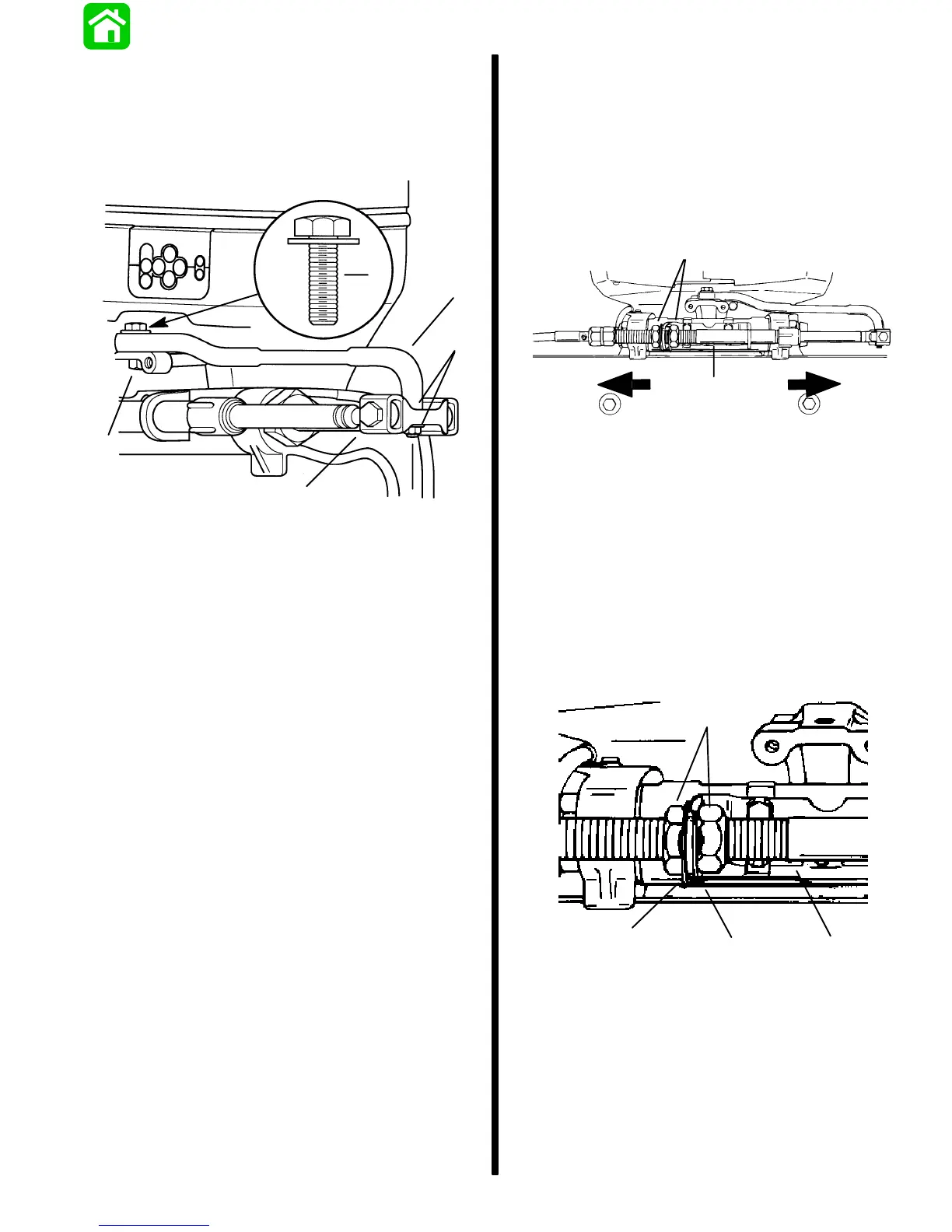

90-824052R3 JUNE 2002 ATTACHMENTS/CONTROL LINKAGE - 7-11
Lubricate ball joint in steering link rod with SAE 30W
Motor Oil. Secure link rod to outboard steering arm,
using special washer head bolt (10-14000) provided
and nylon insert locknut as shown. Torque special
bolt to 20 Ib. ft. (27.0 N·m), then torque locknut to 20
Ib. ft. (27.0 N·m).
28172
e
b
c
d
a
f
a - Steering Coupler
b - Steering Link Rod
c - Flat Washer (2)
d - Nylon Insert Locknut - Torque until it seats [DO NOT
exceed 120 lb. in. (13.5 N·m) of torque], then back nut off
1/4 turn
e - Special Washer Head Bolt (10-14000) - Torque to 20 lb. ft.
(27.0 N·m)
f - Nylon Insert Locknut - Torque to 20 lb. ft. (27.0 N·m)
STEERING SYSTEM TENSION ADJUSTMENT
IMPORTANT: After this dual steering cable
attachment kit is installed, there must be proper
tension in forward mounted steering cable tor
this attachment kit to operate properly. Not
enough tension will cause slack (or play) in
steering system. Too much tension will cause
steering cables to bind. Perform the following
steps to adjust for correct tension.
Loosen adjustment nuts and pull steering cable
mounting tube (by hand) away from end of steering
cable (to remove slack in steering system). Tighten
adjustment nuts against mounting bracket and check
system for slack (play.) If steering system is too tight,
readjust tube toward end of steering cable or, if too
much slack (play) exists in system, readjust tube
away from end of steering cable. Tighten nuts
against mounting bracket and readjust, if necessary.
51887
b
a
d
c
a - Steering Cable Mounting Tube
b - Adjustment Nuts
c - Adjust Tube in This Direction to Remove Slack from
Steering System
d - Adjust Tube in This Direction to Reduce Tension from
Steering System
After steering system tension is adjusted correctly,
tighten adjustment nuts against mounting bracket, to
a torque of 35 Ib. ft. (47.5 N·m) and bend a tab lock
washer against flat on each adjustment nut.
b
c
c
a
51887
a - Steering Cable Mounting Tube
b - Adjustment Nuts; Torque to 35 lb. ft. (47.5 N·m)
c - Tab Lock Washer (Bend Against Flat on Each Adjustment
Nut)
