90-824052R3 JUNE 2002 FUEL SYSTEMS - 3B-41
2. Install spring, throttle lever, spacer, tab washer
and nut. Bend tab washer against flats of nuts.
3. Install throttle link and screw.
51863
d
b
c
a
f
g
e
a - Tab Washer
b - Nut
c - Spacer
d - Throttle Lever
e - Throttle Shaft
f - Screw
g - Throttle Link

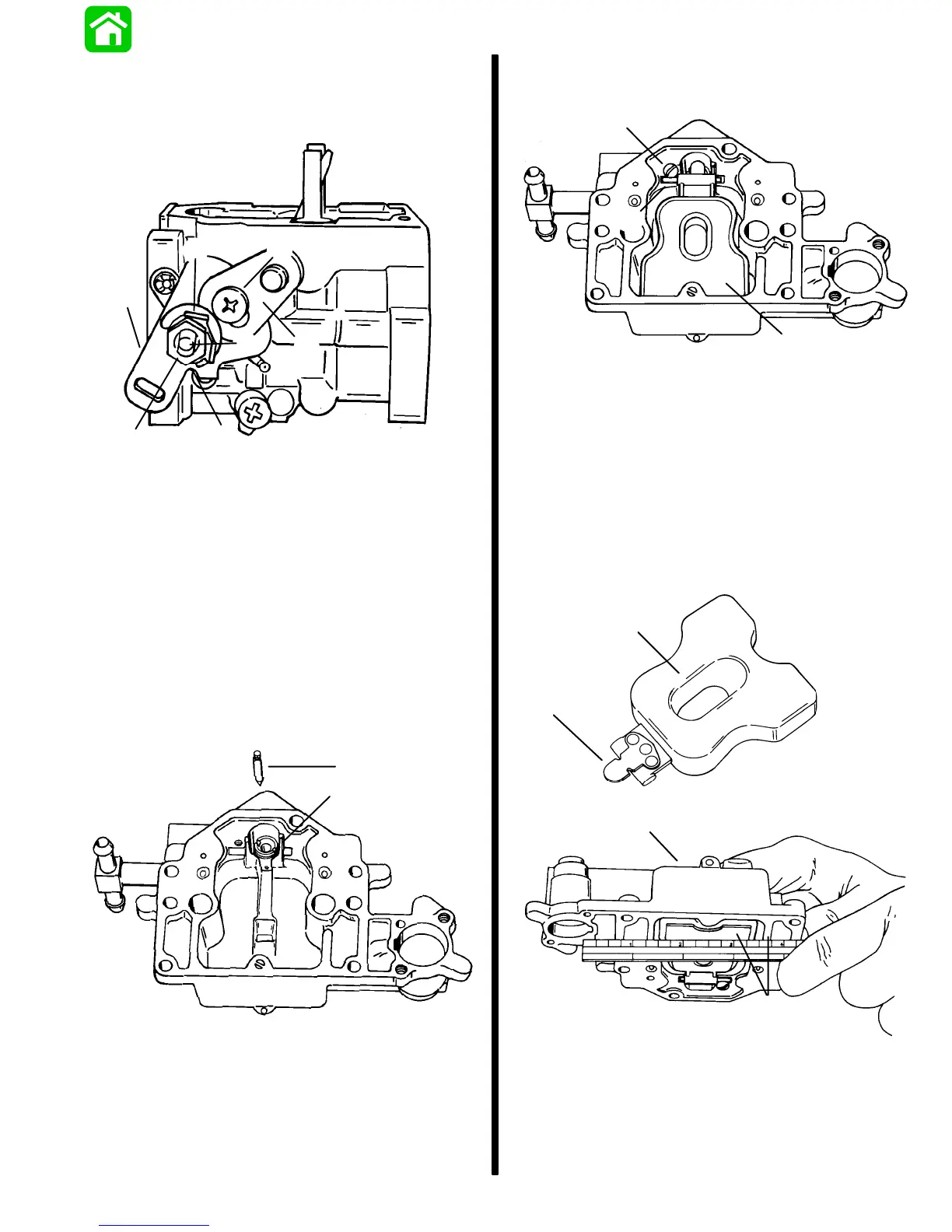

Fuel Bowl Reassembly
1. Install inlet needle seat with gasket into fuel bowl.
2. Install inlet needle into inlet needle seat as
shown.
a
b
51859
a - Inlet Needle Seat
b - Inlet Needle
3. Install float with float pin to fuel bowl. Secure in
place with retained screw.
51863
a
c
b
a - Screw
b - Float Pin
c - Float
NOTE: Float height adjustment is the only adjust-
ment made to adjust float setting.
4. Adjust float height by turning fuel bowl
upside-down, then adjust float tab until float is
level with edge of fuel bowl. Adjust float tab if
necessary.
a
d
b
c
a - Float (Adjust by bending tab)
b - Fuel Bowl (Upside-Down)
c - Float Level Even with Bowl Edge
d - Float Tab
