90-824052R3 JUNE 2002 LOWER UNIT - 6B-39
securely. Continue to apply pressure against
driver rod until reverse gear/bearing cup adaptor
JUST SEATS in gearcase. DO NOT
OVER-SEAT the adaptor as the reverse gear
bearing will be damaged.
NOTE: As Bearing Cup Adaptor begins to seat,
the effort required to turn screw will increase con-
siderably.
d
e
c
51884
a
b

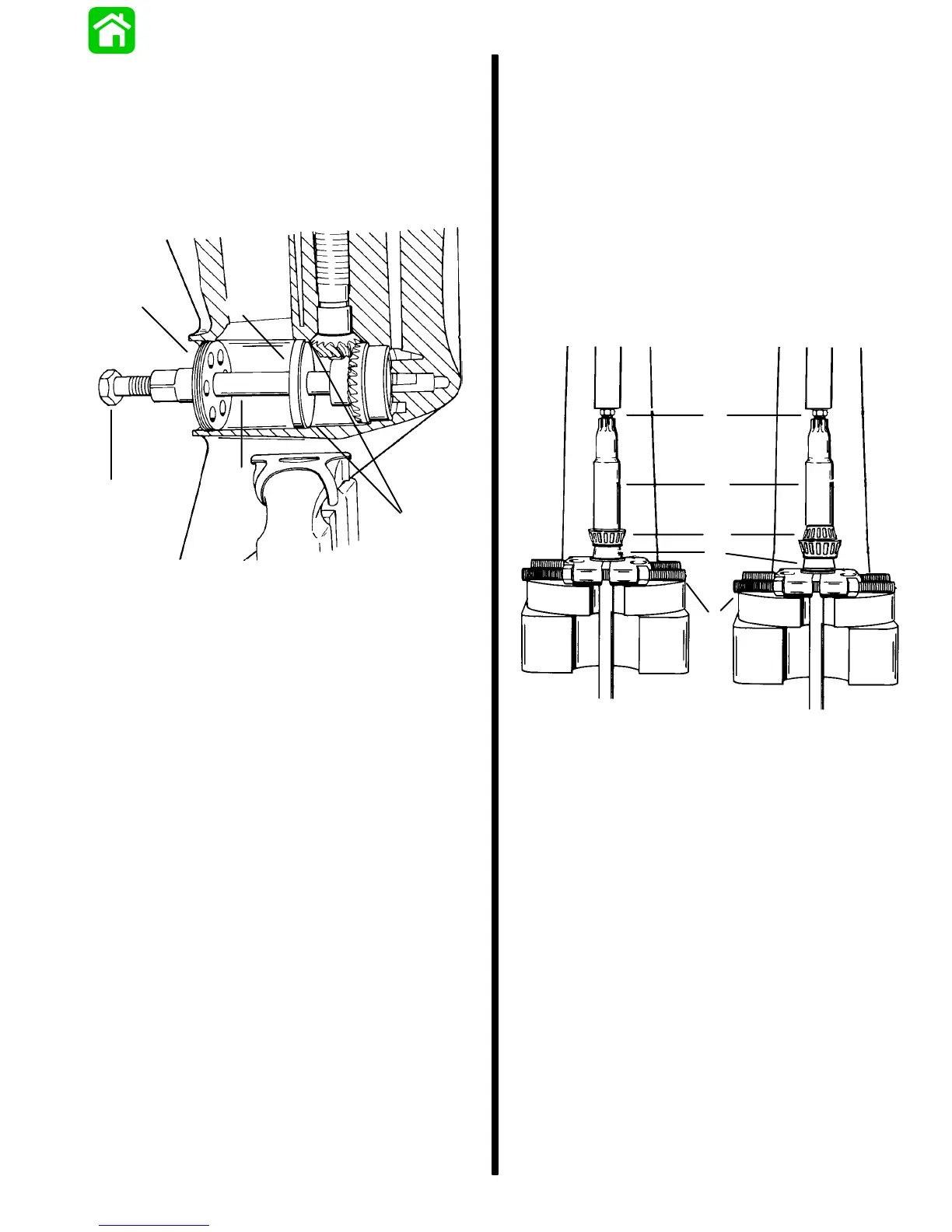

a - Pilot Ring (91-18603)
b - Driver Tool (91-18605)
c - Inner Ledge
d - Retainer (91-18604)
e - Screw (10-18602)
Driveshaft and Pinion Gear
REASSEMBLY/INSTALLATION
1. Apply a light coat of Quicksilver Super Duty Gear
Lubricant on l.D. of driveshaft tapered bearing.
Sport Master only - Apply High Pressure
Grease (such as Chicago Manufacturing and
Distributing Lube #3) to the I.D. of both bearings.
2. Thread a used pinion nut onto end of driveshaft.
Leave approximately 1/16″ (2mm) of nut threads
exposed. Driveshaft threads MUST NOT extend
beyond nut or thread damage could result while
pressing.
3. Place bearing over driveshaft.
Sport Master only - Both bearings can be
installed on the driveshaft in one operation. Place
the smaller bottom bearing over the driveshaft
with the numbers on the bearing facing the top of
the shaft. Place the larger top bearing exactly
opposite by having the numbers facing the pinion
end of the shaft. While holding bearings in place,
invert the driveshaft and place assembly in a
press.
4. Using an old driveshaft bearing inner race or
other suitable mandrel (which applies pressing
force on center bearing race only), press bearing
onto shaft until seated.
a
b
c
d
e
Illustration on Left is for all gear cases except
Sport Master. Right illustration is for Sport
Master
a - Used Pinion Nut
b - Driveshaft
c - Tapered Bearing(s)
d - Old Bearing Inner Race
e - Universal Puller Plate
