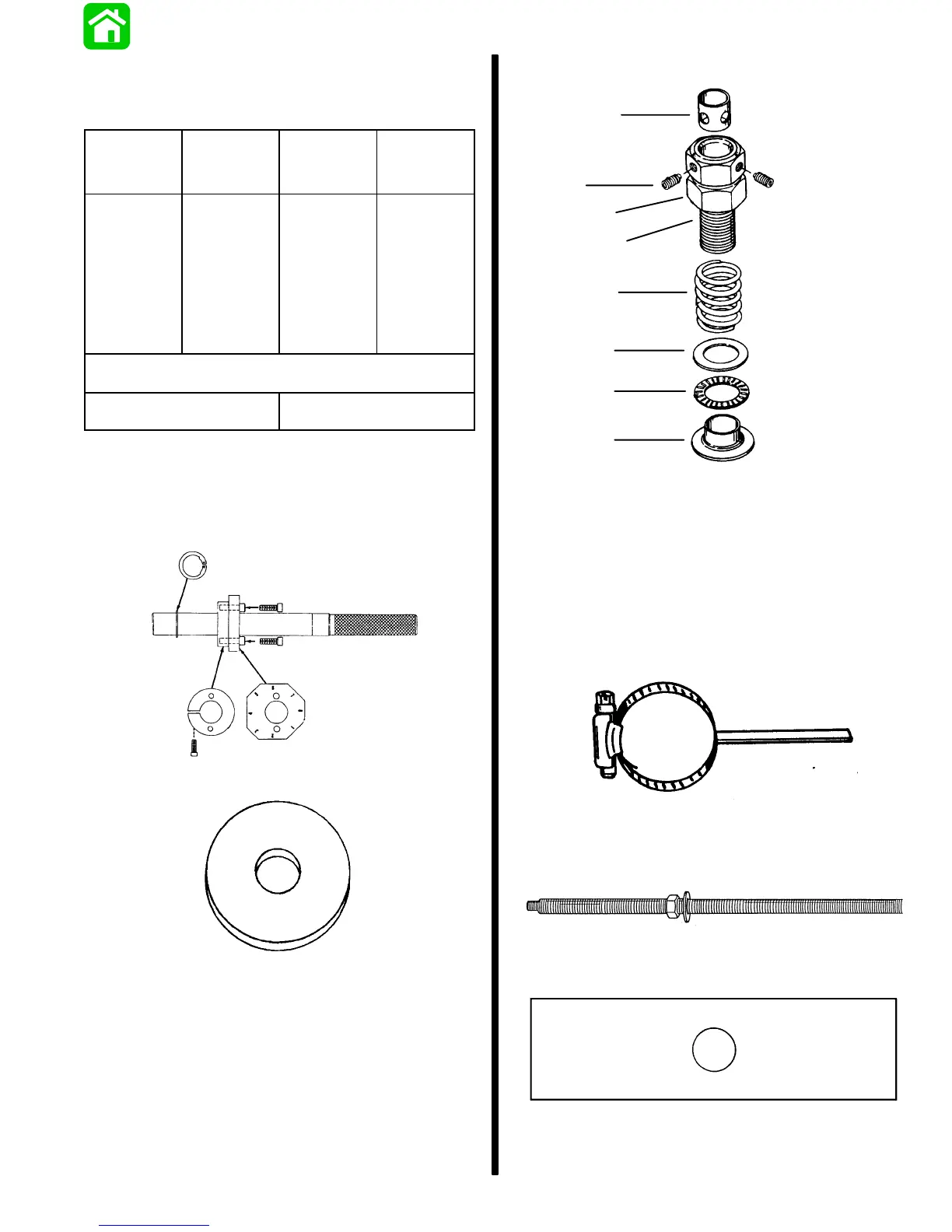

90-824052R3 JUNE 2002 LOWER UNIT - 6C-1

Gear Housing Specifications

(1.78:1 Ratio)

Ratio Pinion

Depth

Forward

Gear

Backlash

Reverse

Gear

Backlash

1.78:1

(14/25

teeth)

0.025 in.

(0.635mm)

With Tool

91-12349A

2 Using

Disc #1

and Flat

0.016 in. to

0.019 in.

(0.41mm

0.48mm)

Pointer on

line mark

0.030 in. to

0.050 in.

(0.762mm

1.27mm)

Gearcase Lubricant Capacity

1.78:1 Ratio 21.0 fl. oz. (621.0ml)

Special Tools

Pinion Gear Locating Tool 91-12349A2

Pilot 91-36571

74187

Bearing Preload Tool 91-14311A1

a - Adaptor (N.S.S.)

b - Bearing (N.S.S.)

c - Washer (N.S.S.)

d - Spring (24-14111)

e - Bolt (10-12580)

f - Nut (11-13953)

g - Set Screw (10-12575)

h - Sleeve (23-13946)

Backlash Indicator Tool 91-19660

Puller Rod 91-31229 and Nut 91-24156

Puller Plate 91-29310

74190
