3C-56 - FUEL SYSTEMS 90-824052R3 JUNE 2002

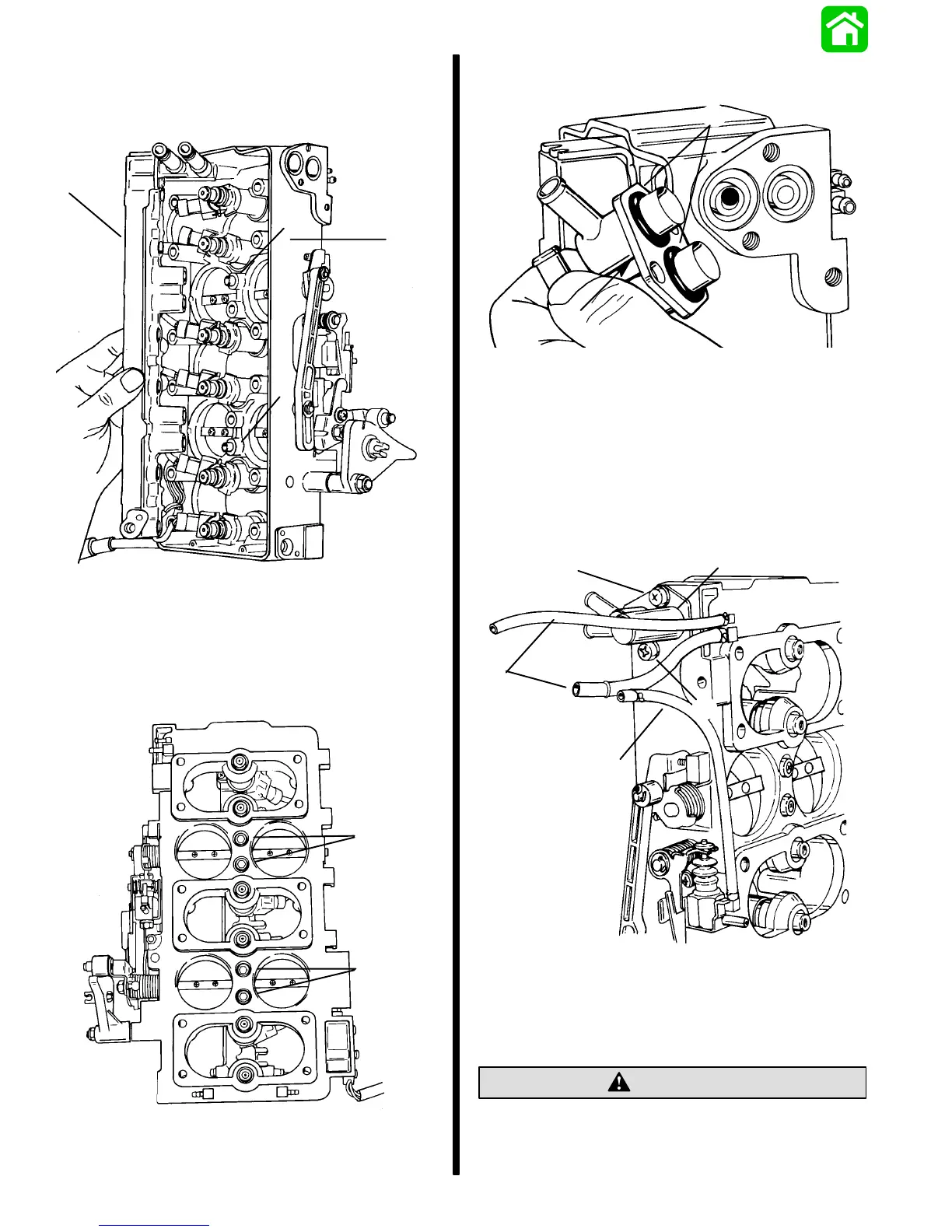

Fuel Rail Installation
1. With fuel rail guides in place, install fuel rail to
manifold.
51788
c
c
b
a
a - Fuel Rail
b - Manifold
c - Guides
2. Install 4 screws securing fuel rail to manifold.
Torque to 35 Ib. in. (4.0 N·m).
a
a
51784
a - Screws (4)
3. Install O-rings to manifold fitting. Install fitting to
manifold.
e
51791
b
a
a - O-Rings
b - Fitting
4. Install screws securing manifold fitting to
manifold.
5. Install engine bleed hose.
6. Install manifold vacuum hoses.
a
b
c
d
c
51789
a - Vacuum Hoses
b - Bleed Hose
c - Screws
d - Manifold Fitting
CAUTION
Use extreme care when installing induction
manifold so as to eliminate any possibility for air
leaks.
To Next Page
