90-824052R3 JUNE 2002 FUEL SYSTEMS - 3D-49

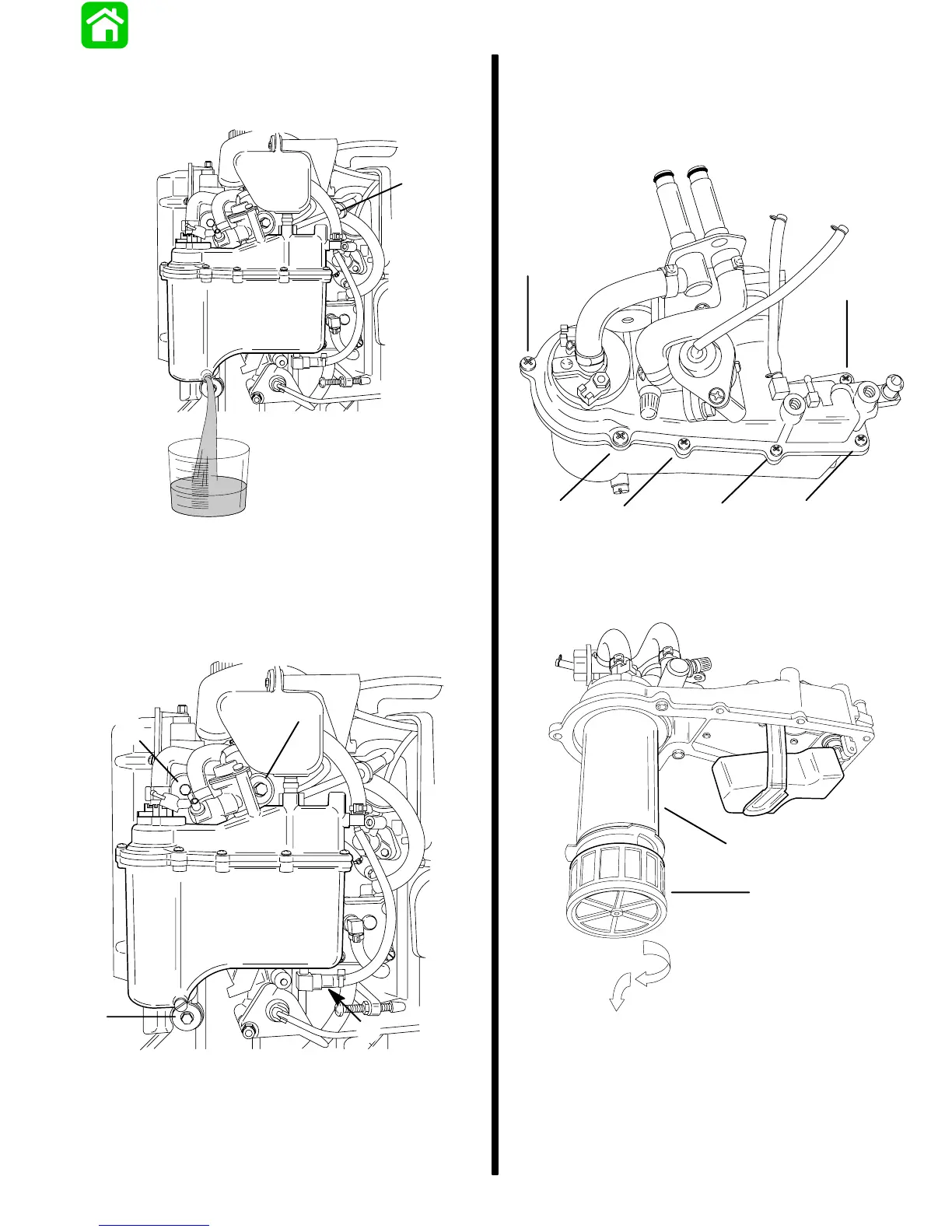

6. Remove drain screw from separator and drain
fuel into suitable container.
7. Remove fuel inlet hose to vapor separator.
55177
a
a - Fuel Inlet Hose
8. Disconnect and plug oil inlet hose to vapor
separator.
9. Remove 3 bolts securing separator to manifold
assembly.
a
b
b
b
55176
a - Oil Inlet Hose
b - Bolts
Vapor Separator Disassembly
Remove 9 screws securing cover to vapor separator
and remove separator tank.
55209
a
a
aa
a
a
a - Screws (3 screws are hidden on back side)
FINAL FILTER REMOVAL
Rotate final filter counterclockwise and pull down.
55205
a
b
a - Final Filter
b - Electric Fuel Pump
To Next Page
