2D-8 - ELECTRICAL 90-824052R3 JUNE 2002

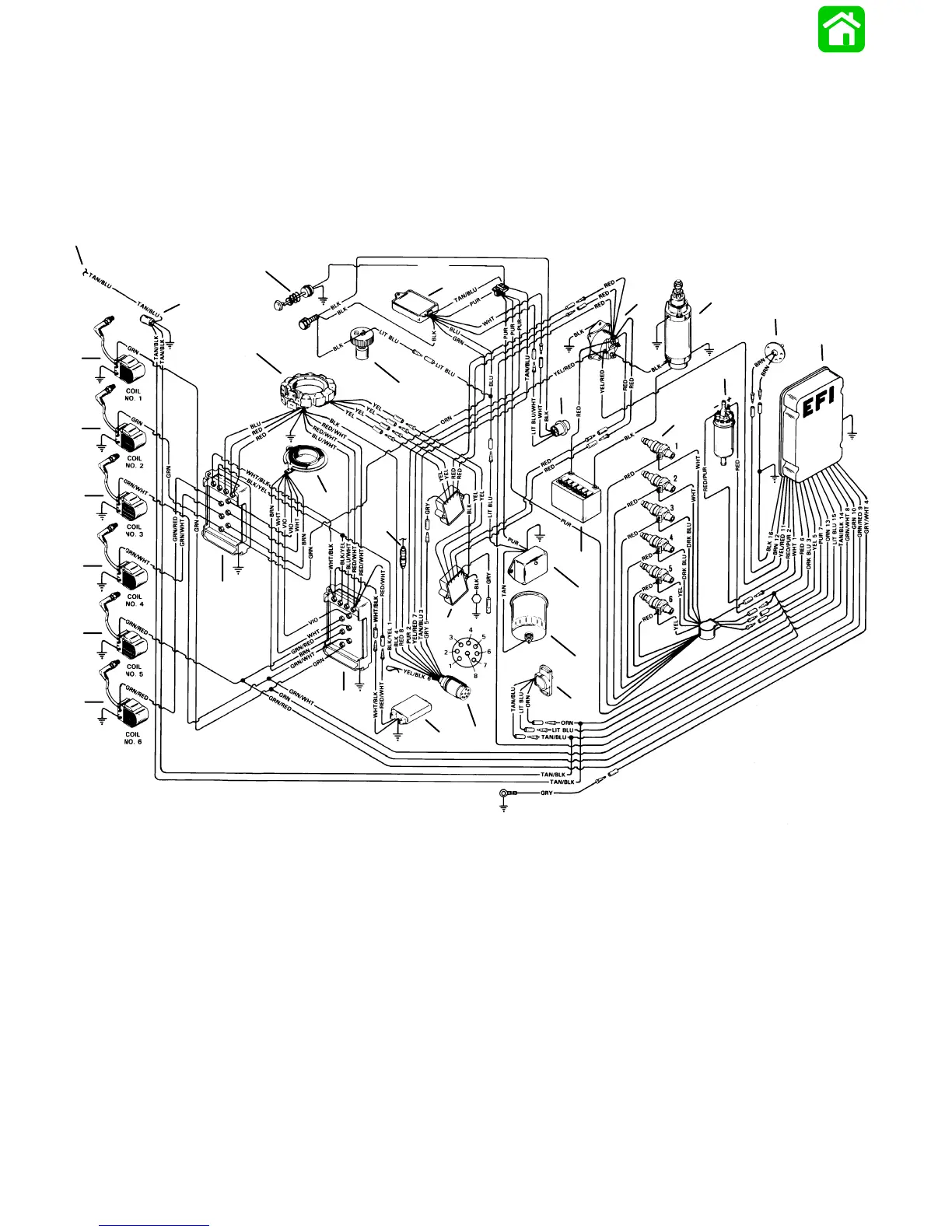

Wiring Diagram 150/200/225 Pro Max/Super Magnum

BLK = BLACK

BLU = BLUE

BRN = BROWN

GRY = GRAY

GRN = GREEN

PUR = PURPLE

54352

RED = RED

TAN = TAN

VIO = VIOLET

WHT = WHITE

YEL = YELLOW

TAN/BLU

1 - Water Temperature Switch

2 - Warning Module

3 - Starter Solenoid

4 - Starter Motor

5 - Air Temperature Sensor

6 - Electronic Control Unit

7 - Fuel Pump

8 - Injectors

9 - 12 Volt Battery

10- Rotational Sensor

11- Water Sensing Warning Module

12- Water Separating Filter

13- Throttle Position Sensor

14- Idle Stabilizer

15- Engine Harness Connector

16- Voltage Regulator (2)

17- 20 Ampere Fuse (To Trim Solenoid)

18- Outer Switch Box

19- Inner Switch Box

20- Trigger

21- Stator

22- Oil Tank Cap

23- To Temperature Gauge

24- Temperature Sensor

25- Coil # 1

26- Coil # 2

27- Coil # 3

28- Coil # 4

29- Coil # 5

30- Coil # 6
