7-4 - ATTACHMENTS/CONTROL LINKAGE 90-824052R3 JUNE 2002
8. Dual Outboard Installations: Align vertical
centerline of template with each outboards’
selected centerline on boat transom. Refer to
caution, preceding.
9. Use a 17/32 in. (13.5mm) diameter drill bit and
drill 4 mounting holes perpendicular to and thru
transom at marked hole centers on template.
Lifting Outboard
WARNING
Make sure that lifting eye is threaded into
flywheel a minimum of 5 turns and that hoist has
a minimum lift capacity of at least 500 lbs. (227
kg.) BEFORE lifting outboard.

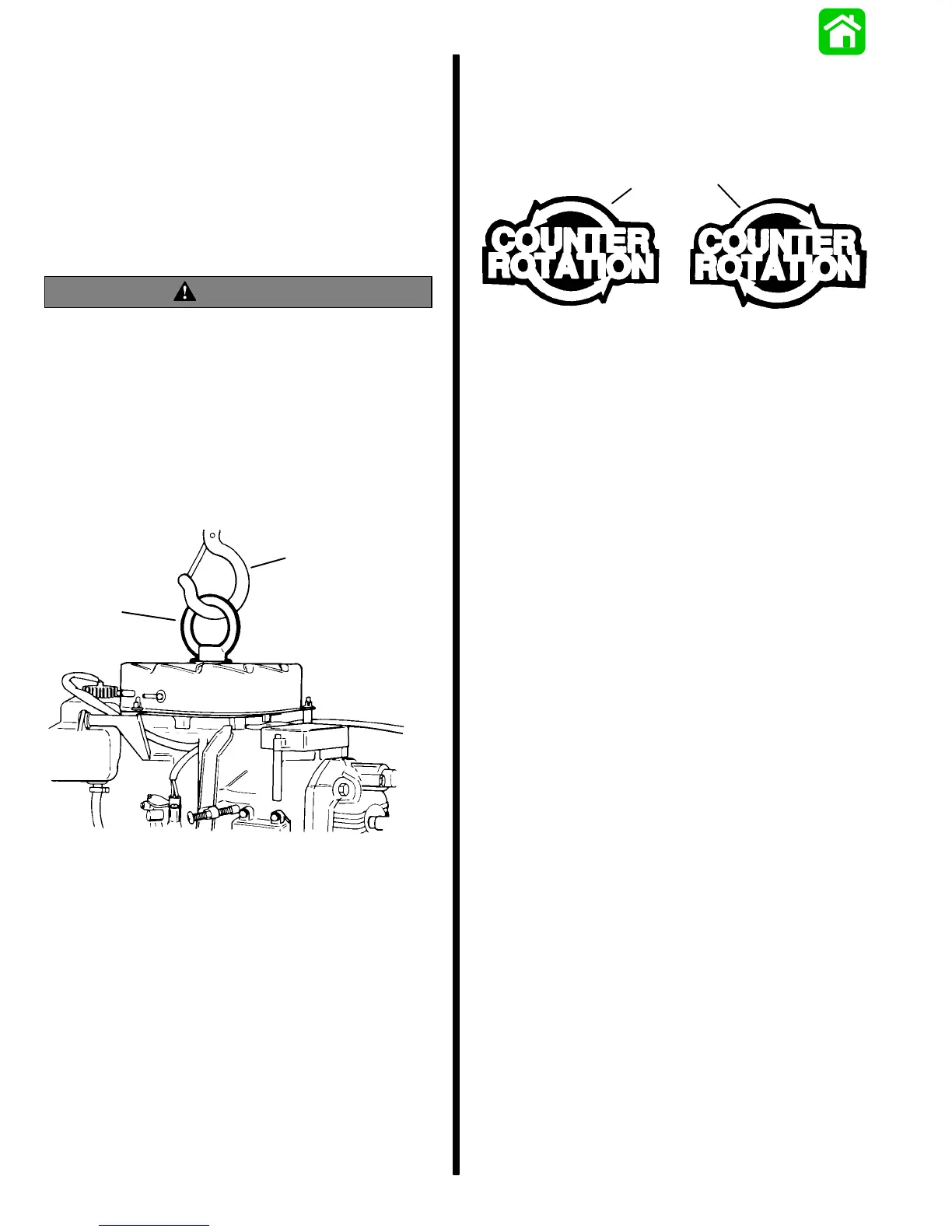

Remove cowling from outboard and plastic cap from
center of flywheel. Thread lifting eye (a) into flywheel
hub a minimum of 5 turns. Replace plastic cap after
installation. Connect hoist [minimum lift capacity of
500 Ibs. (227 kg)] to lifting eye (a). Lift outboard and
place on boat transom.
a
b
50048
a - Lifting Eye (91-90455)
b - Hoist
IMPORTANT: For dual outboard counter rotation
installations, the left-hand rotation outboard is
generally placed on the port side of boat
transom.
Apply “COUNTER ROTATION” decal (supplied with
left hand rotation outboard) onto bottom cowl (rear)
of right hand rotation outboard. Match decal
placement with left hand rotation outboard.
a
b
a - Counter Rotation Decal (Left-Hand Rotation Outboard)
b - Counter Rotation Decal (Right-Hand Rotation Outboard)
