90-824052R3 JUNE 2002 MID-SECTION - 5B-33

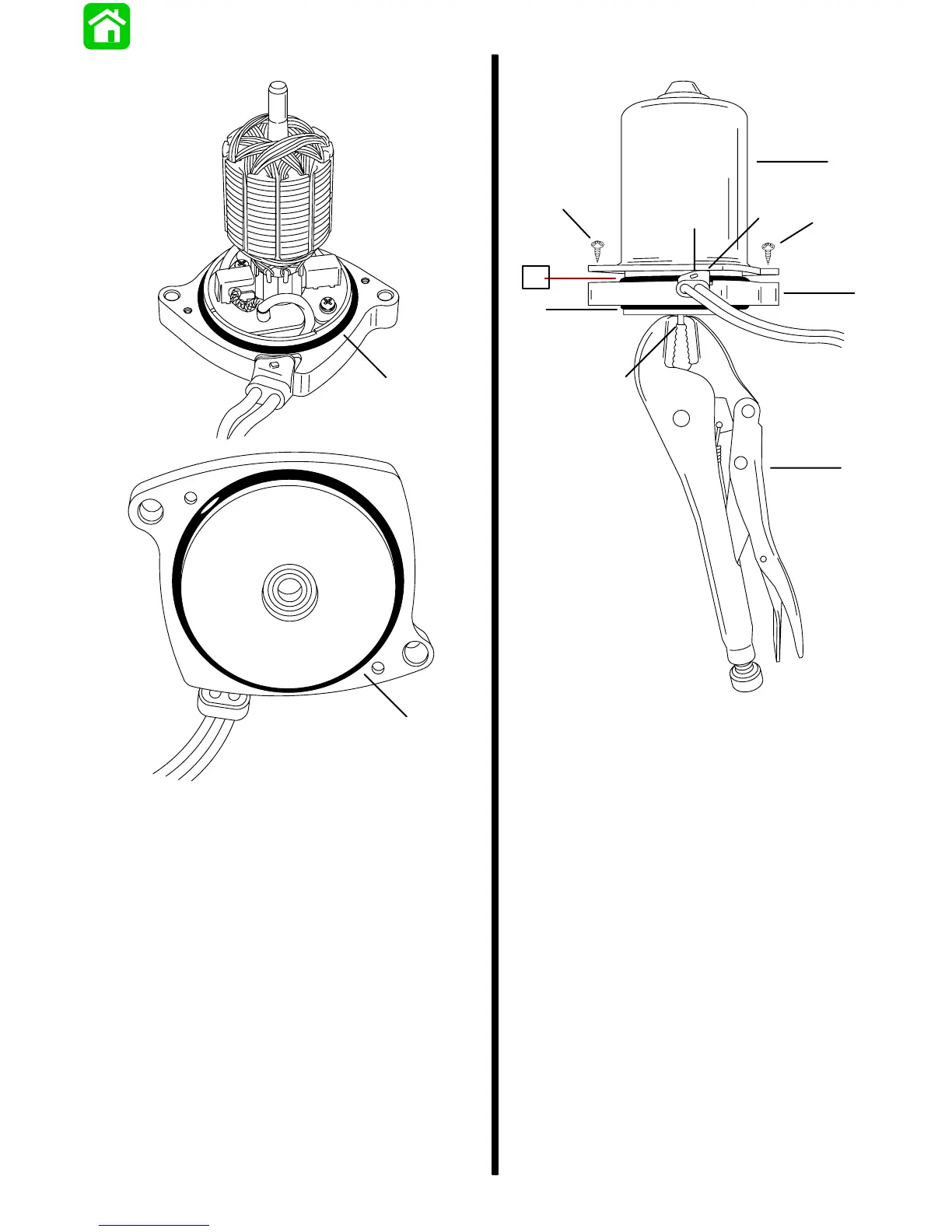

2. Install O-rings in end cap.
53784
a
53783
a
a - O-rings
IMPORTANT: Attach Vise Grip pliers to
armature shaft before installing frame assembly.
The Vise Grip pliers will prevent the armature
from being drawn out of the brush card assembly
by the frame magnets while installing the frame
assembly.
3. Install Vise Grip pliers on armature shaft.
4. Carefully install frame assembly over armature.
5. Position harness retainer hole over tab in end
cap.
6. Secure frame assembly to end cap with 2 screws.
53776
i
g
c
b
a
d
i
f
h
e
a - Vise Grip Pliers
b - Armature Shaft
c - O-ring
d - End Cap
e - Harness Retainer
f - Retainer Hole
g - O-ring
h - Frame Assembly
i - Screws
Reassembly - Motor and Pump
NOTE: Drive shaft is a loose part and may fall out of
position.
1. Install pump onto power trim manifold. Insure
O-rings are in proper locations. Secure with two
(2) screws. Torque screws to 80 lb. in. (9 N·m).
To Next Page
