3C-44 - FUEL SYSTEMS 90-824052R3 JUNE 2002

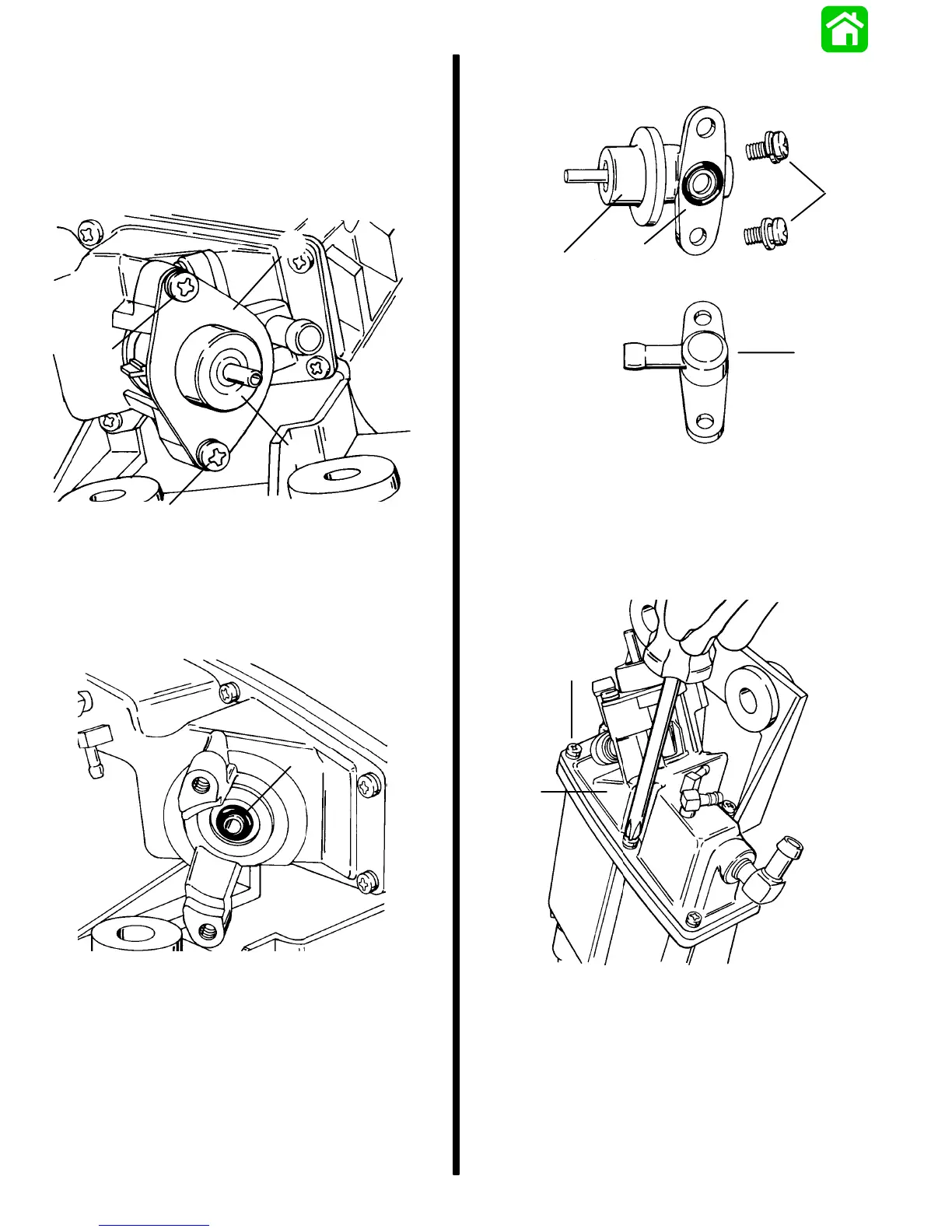

Vapor Separator Disassembly

PRESSURE REGULATOR REMOVAL AND

DISASSEMBLY

1. Remove screws, plate and grommet. Then

remove regulator assembly.

51792

a - Screws

b - Plate

c - Regulator

2. Remove O-ring.

51719

a - O-Ring

3. Remove screws and regulator fitting from

regulator. Then remove O-ring from regulator.

51794

a - Screws

b - Regulator Fitting

c - Regulator

d - O-ring

VAPOR SEPARATOR FLOAT REMOVAL

1. Remove screws and cover.

51794

a - Screws

b - Cover
