3B-42 - FUEL SYSTEMS 90-824052R3 JUNE 2002

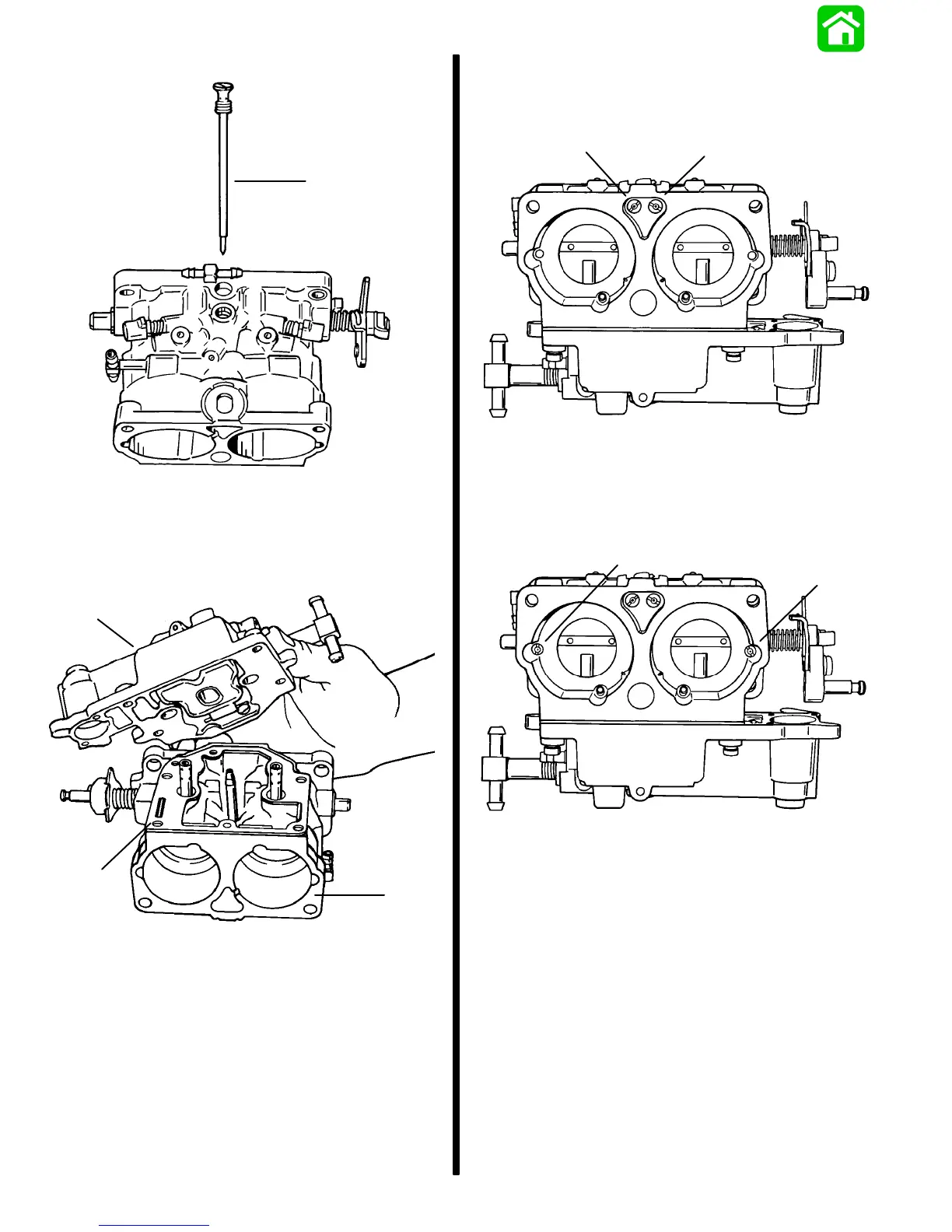

5. Install emulsion tube to carburetor.

51862

a - Emulsion Tube

6. Install gasket and fuel bowl to carburetor body

Secure in place with five retained screws.

51861

a - Gasket

b - Fuel Bowl

c - Carburetor Body

Carburetor Jet Installation

1. Install idle air jet and back draft vent jet (if

equipped) to carburetor body.

51861

a - Idle Air Jet

b - Back Draft Jet

2. Install off-idle air jets to carburetor body.

51861

a - Off-Idle Jets
