3C-40 - FUEL SYSTEMS 90-824052R3 JUNE 2002

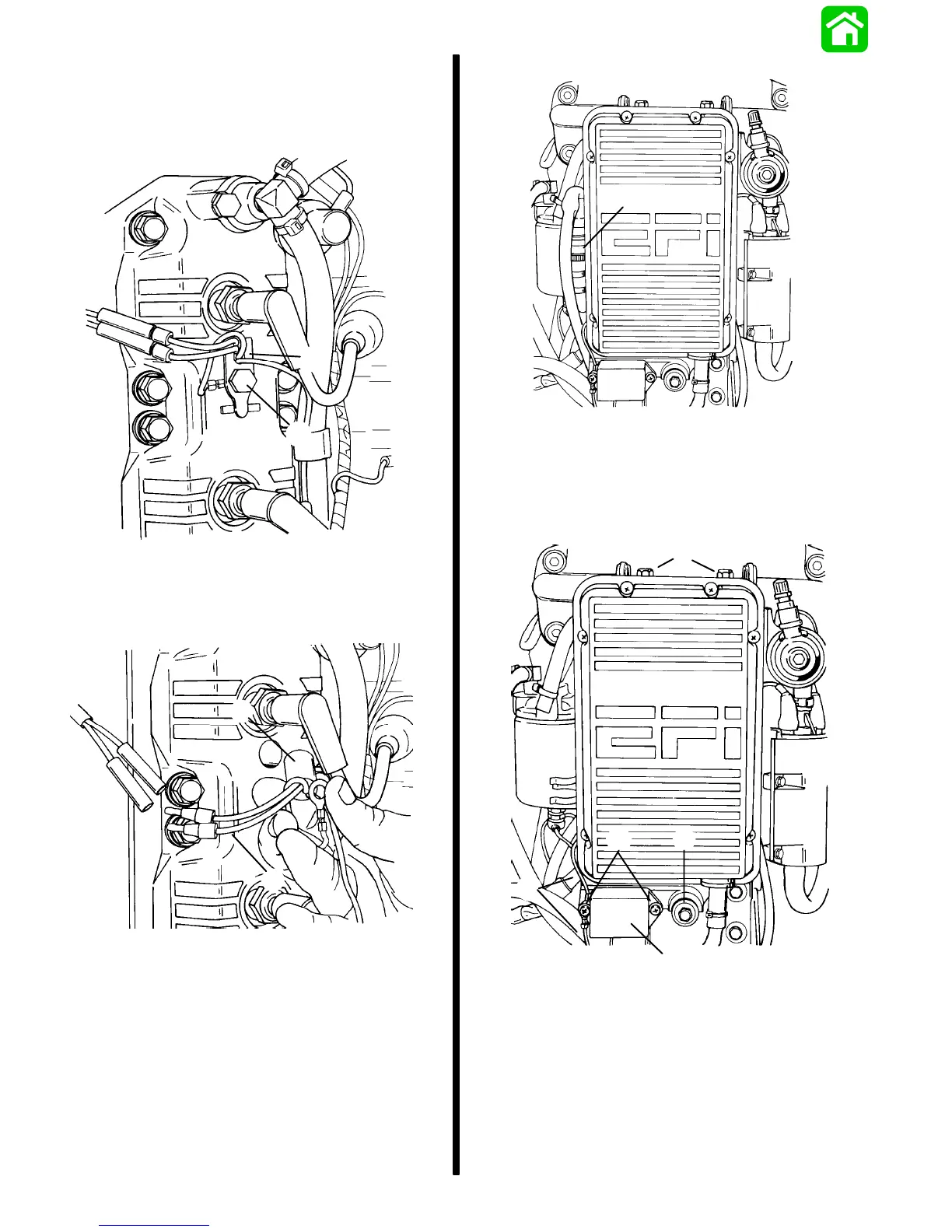

Engine Head Temperature

Sensor Removal

1. Remove screw and retaining plate.

51785

a - Screw

b - Retaining Plate

2. Disconnect wires and remove sensor.

51785

a - Wires

b - Sensor

EFI Induction Manifold

Removal

IMPORTANT: Remove battery cables from bat-

tery before Induction Manifold Removal and Dis-

assembly.

1. Disconnect ECM at harness connector.

51793

a - Connector

2. Remove screws (b) and ground wires (c).

3. Remove water sensing module (d).

4. Remove nuts (e) and screw (f).

51793

b - Screws

c - Ground Wires

d - Water Sensing Module

e - Nuts

f - Screw
